NEW HACO HSLX 12 X 1/2

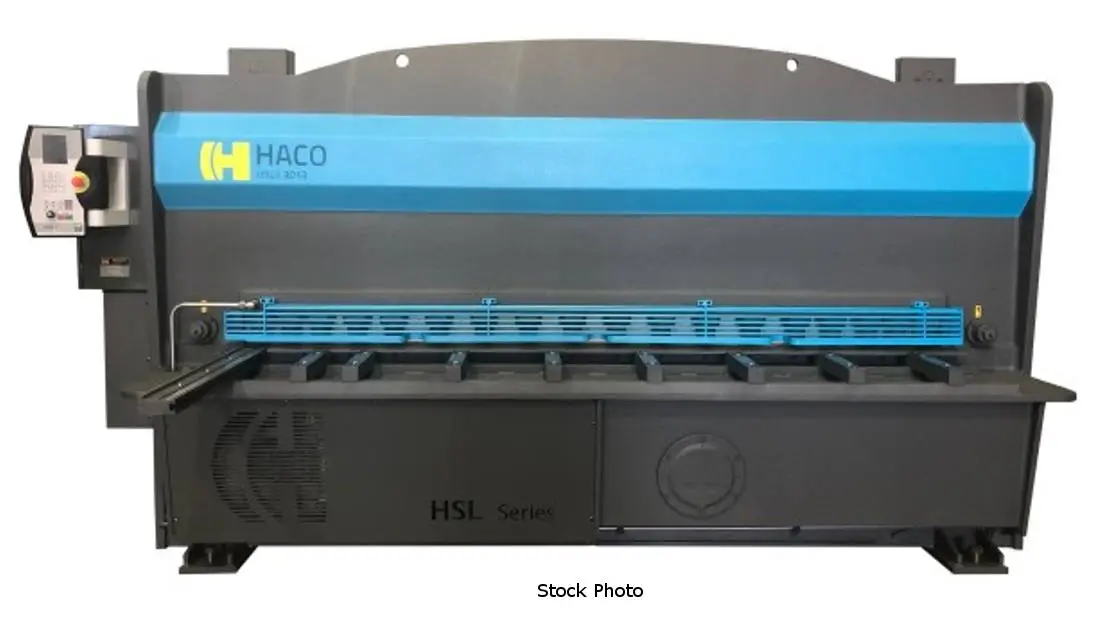

HACO (NEW) MODEL HSLX 12 X 1/2 HYDRAULIC
GUILLOTINE SQUARING SHEAR

147" CUTTING LENGTH
1/2" MILD STEEL CAPACITY
80,000 PSI
0.5 TO 3 DEGREE CUTTING ANGLE
20 HOLD DOWNS
11 STROKES PER MINUTE FOR SMALL ANGLE
7 STROKES PER MINUTE FOR BIG ANGLE
41" WORKING HEIGHT
87" WIDTH WITHOUT CE SAFETY FENCES
146" WIDTH WITH CE SAFETY FENCES
30 HP MOTOR POWER

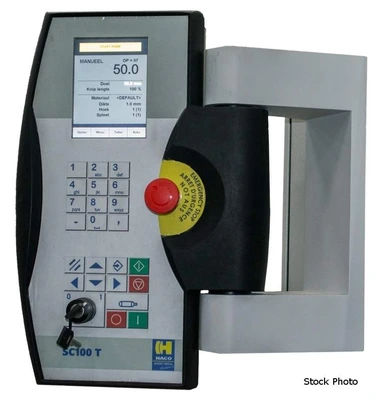

SC100T SHEAR CONTROL WITH TOUCH SCREEN
- 5.7" LCD DISPLAY AND TOUCH SCREEN
- 500 PROGRAMS (WITH 255 STEPS)
- MATERIALS LIST - 32 MATERIALS
- ELECTRO-HYDRAULIC BLADE GAP SETTING
- STROKE CONTROL ADJUSTMENT (CUTTING LENGTH)
- AUTOMATIC PROGRAMMABLE RETRACTION OF BACK GAUGE
- BACKLASH COMPENSATION, DELAYED SHEET RELEASE
- INCH/METRIC MODE SELECTION
- PRESET COUNTER WITH 0-STOP
- USB INTERFACE
- AUTOMATIC OR MANUAL PROGRAMMING MODES

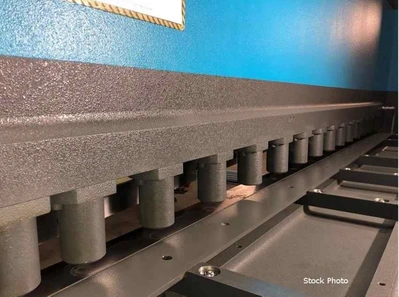

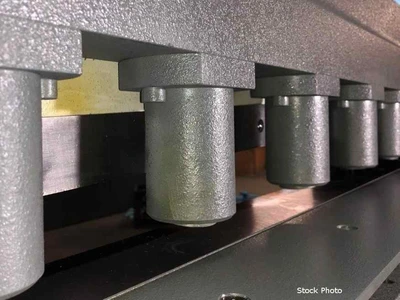

SOFT PADDED HOLD DOWNS

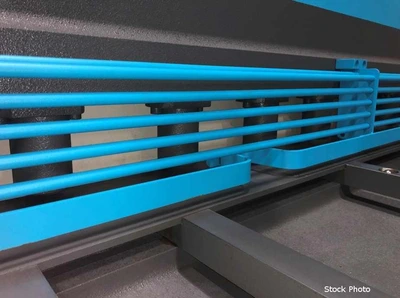

TYPE II FINGER PROTECTION WITH HAND GAPS
20" PLATE SUPPORT WITH 2 BALL TRANSFER UNITS
60" SQUARING ARM WITH 4 BALL TRANFER UNITS
CUTTING LINE ILLUMINATION WITH WIRE
SET OF STAINLESS STEEL BLADES

OPTIONS AVAILABLE - PRICE ON REQUEST
- SWING-AWAY BACKGAUGE
40" STROKE
2.1"/SEC BALL SCREW SPINDLES
- SQUARING ARMS
- FRONT SUPPORT ARMS
- BALL TRANSFERS IN THE IRON TABLE BLOCKS
- PROTRACTOR FOR ANGLE SHEARING
- HAND SAFETY GUARD AND SAFETY LIGHT CURTAINS
- SAFETY FENCES AND LIGHT BEAMS
- DIFFERENT BACK GAUGE TYPES
- HYD SHEET SUPPORT SYS FOR CUTTING THIN MATERIAL
- CONVEYING AND STACKING SYSTEMS
