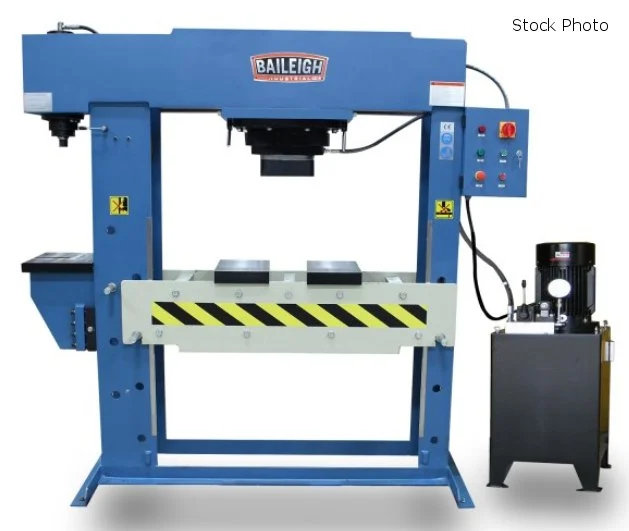

NEW BAILEIGH HSP-200M-C

BAILEIGH (NEW) MODEL HSP-200M-C 2-STATION
HYDRAULIC PRESS

2 STATIONS
- 200 TON CAPACITY - MAIN

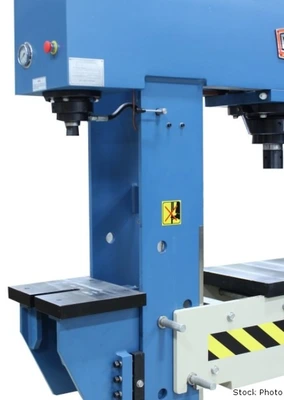

- 20 TON HYDRAULIC ARBOR PRESS ATTACHMENT - SIDE

0.154"/SECOND WORKING SPEED
48" WORKING WIDTH
0.228"/SECOND RETURN SPEED
6.125" PISTON HEAD DIAMETER - MAIN (1.77" SIDE)
11" CYLINDER DIAMETER - MAIN (3.95" SIDE)
11.8" CYLINDER STROKE - MAIN (11.75" SIDE)
8.11" TO 32.01" FROM TABLE TO RAM - MAIN
9.84" TO 38.97" FROM TABLE TO RAM - SIDE
32 GALLON OIL CAPACITY
4 GAL/MIN PUMP SPEED
10 HP, 220 VOLT, 3 PHASE

FEATURES
- STAND-ALONE HYD SYSTEM WITH PISTON-STYLE PUMP

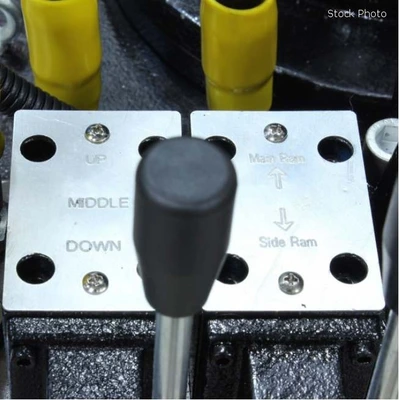

- CYLINDER CAN MOVE LEFT RIGHT FOR OFF-CENTER
PROJECTS
- PRESSURE GAUGE
- 2-PIECE V-BLOCK SET
- 1 YEAR PARTS WARRANTY
- LIFETIME TECHNICAL PHONE SUPPORT
Power: 220 (3-Phase)
