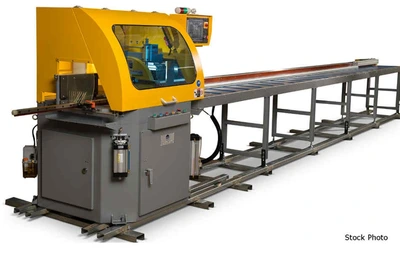

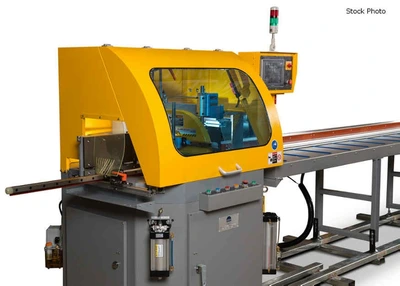

NEW PAT MOONEY PMI-24 CNC

PAT MOONEY (NEW) MODEL PMI-24 CNC FULLY AUTOMATIC
UPCUT SAW WITH 21.5' PUSHER SYSTEM

CUTS ALUMINUM EXTRUSIONS, PROFILES, AND OTHER
NON-FERROUS MATERIALS (COPPER, BRASS, PLASTICS)

24" X 1" BORE SAW BLADE
2000 RPM SPINDLE SPEED
10 HP SAW MOTOR
29-1/2" WORK TABLE HEIGHT

PUSHER SYSTEM
- 400 W SERVOMOTOR (FEED SYSTEM)
- 21.5' AUTOMATIC FEED LENGTH
- 110 LB PUSHING WEIGHT
- 65 TO 165 FPM PUSHER POSITIONING SPEED

7" TOUCHSCREEN CONTROL
- USER FRIENDLY
- CAN STORE UP TO 100 CUTOFF PROGRAMS

CUTTING CAPACITY AT 90 DEGREES
- 7.873" ROUND
- 7.873" SQUARE
- 6.613" X 9.448" RECTANGLE
- 7.086" X 5.668" RECTANGLE
- 0.471" X 15.875" RECTANGLE

EQUIPPED WITH
- TOOL KIT
- KANEFUSA 120T SAW BLADE
- OPERATING MANUAL
- 10' OUTFEED CONVEYOR

MACHINE FEATURES
- STRONG DRIVE SYSTEM
MAXIMUM CUTTING FORCE AND CHIP REMOVAL EXTENDS
THE LIFE OF THE SAW BLADE BETWEEN REGRINDS

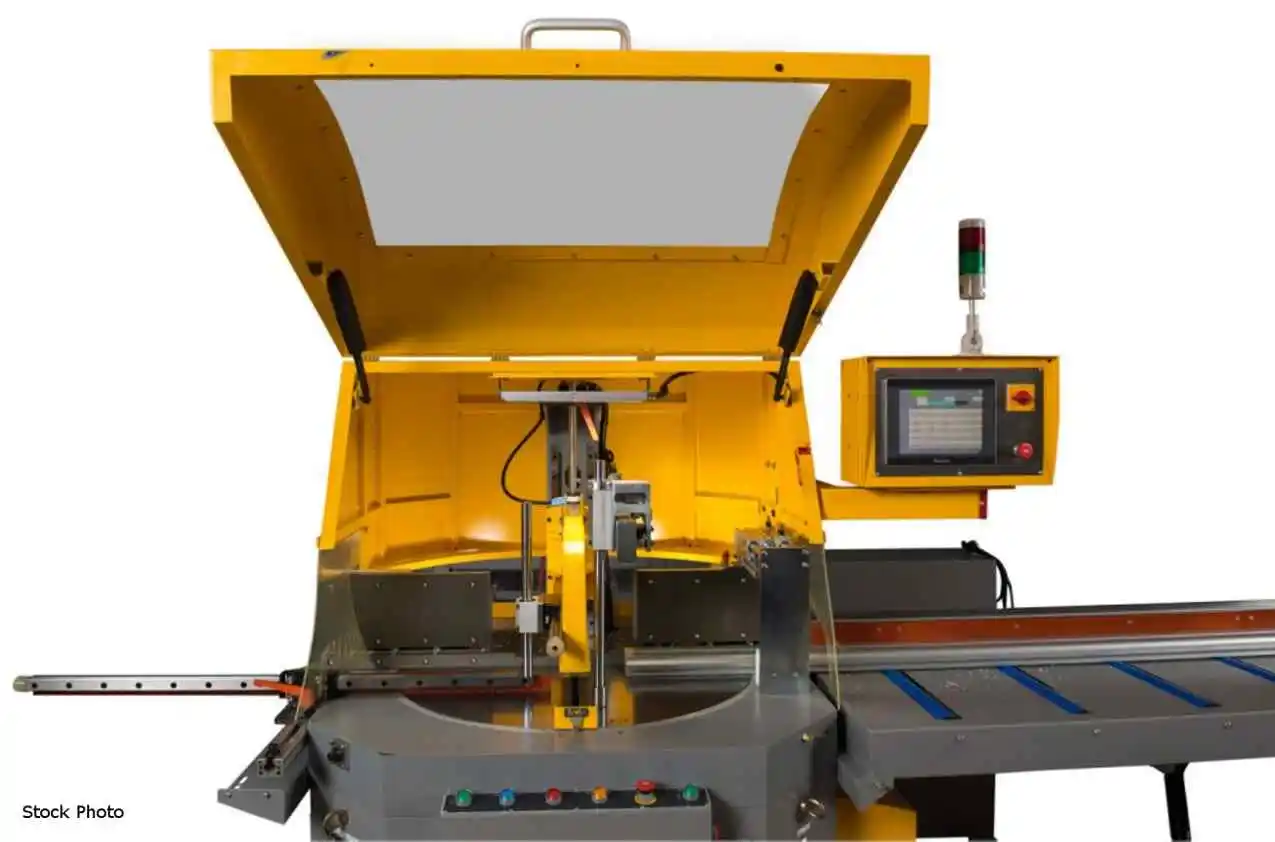

- UPCUT DESIGN AND SAW BLADE CHAMBER
SAW BLADE HOUSED UNDER THE WORK TABLE
BLADE TRAVELS UP THROUGH THE WORK PIECE
SAFETY - LESS BLADE EXPOSED DURING CUT
CHIP REMOVAL
LONGER BLADE LIFE
- PRECISION GROUND WORK TABLE COATED W/CHROMATE
PREVENTS MARRING OF THE WORK PIECE
- PNEUMATIC CLAMPING SYSTEM
ADJUSTABLE CLAMP PRESSURE PREVENTS DISTORTION
CLAMP HOLDS WORK PIECE ON BOTH SIDES OF BLADE
BURR-FREE CUTOFF PART
FRICTION CLAMP ON INFEED SIDE
HORIZONTAL CLAMP ON OUTFEED SIDE
- FULL CONTROL OF THE FEED RATE
AIR OVER OIL FEED SYSTEM
ACCURATE CUTS
LONG BLADE LIFE
- PRECISE MICRO-DRIP BLADE LUBRICATION SYSTEM

SAFETY FEATURES
- MACHINE ENCLOSURE MONITORED BY LIMIT SWITCH
- COVER MUST BE CLOSED FOR SAW TO CYCLE
- TWO-HAND CYCLE START ACTIVATION
- LIMIT SWITCH SHUTS DOWN MACHINE IF OPEN DOOR

OPTIONS AVAILABLE - PRICE ON REQUEST
- CHIP COLLECTION SYSTEM
- EXTRA SAW BLADE - 120 TEETH KANEFUSA
