NEW GEKA USA PUMA 110S

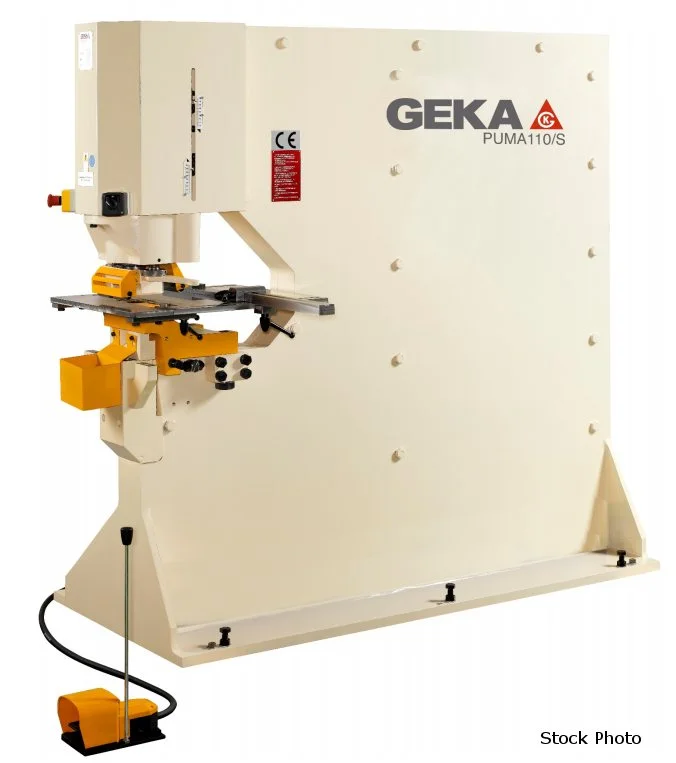

GEKA (NEW) MODEL PUMA 110S PUNCHING MACHINE

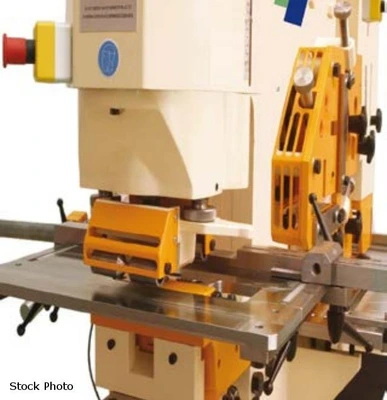

PUNCHING STATION
- 120 TON CAPACITY
- 1-1/2" DIAMETER IN 3/4"
- 1-1/4" DIAMETER IN 1"
- 1-9/16" DIAMETER ROUND PUNCH
- 19-5/8" THROAT
- 39" WORKING HEIGHT
- 2-STAGE FOOT PEDAL (LOW PRESSURE ON 1ST STAGE)
- STEEL GUARDS WITH SLOTS AND ROLLERS
- EMERGENCY STOP
- PUNCHES
8/31 FOR UP TO 1-3/16" DIAMETER
8/32 FOR UP TO 1-1/4" DIAMETER
8/40 FOR UP TO 1-9/16" DIAMETER
- DIES
NO 5 FOR UP TO 1-1/4" DIAMETER
NO 10 FOR UP TO 1-9/16" DIAMETER
- WHEN PUNCHING LARGE U, I AND T PROFILES
CAN REMOVE GOOSE NECK DIE BLOCK WITH SUPPORTS
CAPACITY IS REDUCED TO 60 TONS
- GAUGING TABLE WITH INLAID INCH SCALES
- FRONT TO BACK ADJUSTMENT ON ROLLERS
- PUNCH SLAG BUCKET
- FULL STROKE OR JOG MODE FOR INCHING OF THE TOOL
W/AUTO RETURN WHEN LOWER LIMIT SWITCH IS TRIGGERED
- GIBBED AND GUIDED PUNCHING CYLINDER FOR TOOL
ALIGNMENT
- QUICK-CHANGE PUNCH HOLDER

FEATURES
- 1-CYLINDER OPERATION WITH REMOTE FOOT PEDAL
- MAGNETIC WORK LIGHT
- 10 SETS (YOU CHOOSE) FROM 1/8" TO 1-1/4" ROUND
WITH 1/32" CLEARANCE
- TOOL KIT WITH OPEN-END WRENCH, SPANNER WRENCH,
HEX KEYS, PUNCH HOLDERS, DIE REDUCER DIE RISER
- MANUAL AND PARTS LIST

12 HP, 3 PHASE
200-208, 220-250, OR 440-500 VOLTS

OPTIONS AVAILABLE - PRICE ON REQUEST
- PUNCHES
- DIES
Power: 208/220/440 (3-Phase)
