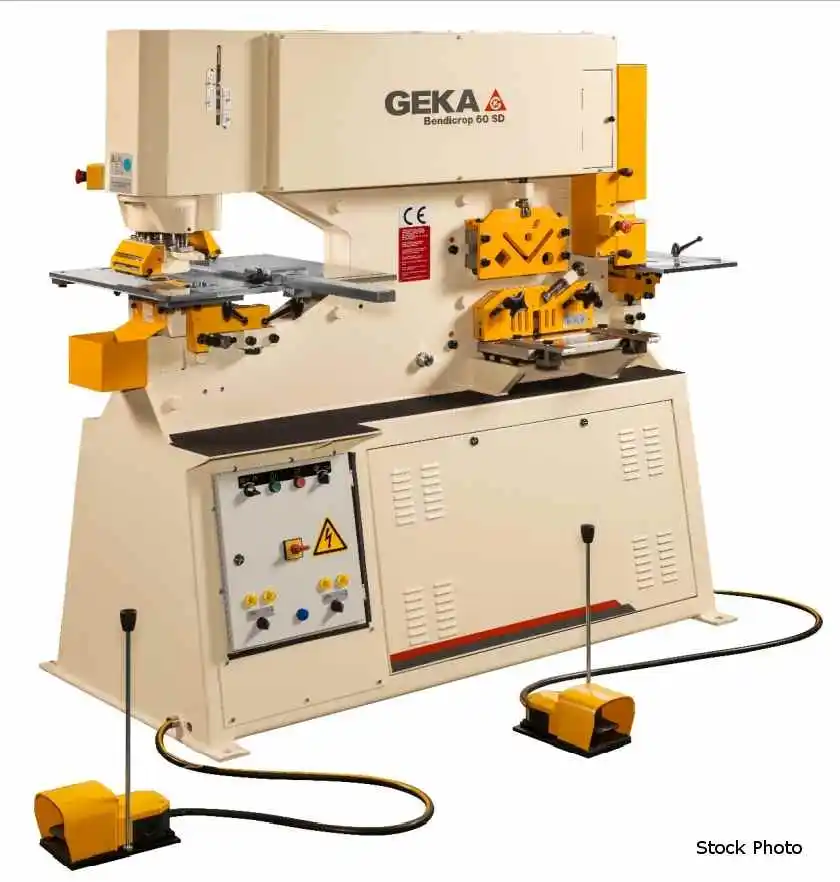

NEW GEKA USA 60SD

GEKA (NEW) MODEL BENDICROP 60SD UNIVERSAL
IRONWORKER WITH 5 WORK STATIONS

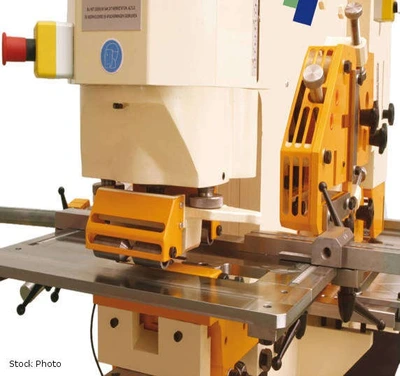

PUNCHING STATION
- 67 TON CAPACITY
- 1-1/2" DIAMETER IN 3/8"
- 1-1/4" DIAMETER IN 1/2"
- 1-9/16" DIAMETER ROUND PUNCH
- 20" THROAT
- 41-3/4" WORKING HEIGHT
- 2-STAGE FOOT PEDAL W/LOW PRESSURE ON 1ST STAGE
- STEEL GUARDS WITH SLOTS AND ROLLERS
- EMERGENCY STOP
- PUNCHES
8/31 FOR UP TO 1-3/16" DIAMETER
8/32 FOR UP TO 1-1/4" DIAMETER
8/40 FOR UP TO 1-9/16" DIAMETER
- DIES
NO 5 FOR UP TO 1-1/4" DIAMETER
NO 8 FOR UP TO 1-9/16" DIAMETER
- WHEN PUNCHING LARGE U, I AND T PROFILES
CAN REMOVE GOOSE NECK DIE BLOCK WITH SUPPORTS
CAPACITY IS REDUCED TO 30 TONS
- GAUGING TABLE WITH INLAID INCH SCALES
- FRONT TO BACK MOVEMENT ON ROLLERS
- PUNCH SLAG BUCKET
- FULL STROKE OR JOG MODE FOR INCHING OF THE TOOL
W/AUTO RETURN WHEN LOWER LIMIT SWITCH IS TRIGGERED
- GIBBED AND GUIDED PUNCHING CYLINDER
- QUICK-CHANGE PUNCH HOLDER

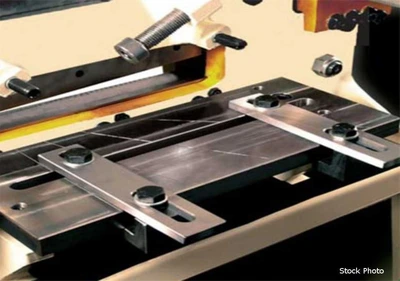

FLAT SHEARING STATION
- 34" WORKING HEIGHT
- 14" BLADE
- 14" X 3/8" AT 2.5 DEGREE RAKE ANGLE
- 14" X 9/16" AT 5 DEGREE RAKE ANGLE
- MITERING GRADUATIONS INSCRIBED IN THE TABLE
- 2 ADJUSTABLE GUIDE BARS
- MANUAL HOLD DOWN WITH ACCESS FOR SHEARING LEGS
OF ANGLES
- ANTI-TWIST DEVICE FOR FLATTER SHEARED PIECES

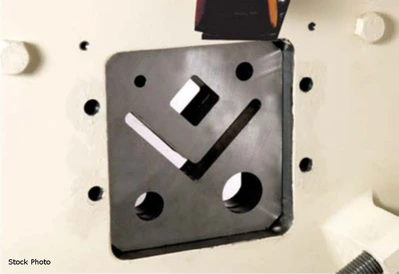

ANGLE AND SECTIONS SHEARING STATION
- 93 TON CAPACITY
- 42-1/2" WORKING HEIGHT
- 4" X 4" X 1/2" CAPACITY
- OPENINGS FOR 7/8" 1-1/2" ROUND
- OPENING FOR 1-1/2" SQUARE
- CAN SHEAR BOTH LEGS OF ANGLE AT THE SAME TIME
- "NON-DEFORM CUT" WITH NO MATERIAL LOSS

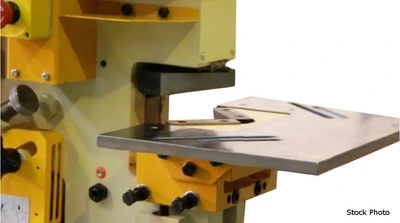

NOTCHING STATION - TRIANGULAR
- 4" WIDE PER SIDE
- 3/8" THICK
- 40" WORKING HEIGHT
- GAUGING TABLE WITH INLAID INCH SCALES
- SECTION IS PROTECTED WITH A HINGED GUARD
- EMERGENCY STOP

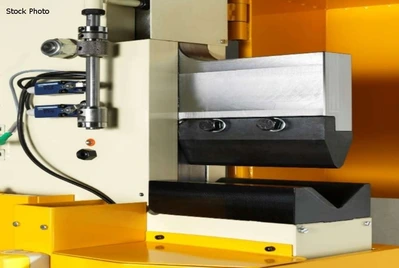

BENDING STATION
- 51-3/8" WORKING HEIGHT
- 3/8" THICKNESS CAPACITY
- 6" DEPTH
- 1-9/16" AND 2-3/4" VEE DIES
- EASY CHANGE OF LOWER DIE (WITH NO TOOLS)
- MICROMETER FINE ADJUSTMENT OF STROKE DEPTH
- FOOT PEDAL WITH SAFETY SYSTEM
- SECTION IS PROTECTED WITH A HINGED GUARD

FEATURES
- 2-CYLINDER OPERATION AND 2 REMOTE FOOT PEDALS
SIMULTANEOUS SHEARING AND PUNCHING
- 40" AUTOMATIC CUT-TO-LENGTH STOP
- 10 SETS (YOU CHOOSE) FROM 1/8" TO 1-1/4" ROUND
WITH 1/32" CLEARANCE
- TOOL KIT WITH OPEN-END WRENCH, SPANNER WRENCH,
HEX KEYS, GREASE GUN AND PUNCH HOLDERS
- MANUAL AND PARTS LIST

7.5 HP, 3 PHASE
200-208, 220-250, OR 440-500 VOLTS

OPTIONS AVAILABLE - PRICE ON REQUEST
- PUNCH ATTACHMENTS UP TO 4" AND 6"
- 5/27 PUNCH
- RECTANGULAR NOTCHER WITH GAUGING TABLE
- PIPE NOTCHER
- NOTCHER PUNCHING UNIT WITH GAUGING TABLE
- BENDING - 20" FLIP STOP W/2 RETRACTABLE STOPS
Power: 208/220/440 (3-Phase)
