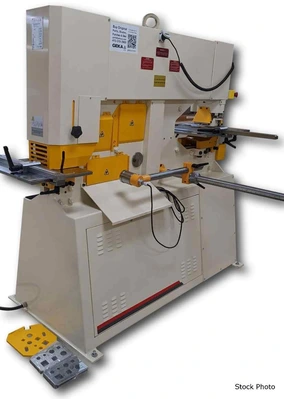

NEW GEKA USA HYDRACROP 55SD

GEKA (NEW) MODEL HYDRACROP 55SD UNIVERSAL
IRONWORKER WITH 5 WORK STATIONS

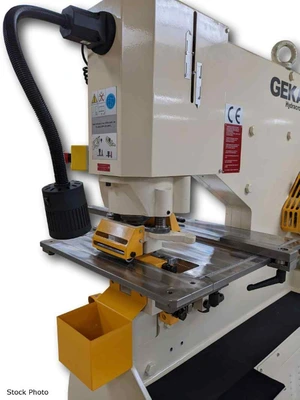

PUNCHING STATION
- 60 TON CAPACITY
- 1-1/2" DIAMETER IN 3/8"
- 1-1/4" DIAMETER IN 1/2"
- 1-9/16" DIAMETER ROUND PUNCH
- 20" THROAT
- 41-3/4" WORKING HEIGHT
- 2-STAGE FOOT PEDAL (LOW PRESSURE ON 1ST STAGE)
- STEEL GUARDS WITH SLOTS AND ROLLERS
- EMERGENCY STOP
- PUNCHES
8/31 FOR UP TO 1-3/16" DIAMETER
8/32 FOR UP TO 1-1/4" DIAMETER
8/40 FOR UP TO 1-9/16" DIAMETER
- DIES
NO 5 FOR UP TO 1-1/4" DIAMETER
NO 8 FOR UP TO 1-9/16" DIAMETER
- WHEN PUNCHING LARGE U, I AND T PROFILES
CAN REMOVE GOOSE NECK DIE BLOCK WITH SUPPORTS
CAPACITY IS REDUCED TO 30 TONS
- GAUGING TABLE WITH INLAID INCH SCALES
- FRONT TO BACK MOVEMENT ON ROLLERS
- PUNCH SLAG BUCKET
- FULL STROKE OR JOG MODE FOR INCHING OF THE TOOL
W/AUTO RETURN WHEN LOWER LIMIT SWITCH IS TRIGGERED
- GIBBED AND GUIDED PUNCHING CYLINDER FOR TOOL
ALIGNMENT
- QUICK-CHANGE PUNCH HOLDER

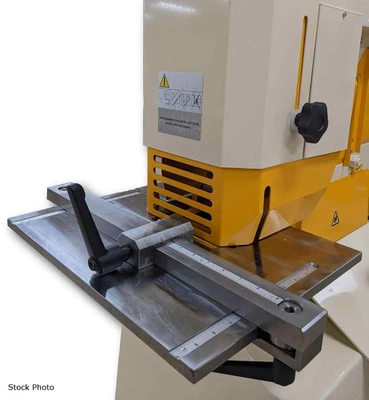

FLAT SHEARING STATION
- 34-7/8" WORKING HEIGHT
- 12" BLADE
- 12" X 5/8" OR 8" X 3/4" CAPACITY
- MITERING GRADUATIONS INSCRIBED IN THE TABLE
- 2 ADJUSTABLE GUIDE BARS
- MANUAL HOLD DOWN WITH ACCESS FOR SHEARING LEGS
OF ANGLES

ANGLE SHEARING STATION
- 110 TON CAPACITY
- 45-5/8" WORKING HEIGHT
- 4" X 4" X 1/2" OR 5" X 3" X 1/2" CAPACITY
- ANGLES AT 45 DEG MITER (LEG IN) 3" X 3" X 5/16"
- CAN SHEAR BOTH LEGS OF ANGLE AT THE SAME TIME
- "NON-DEFORM CUT" WITH NO MATERIAL LOSS
- VERTICAL AND HORIZONTAL GUIDES FOR SQUARE CUTS

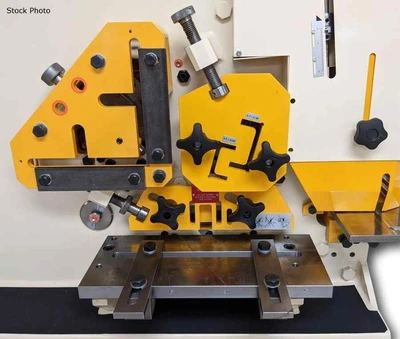

SECTION SHEARING STATION
- 68 TON CAPACITY
- BLADES FOR 3" X 4.1 LB 4" X 5.4 LB CHANNELS
- 9/16", 3/4", 1", 1-3/16" ROUND OPENINGS
- 9/16", 1", 1-3/16" SQUARE OPENINGS

NOTCHING STATION
- 1-5/8" WIDE
- 3-1/2" DEEP
- 3/8" THICK
- 36-7/8" WORKING HEIGHT
- GAUGING TABLE WITH INLAID INCH SCALES
- FRONT TO BACK MOVEMENT ON ROLLERS
- SLIDING GUARD WITH KEYED LOCK OUT FOR SAFETY
- EMERGENCY STOP

FEATURES

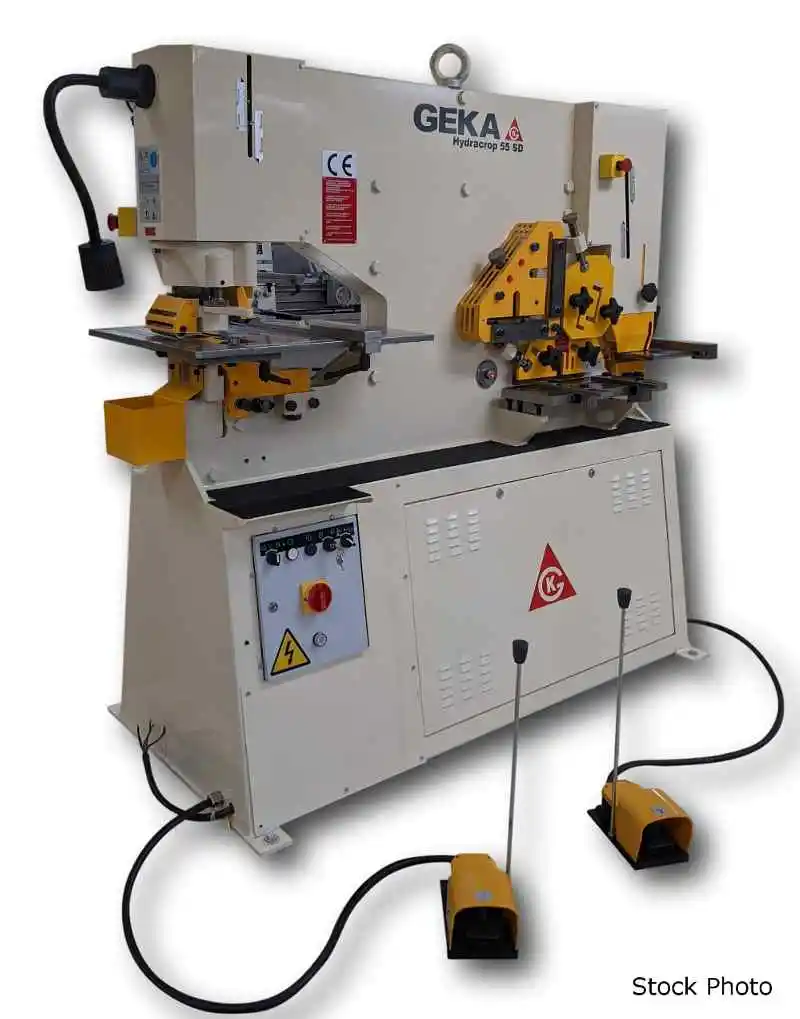

- 2-CYLINDER OPERATION AND 2 REMOTE FOOT PEDALS
SIMULTANEOUS SHEARING AND PUNCHING
- MAGNETIC WORK LIGHT
- 40" AUTOMATIC CUT-TO-LENGTH STOP
- 10 SETS (YOU CHOOSE) FROM 1/8" TO 1-1/4" ROUND
WITH 1/32" CLEARANCE
- TOOL KIT WITH OPEN-END WRENCH, SPANNER WRENCH,
HEX KEYS, GREASE GUN, PUNCH HOLDERS, DIE REDUCER,
AND DIE RISER
- MANUAL AND PARTS LIST

7.5 HP, 3 PHASE
200-208, 220-250, OR 440-500 VOLTS

OPTIONS AVAILABLE - PRICE ON REQUEST
- PUNCHING
4" AND 6" PUNCH ATTACHMENTS
PUNCHES AND DIES
- OFF-SET PUNCH AND DIE HOLDER
OFFSET 1/2" FROM CENTER LINE
13/16" DIAMETER ROUND HOLE
25 TON MAXIMUM
REQUIRES # P9 PUNCHES AND # 1 DIES
- SECTION SHEARING
5" X 6.7 LB CHANNEL
ROUNDS AND SQUARES UP TO 1-9/16"
CUSTOM PROFILES
- NOTCHING
TRIANGULAR NOTCHER WITH GAUGING TABLE
PIPE NOTCHER
PUNCHING ATTACHMENT WITH GAUGING TABLE
Power: 208/220/440 (3-Phase)
