NEW HYDMECH V-21/26APC

HYDMECH (NEW) MODEL V-21/26APC AUTOMATIC
VERTICAL MITERING BANDSAW

CAPACITY AT 90 DEGREES
- 26" X 21" RECTANGLE, 21" ROUND OR SQUARE
CAPACITY AT 45 DEGREES
- 18" X 21" RECTANGLE, 17" ROUND, 18" SQUARE
CAPACITY AT 60 DEGREES - RIGHT
- 12.5" X 21" RECTANGLE, 12" ROUND OR SQUARE
CAPACITY AT 60 DEGREES - LEFT
- 11" X 21" RECTANGLE, 11" ROUND OR SQUARE

1.5" X 19' 4" BLADE
10 HP, 480 VOLTS, 3 PHASE
TRANSFORMER AT NO CHARGE FOR
- 208, 240, 480, OR 575 VOLTS
65 - 385 SFM BLADE SPEED
7 GALLON HYDRAULIC TANK
32 GALLON COOLANT TANK
44" TABLE HEIGHT
60 DEGREES LEFT TO 60 DEGREES RIGHT MITERING
26" REMNANT LENGTH

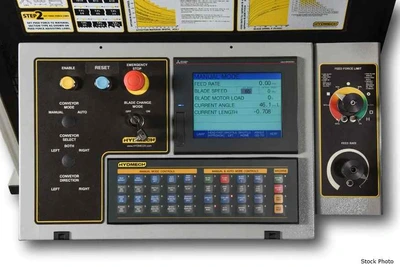

8.5" MITSUBISHI PLC COLOR TOUCH SCREEN CONTROL
- PROGRAM UP TO 1,000 JOBS WITH 20 IN QUEUE
- USER-FRIENDLY, INTERACTIVE PROGRAMMING

STANDARD MACHINE FEATURES
- 4-DEGREE CANTED HEAD
- 60" BAR FEED, LEFT SIDE
- SHUTTLE WITH AUTOMATIC MULTI-INDEXING UP TO 60"
IN 1 STROKE WITH AUTOMATIC KERF COMPENSATION
POWERED BY RACK AND PINION SERVO DRIVE
- PROGRAMMABLE MITER W/"GO TO" ANGLE FUNCTION
- HYDRAULIC HEAD TILT
- CAST IRON BAND WHEELS
- HYDRAULIC DDF SYSTEM
- 2 FULL STROKING HYDRAULIC VISES
- HYDRAULICALLY POWERED PROGRAMMABLE GUIDE ARM
- TRUE DIRECT BLADE DRIVE - NO BELTS OR PULLEYS
- BLADE CHAMBER SEPARATES MATERIAL FROM CUT PART
- HYDRAULIC CHIP CONVEYOR
- REPLACEABLE BLADE BRUSH
- ROBUST STEEL BASE
- OUT OF STOCK SWITCH
- BLADE-BREAKAGE SWITCH
- EASY ACCESS ELECTRICAL PANEL AND HYDRAULICS

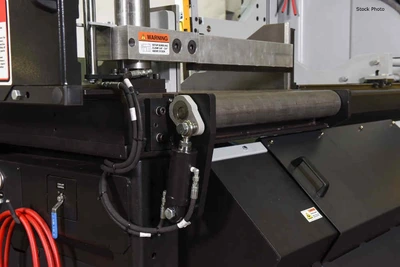

- POP-UP FEED ROLLER
- HYDRAULIC BAND TENSIONING WITH DIGITAL READOUT
- REPLACEABLE CARBIDE GUIDE INSERTS
- 3 HP HYDRAULIC PUMP FOR SYSTEM PRESSURE

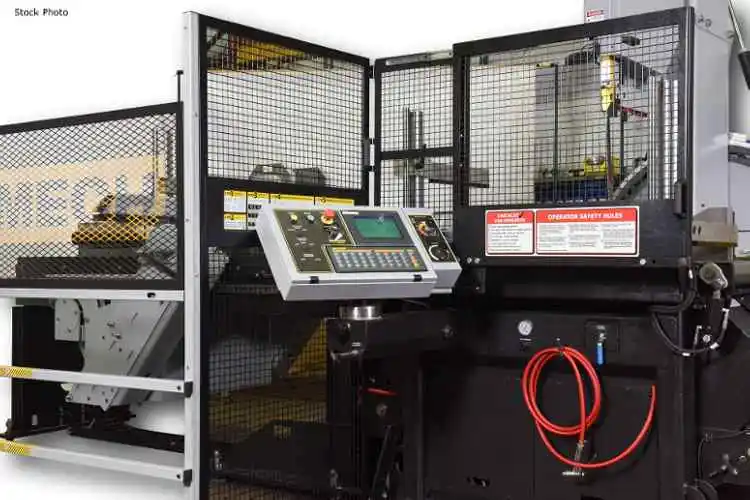

- SAFETY DOOR INTERLOCKS
- FLOOD COOLANT WITH WASH DOWN HOSE
- LASER LIGHT
- WORK LIGHT
- VARIABLE VISE PRESSURE

OPTIONS AVAILABLE - PRICE ON REQUEST
- CHIP BUCKET WITH PUMP
- FULL CAPACITY HYDRAULIC OVERHEAD BUNDLING
- MIST LUBRICATION
- TALL SQUARE VISE INSERTS
- OUT FEED VISE
- OUT FEED VISE BUNDLING
- RIGHT SIDE INFEED SHUTTLE
- 10' SHUTTLE INFEED
- BRIDGE/INTERFACE BRACKET
- POWERED BRIDGE/INTERFACE BRACKET
- IDLER CONVEYORS
- POWERED CONVEYORS
- POWER TRANSFORMER FOR 208 OR 240 VOLTS

- THIS SAW REQUIRES AIR RIDE TRAILER FOR TRANSPORT
Power: 480 (3-Phase)
