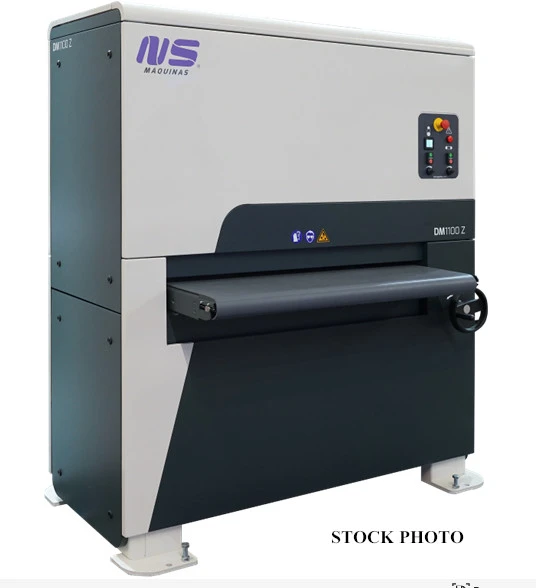

NEW NS MAQUINAS DM1100 Z

NS MAQUINAS (NEW) MODEL DM1100 Z DROSS REMOVAL
AND GRAINING MACHINE

1 WIDE BELT HEAD TO REMOVE BURRS GRAIN SURFACES

CONSISTENT LINEAR FINISH AND BRIGHTER SHINE ON
STAINLESS STEEL, STEEL, OR ALUMINUM PARTS CUT BY
LASER, PUNCHING OR SHEARING

NOTE: ALUMINUM CANNOT BE MIXED W/OTHER MATERIALS

26 TO 72 FEET/SECOND VARIABLE SANDING BELT SPEED
43.3" WORKING WIDTH
4.75" MAXIMUM MATERIAL THICKNESS
2" X 2" MINIMUM PART SIZE
5 - 23 FEET/MINUTE VARIABLE FEED RATE (INVERTER)
7.1" DIAMETER CONTACT ROLLER (55 SHORE)
43.3" X 72.8" BELT
6" DUST EXTRACTION FLANGE

5 HP CONVEYOR MOTOR
15 HP SANDING BELTS MOTOR

FEATURES
- VARIABLE SPEED CONVEYOR AND ABRASIVE BELT - CAN
CLEAN EDGES FROM DROSS AT SLOW FEED RATES
APPLY SURFACE FINISH AT HIGH SPEEDS

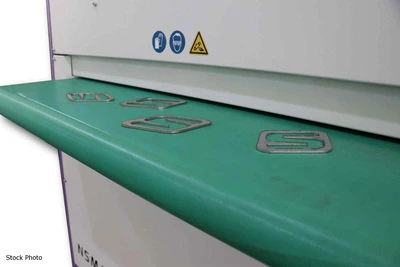

- HIGH FRICTION CONVEYOR BELT FOR SMALL PARTS
- CONTACT ROLLER / ABRASIVE BELT
FINE ADJUSTMENT FOR DIFFERENT BELT THICKNESSES

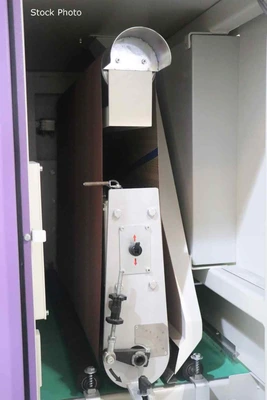

QUICK BELT REPLACEMENT WITH PNEUMATIC TENSIONING
ABRASIVE BELT AUTOMATIC OSCILLATION AND TRACKING
SPRING-LOADED PRESSURE ROLLERS KEEP PART IN PLACE

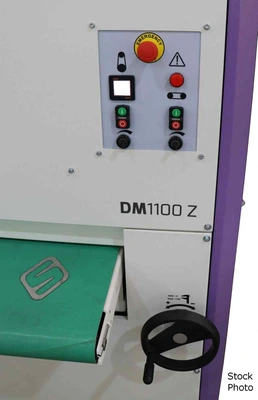

- CONTROL PANEL
SIMPLE, INTUITIVE DESIGN
ON/OFF FOR CONVEYOR AND ABRASIVE BELTS
POTENTIOMETERS TO ADJUST FEED RATE AND BELT SPEED
DIGITAL AMMETER TO MONITOR ABRASIVE BELT LOAD
SET PART THICKNESS WITH TOUCH PANEL OR HAND WHEEL

INCLUDED WITH BASE MACHINE:
- HIGH FRICTION CONVERYOR BELT
- VARIABLE ABRASIVE BELT SPEED (INVERTER)
- VARIABLE CONVEYOR FEED RATE (INVERTER)
- ON-SITE TRAINING
(TRAVEL EXPENSES BILLED SEPERATELY)

OPTIONS AVAILABLE - PRICE ON REQUEST
- TRANSFER CONVEYOR TABLE AT MACHINE EXIT TO

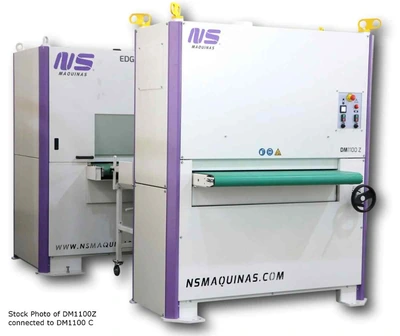

CONNECT WITH A DM1100 C MACHINE

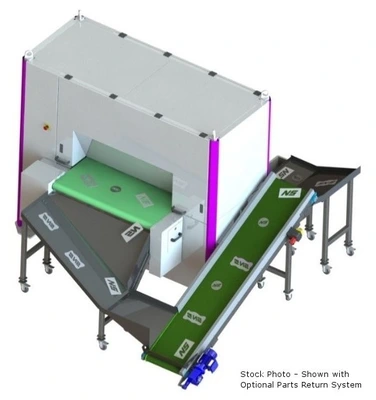

- RETURN CONVEYOR FOR SMALL PARTS
- DUST COLLECTOR - WET - 1800 CFM
- DUST COLLECTOR - DRY - 2500 CFM
Power: 480 (3-Phase)
