| Dimensions | 209 X 64 X 70 | 209 X 64 X 70 |
| Weight | 12,100 | 12,100 |

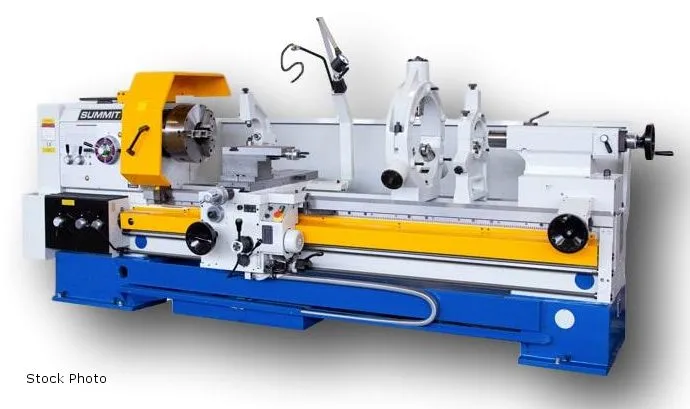

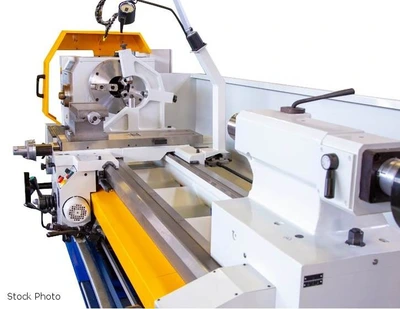

SUMMIT (NEW) 30-5-120 PRECISION ENGINE LATHE
29.9" SWING OVER BED
20.5" SWING OVER CROSS SLIDE
37" SWING OVER GAP
15" GAP
8-3/8" GAP IN FRONT OF FACEPLATE
WORK PIECE WEIGHTS
- 1,700 LBS AT HEADSTOCK
- 11,000 LBS BETWEEN CENTERS
- 14,300 LBS BETWEEN CENTERS WITH STEADY REST
HEADSTOCK
- 5.1" SPINDLE BORE
- (17) SPINDLE SPEEDS, 8-1,015 RPM
- D1-11 CAMLOCK SPINDLE NOSE
- MT6 CENTER
QUICK-CHANGE GEARBOX
- (76) THREADS PER INCH, 1/6 - 60
- (76) METRIC THREADS, 0.5-180
- (76) MODULE THREADS, 0.125-90
- (76) DIAMETRAL PITCH, 1-240
- (150) LONGITUDINAL FEEDS, 0.00145-0.66816 IPR
- (150) CROSS FEEDS, 0.0007-0.33408 IPR
- 2" LEADSCREW DIAMETER, 2 TPI
- 1" FEED ROD DIAMETER
CARRIAGE APRON
- 16.1" CROSS SLIDE TRAVEL
- 5.1" COMPOUND REST TRAVEL
- 0.020 APRON HANDWHEEL GRADUATION
- 0.002 CROSS SLIDE HANDWHEEL GRADUATION

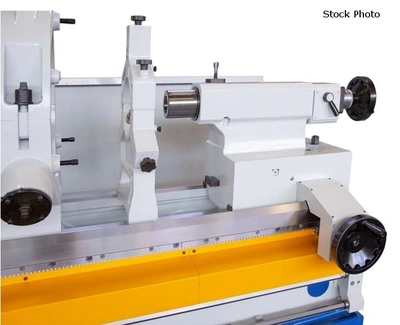

TAILSTOCK
- 8.8" SPINDLE BARREL TRAVEL
- 4.1" SPINDLE BARREL DIAMETER
- MT6 CENTER TAPER
- 2 SPEEDS, 1:1, 4:1

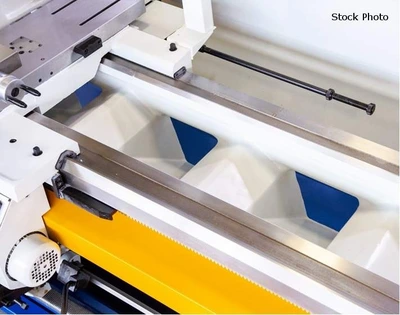

BED
- 22" X 19.5"
- 42-48 ROCKWELL C HARDNESS
TAPER ATTACHMENT
- +/- 10 DEGREES
- 17.7" TURNING LENGTH PER SETTING
MOTORS
- 25 HP MAIN
- 1/4 HP COOLANT PUMP
STEADY FOLLOW REST
- 0.75" - 7.75" STANDARD STEADY REST
- 7" - 16.9" EXTRA CAPACITY STEADY REST
- 0.75" - 7.75" FOLLOW REST
STANDARD FEATURES
- INCH/METRIC THREADS WITH SINGLE SWITCH LEVER
- CUTS MOST INCH/METRIC THREADS W/O GEAR CHANGE
- HARDENED AND GROUND BEDWAYS
- FORCED LUBE TO HEADSTOCK, CARRIAGE BEDWAYS
- MECHANICAL DISC CLUTCH
- REMOVABLE GAP
- PRECISION 3 BEARING SPINDLE
- CROSSFEED AND THREADING SAFETY INTERLOCK
- FEED REVERSING AT THE APRON
- SINGLE LEVER CONTROL FOR FEEDS AND RAPIDS
- 2-SPEED TAILSTOCK
ACCESSORIES INCLUDED
- STANDARD STEADY REST
- EXTRA CAPACITY STEADY REST WITH ROLLERS
- FOLLOW REST
- THREAD DIAL
- COOLANT SYSTEM
- TAPER ATTACHMENT
- 16" 3-JAW CHUCK
- CARRIAGE STOP
- WORK LIGHT
- FULL-LENGTH SPLASH GUARD
- SERVICE WRENCHES AND SPANNERS
OPTIONS AVAILABLE - PRICE ON REQUEST
- 25" SEMI-STEEL-BODY 4-JAW CHUCK WITH SOLID JAWS
- 25" STEEL-BODY 4-JAW CHUCK WITH 2-PIECE JAWS
- ALORIS QUICK-CHANGE TOOL POST WITH HOLDERS
- FABOR 2-AXIS DIGITAL READOUT, INSTALLED
Power: 220/440 (3-Phase)
