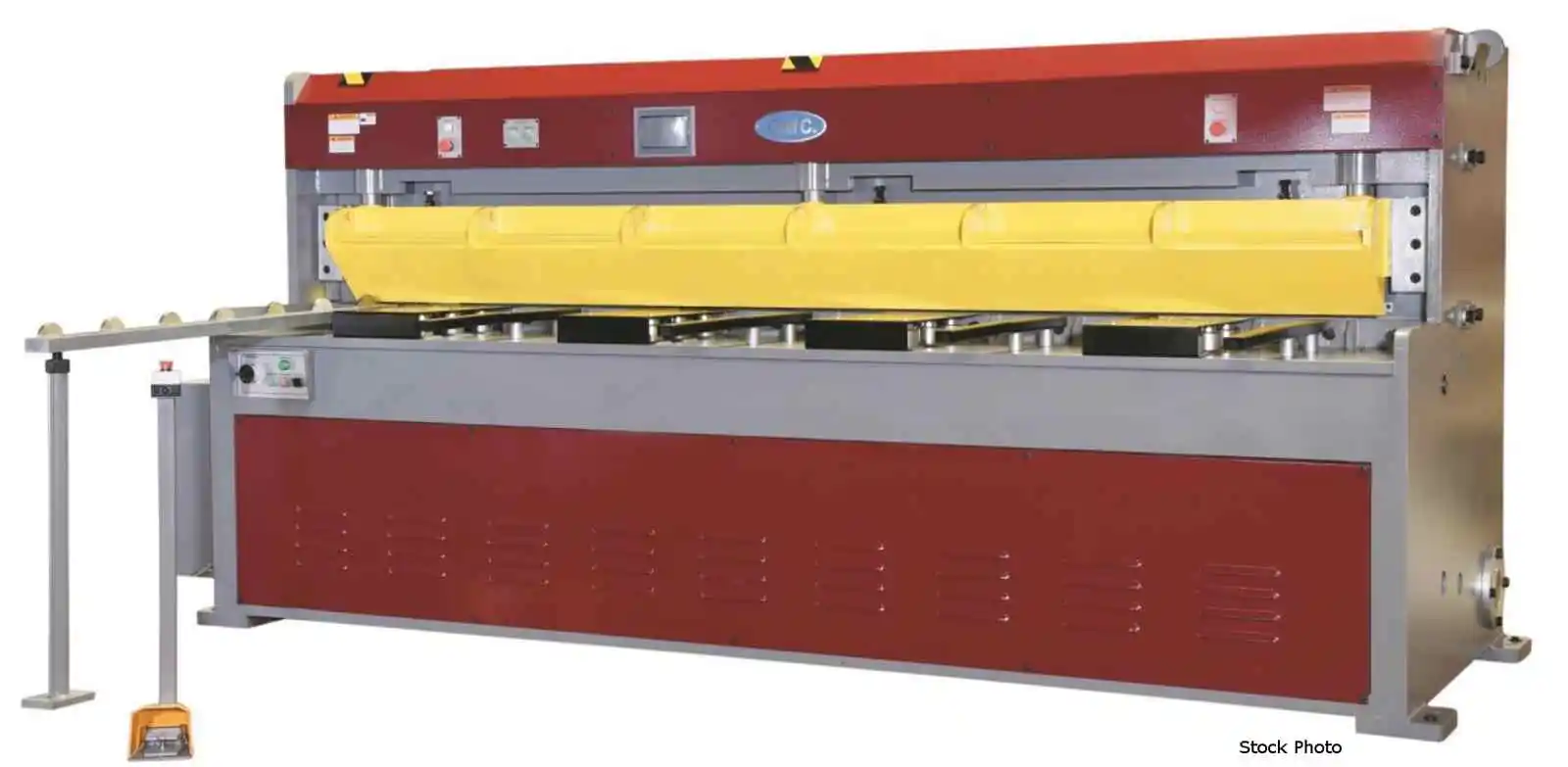

NEW GMC MACHINE TOOLS HS-1025E

GMC (NEW) MODEL HS-1025E HEAVY-DUTY HYDRAULIC
SHEAR

10' X 1/4" CAPACITY - MILD STEEL
10' X 10 GAUGE CAPACITY - STAINLESS STEEL
10' X 3/8" SOFT ALUMINUM
20 GAUGE MIN THICKNESS
10' 2" BLADE
10-12 STROKES PER MINUTE
18" THROAT
34-1/2" WORK TABLE HEIGHT
24" FRONT SUPPORT ARM
36" POWER BACK GAUGE
2 DEGREE BLADE RAKE ANGLE
53 GALLON OIL TANK
20 HP MAIN MOTOR
1 HP POWER BACK GAUGE MOTOR

FEATURES
- 36" NC BACK GAUGE W/TOUCH SCREEN
- 60" SQUARING ARM WITH INLAID INCH/METRIC SCALE
- QUICK-CHANGE BLADE GAP ADJUSTMENT W/GAP DIAL
- SHADOW LINE FOR ACCURATE STRAIGHT CUTTING
- ADJUSTABLE CUTTING LENGTH AND STROKE
- BALL TRANSFER PLATES ON WORK TABLE FOR LOADING
- WELL-BALANCED, STURDY, ALL-STEEL MACHINE FRAME
- GERMAN-MADE HYDRAULIC LOGIC SYSTEM
- HYDRAULIC HOLD-DOWNS WITH ANTI-MAR NEOPRENE
- HIGH-GRADE CARBON/CHROME ALLOY STEEL BLADES
HARDENED TO 60 HRC
2-EDGE INDEXABLE UPPER BLADE
2-EDGE INDEXABLE BOTTOM BLADE
- FULL-LENGTH VIEWABLE FINGER GUARD
- REMOVABLE SAFETY FOOT PEDAL
AUTO BLADE RAISE UP WHEN FOOT LEAVES PEDAL
- HYDRAULIC ELECTRICAL OVERLOAD PROTECTION
- COMPACT OPERATOR CONTROL PANEL
- MATERIAL SUPPORT AND DROP BACK CHUTE
- JOG OR CONTINUOUS AUTO CYCLE CUTTING MODES
- (2) 24" FRONT SUPPORT ARMS
- ISO 9001 CERTIFIED
- CE STANDARD OMERO ELECTRIC CONTROL SYSTEM
- MEETS OSHA SAFETY STANDARD CODES

OPTIONS AVAILABLE - PRICE ON REQUEST
- 440 VOLT, 3 PHASE
- SAFETY FENCE FOR ENCLOSURE OF THE BACK SIDE OF
MACHINE
