| Dimensions | 71 X 30 X 60 | 71 X 30 X 60 |
| Weight | 1,212 | 1,212 |

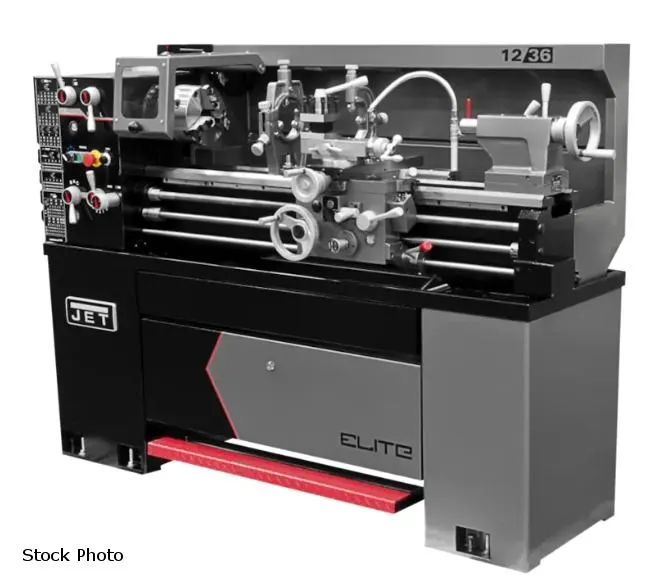

JET (NEW) MODEL E-1236VS ELITE 12 X 36 EVS LATHE
12" SWING OVER BED
7-5/16" SWING OVER CROSS SLIDE
17-1/2" SWING THROUGH GAP
9-1/2" GAP
36" BETWEEN CENTERS
1-9/16" SPINDLE BORE
D1-4 SPINDLE MOUNT
MT5 SPINDLE TAPER WITH SLEEVE
VARIABLE SPINDLE SPEEDS
0 - 2,000 RPM SPINDLE SPEEDS
50 LONGITUDINAL AND CROSS FEEDS
0.0016-0.046 IPR LONGITUDINAL FEEDS
0.0005-0.015 IPR CROSS FEEDS
34 INCH THREADS
2-56 TPI INCH THREADS
34 METRIC THREADS
0.5 TO 12 METRIC THREADS
1/2" X 1/2" MAXIMUM TOOL SIZE
3-1/2" COMPOUND SLIDE TRAVEL
6-3/4" CROSS SLIDE TRAVEL
4" TAILSTOCK SPINDLE TRAVEL
MT3 TAILSTOCK SPINDLE TAPER
1/4" TO 1-1/8" FOLLOW REST
1/4" TO 2-1/2" STEADY REST
7-1/2" BED WIDTH
2 HP, 230 VOLT MOTOR - SINGLE OR 3 PHASE
1/8 HP COOLANT PUMP MOTOR
EVS DRIVE
STANDARD EQUIPMENT
- 6" 3-JAW CHUCK
- 10" FACEPLATE

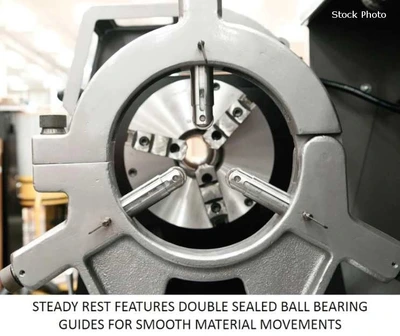

- STEADY REST BALL BEARING
- FOLLOW REST BALL BEARING
- 4-WAY TOOL POST
- CHUCK GUARD
- 4-POSITION CARRIAGE STOP
- THREADING DIAL
- COOLANT SYSTEM
- CENTER SLEEVE
- DEAD CENTER
- LEVELING PADS
- TOOL BOX WITH TOOLS
FEATURES

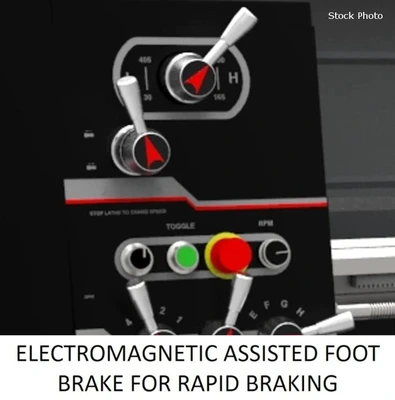

- ELECTROMAGNETIC ASSISTED FOOT BRAKE
- INVERTER DRIVE SYSTEM FOR INF. VARIABLE SPEEDS
- FRONT-FACING CHIP PAN
- 2-SPEED GEARBOX

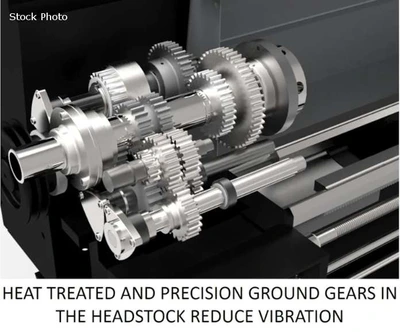

- HARDENED AND GROUND GEARS IN HEADSTOCK
- CLASS 7 PRECISION TAPER ROLLER BEARINGS
- FULLY LIT WITH CNC STYLE LIGHTING
- ENCLOSED FULL LENGTH SPLASH GUARD
DESIGNED TO CONTAIN ALL CHIPS AND COOLANT
- OVERLOAD CLUTCH AT FEED SHAFT
PREVENTS CARRIAGE FROM CRASHING INTO CHUCK
- MEEHANITE CASTINGS
- INTEGRATED LOCKING TOOL CABINET IN STAND
- LED RPM READOUT FOR PRECISE TURNING SPEEDS
- CONFORMS TO CSA SAFETY REQUIREMENTS
OPTIONS AVAILABLE - PRICE ON REQUEST
- ACU-RITE 203 DRO
- NEWALL DP700 DRO
- TAPER ATTACHMENT
- COLLET CLOSER
Power: 230
