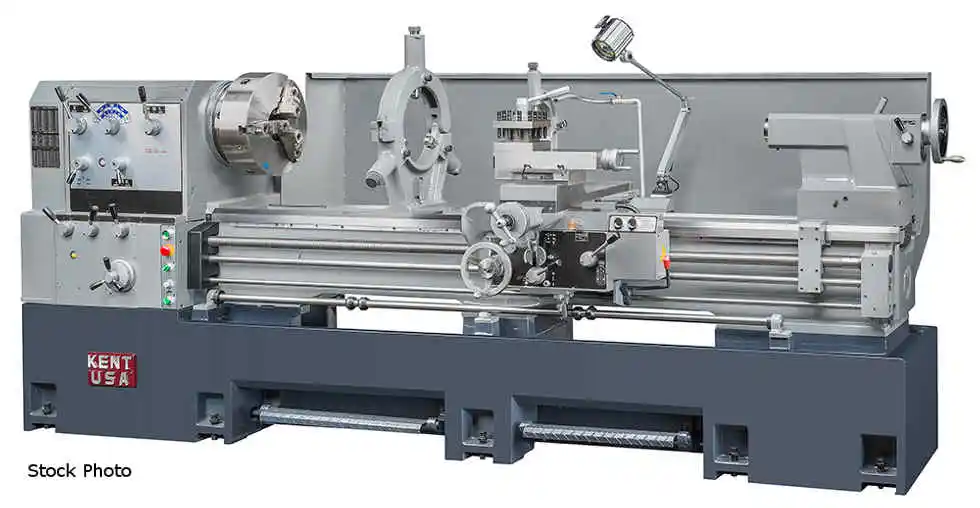

NEW KENT USA HW-30160

KENT USA (NEW) MODEL HW-30160 ENGINE LATHE

CAPACITY
- 30" SWING OVER BED
- 21.3" SWING OVER CROSS SLIDE
- 38.9" SWING OVER GAP
- 11.8" GAP LENGTH WITH FACE PLATE
- 15.75" BED WIDTH
- 169" BETWEEN CENTERS

HEADSTOCK
- 4.5" SPINDLE BORE
- D1-11 SPINDLE NOSE
- MT #7 SPINDLE TO SLEEVE TAPER
- 12 SPINDLE SPEEDS - 10-1,000 RPM

CARRIAGE
- 14.75" CROSS SLIDE TRAVEL
- 8" TOP SLIDE (COMPOUND) TRAVEL

FEED BOX
- 44 INCH THREADS, 2 - 56 TPI
- 39 METRIC THREAD, 0.5 - 14 TPM
1.5" LEADSCREW DIAMETER
4 TPI LEADSCREW PITCH
- 0.002 - 0.032 IPR LONGITUDINAL FEEDS
- 0.001 - 0.0094 IPR CROSS FEEDS

TAILSTOCK
- 3.3" QUILL DIAMETER WITH TANG
- 6.5" QUILL TRAVEL
- MT #5 QUILL TAPER

POWER
- 15 HP SPINDLE MOTOR, 230/460 VOLTS, 3 PHASE
- 1/8 HP COOLANT PUMP MOTOR
- 115 CONTROL CIRCUIT VOLTAGE

FEATURES
- 1-PIECE FULL-LENGTH CASTING BASE BEDWAYS
- SPINDLE JOG BUTTON CONTROL
- 1-SHOT LUBRICATION
- MULTI-POSITION ADJUSTABLE FEED POSITION STOPS
- DUAL INCH/METRIC CALIBRATED TAILSTOCK
- DUAL INCH/METRIC DIALS

STANDARD ACCESSORIES
- 15" 3-JAW CHUCK
- STEADY REST
- FOLLOW REST
- THREAD CHASING DIAL
- 4-POSITION TOOL POST
- COOLANT SYSTEM WITH FULL-LENGTH SPLASH GUARD
- 4-POSITION CARRIAGE STOP

OPTIONS AVAILABLE - PRICE ON REQUEST
- DIGITAL READOUT SYSTEM
- TOOL POST 6 HOLDERS
- ROYAL SPINDLE TYPE LIVE CENTER
- BTC 3-JAW CHUCK WITH BACK PLATE
- 4-JAW INDEPENDENT CHUCK (16" D1-11)
- ADAPTOR PLATE FOR MOUNTING CHUCKS AT BACK OF
SPINDLE
- 20" D1-11 FACE PLATE
- TAPER TURNING ATTACHMENT
- MICROMETER CARRIAGE STOP
- RUSTLICK COOLANT (1 GALLON, MIXES 1:30)
Power: 230/460 (3-Phase)
