NEW CIDAN FORMA 32

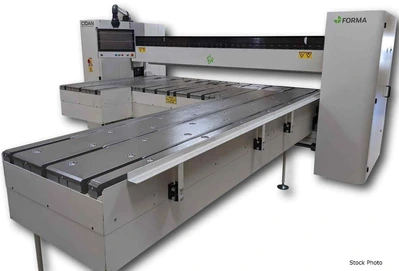

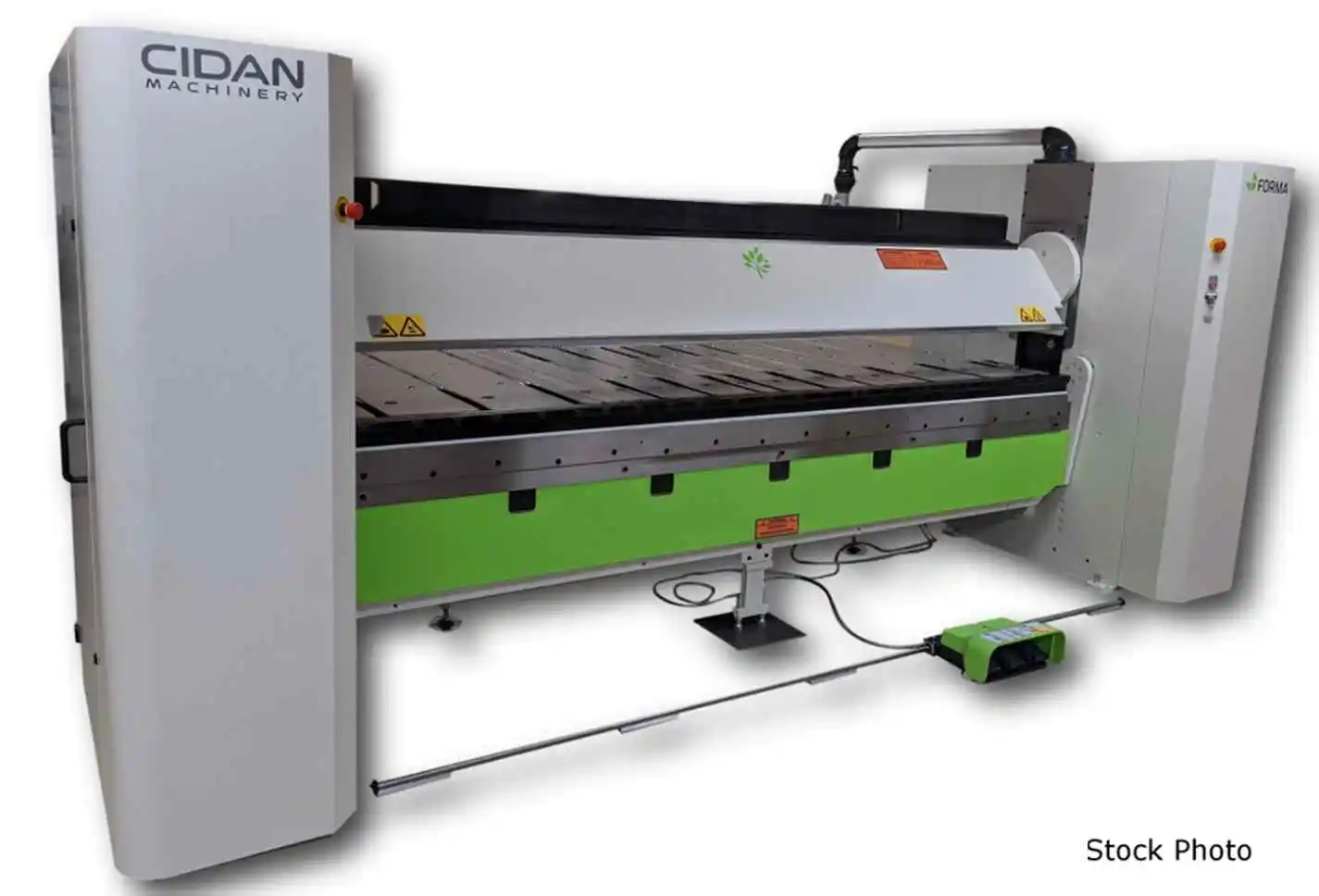

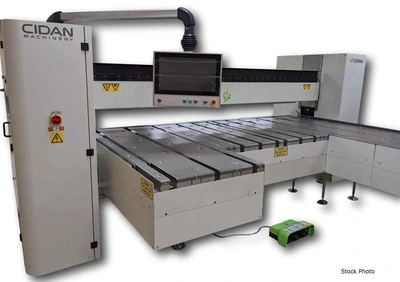

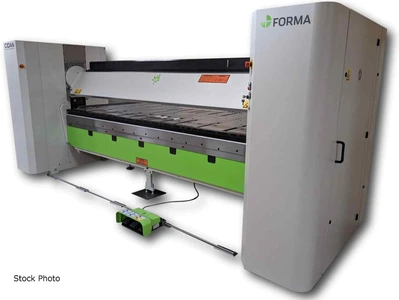

CIDAN (NEW) MODEL FORMA 32 CNC FOLDER

126" CAPACITY
- 11 GAUGE MILD STEEL
- 14 GAUGE STAINLESS STEEL
- 0.177" ALUMINUM
7.7" OPENING HEIGHT OF CLAMPING BEAM
(2) 1.5 HP CLAMPING BEAM MOTORS
30 TON CLAMPING PRESSURE
(2) 2 HP FOLDING BEAM MOTORS
80 PSI AIR REQUIRED, STATIC LOAD

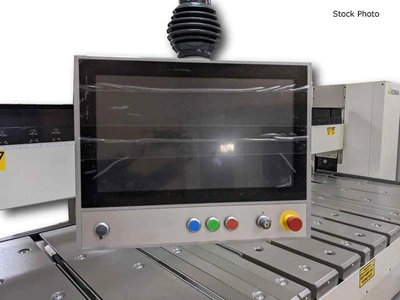

18.5" TOUCH SCREEN CONTROL AND GRAPHIC PROGRAMMING
AUTOMATIC MATERIAL SHEET THICKNESS ADJUSTMENT
61" AGS BACKGAUGE
QUICK-CHANGE RAILS AND TOOLS
ADJUSTABLE CROWNING OF FOLDING BEAM RAIL
CROWNING IS EASILY ADJUSTED
CONTINUOUS COOLING OF UPPER BEAM MOTOR
FOOT PEDAL

OPTIONS AVAILABLE - PRICE ON REQUEST
- HIGH DIVIDED TOOLS
- 30 DEGREE STRAIGHT RAIL
- DIFFERENT FOLDING BEAM WIDTHS
- LOWER BEAM
- RADIUS RAIL
- TOOLS WITH 1.0 M RADIUS
- C-SHAPED HIGH DIVIDED TOOLS
- HARDENED TOOLING
- MULTIFOLD TOOLING
- MOTORIZED BACKGAUGE
- DIFFERENT BACKGAUGE CONFIGURATIONS
- HEIGHT-ADJUSTABLE BACKGAUGE
- BALL TRANSFERS
- SOLID FRONT FINGERS
- SUPPORT ARM / FRONT GAUGE
- SQUARING ARM
- EXTRA FOOT PEDAL
- MOVABLE FOOT PEDAL ON RAIL
- SAFETY LIGHT OR SAFETY LASER SCANNER
- AUTOMATIC COLLISION SAFETY BUMPER
- 21.5" SCREEN
- OFFLINE SOFTWARE
- AUTOMATIC LUBRICATION
- TOOL CART
- AUXILIARY OUTPUTS
- CUSTOM TOOLING
Power: 208/230/460 (3-Phase)
