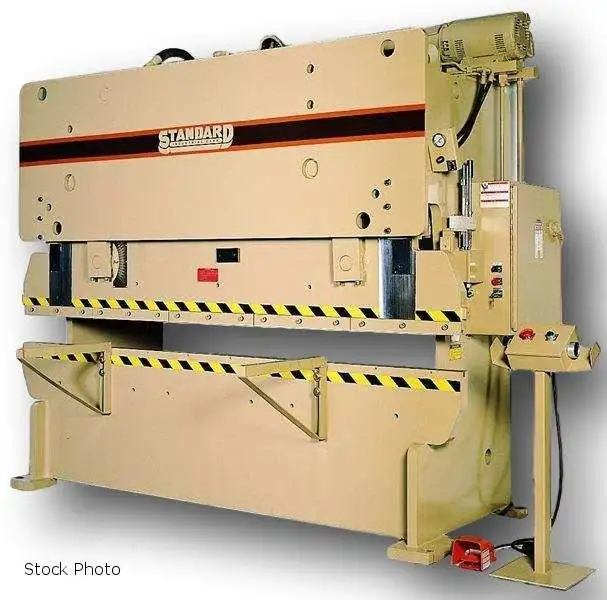

NEW STANDARD AB 100-8

STANDARD (NEW) MODEL AB100-8 PRESS BRAKE

100 TON FORMING
66 TON PUNCHING
8' BED/RAM
6' 5" BETWEEN HOUSINGS
35" BED HEIGHT
4" BED WIDTH
6" THROAT
6" FULLY ADJUSTABLE RAM STROKE
127 IPM RAM APPROACH SPEED
22 IPM RAM PRESSING SPEED
163 IPM RAM RETURN SPEED
13" OPEN HEIGHT
7" CLOSED HEIGHT
15 HP

STANDARD FEATURES
- COMPONENTS AVAILABLE FROM LOCAL SUPPLIERS
- GROOVE IN BED RAM CLAMPS FOR AMERICAN TOOLING
- TYPICAL 20-30 YEAR LIFETIME
- HYDRAULIC TONNAGE CONTROL
- FULL TONNAGE THROUGHOUT STROKE
- COUNTERBALANCE FOR PUNCHING
- +/- 0.001 REPEATABILITY
- FULL TONNAGE ACROSS BED AND RAM
- (2) 24" WORK SUPPORT ARMS
- MANIFOLD CENTRALIZED LUBE SYSTEM
- HAND/FOOT SEQUENCE WITH FOOT SWITCH
- T-SLOT ACROSS FRONT EDGE OF BED

WARRANTY
- 5 YEAR PARTS
- 5 YEAR LIMITED ONSITE LABOR
- UNLIMITED PHONE SUPPORT

OPTIONS AVAILABLE - PRICE ON REQUEST
- LIGHT CURTAIN WITH FOOT SWITCH
- LASER GUARDING SYSTEMS
- COMPLIANCE OPTIONS INCLUDING UL, CSA, ZED
- ADDITIONAL FOOT SWITCH AND PEDESTAL CONTROL
- LOW SPEED RETRACT
- SAFETY GUARDING FOR REAR OF PRESS BRAKE
- AUTO RETURN OF RAM
- DECOMPRESSION SYSTEM
- AUTOMATIC LUBRICATION SYSTEM
- EXTENDED WARRANTY
- PAINT COLOR
- SUPPORT ARMS AND ACCESSORIES
- QUICK-RELEASE LINEAR WORK SUPPORT SYSTEMS
- CONTROL PACKAGES
- TOOLING PACKAGES
- WILA CROWNING AND CLAMPING SYSTEMS
- BED AND RAM WIDTH EXTENSIONS
- HIGH SPEED SYSTEMS
- EXTRA OPEN HEIGHT, THROAT DEPTH, AND/OR STROKE
- TRAINING AND/OR MAINTENANCE
