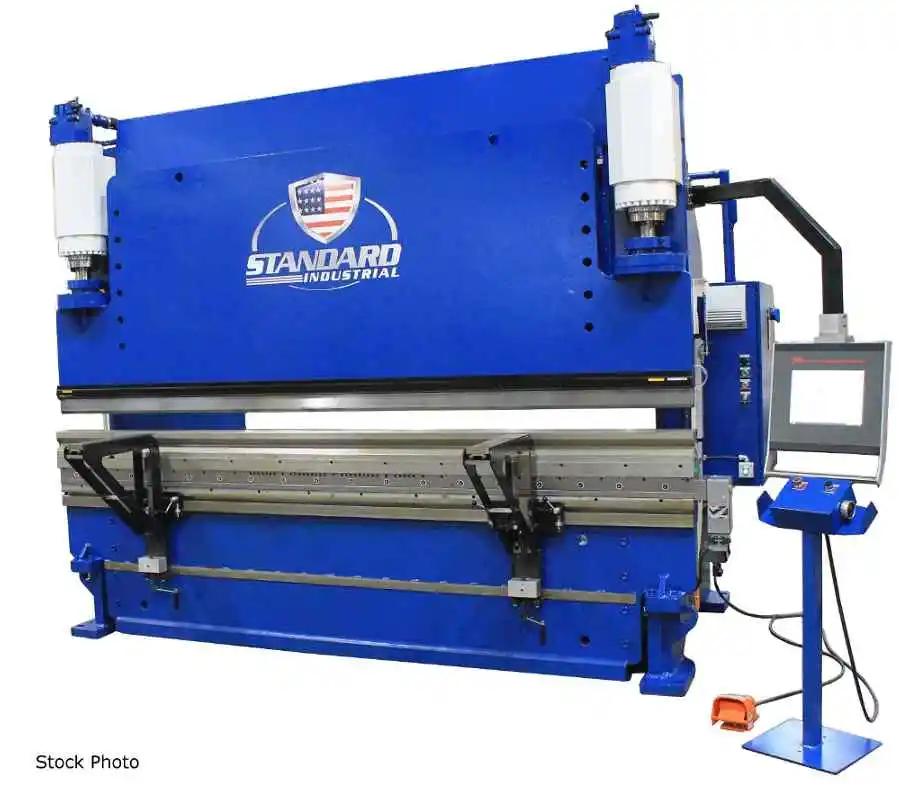

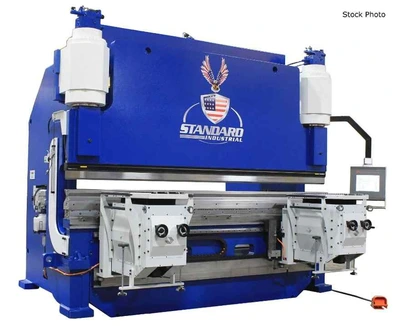

NEW STANDARD EV90-8 SERVO Y1-Y2

STANDARD (NEW) MODEL EV90-8 SERVO Y1-Y2
PRECISION PRESS BRAKE

90 TON CAPACITY
8' BED AND RAM
77" BETWEEN HOUSINGS
8" ADJUSTABLE STROKE
15" OPEN HEIGHT
7" CLOSED HEIGHT
8" THROAT
190 IPM FAST APPROACH SPEED
27 IPM PRESSING SPEED
190 IPM RETURN SPEED
10 HP

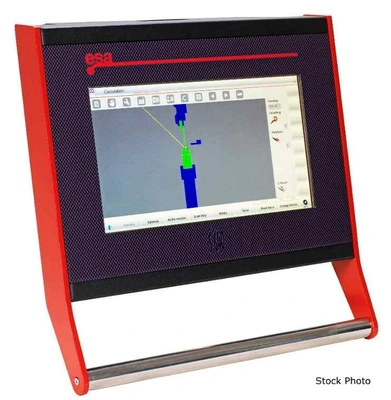

640 D2 GRAPHIC CONTROL
- 15" COLOR TOUCHSCREEN ON PENDANT
- 3D ON-SCREEN PART VIEWING
- CROWNING CORRECTION IN DEGREES
CROWNING UNIT SOLD SEPARATELY
- 2D IDENTIFICATION OF BEST BENDING SEQUENCES
- 2D GRAPHIC OFFLINE SOFTWARE FOR DESKTOP
PROGRAMMING
- 2D COLLISION DETECTION
- UNLIMITED JOB STORAGE VIA USB AND RS232 PORTS
- X, Y, R, Z1-Z2, X-PRIME PROGRAMMABILITY
- ACCEPTS MOST TOOLING FILES
- 30,000 HARD DRIVE PROGRAMS
- PROGRAMMABLE DELAY RETRACT AT PINCH POINT
- INCH/MM CONVERSION
- AUTO RETURN OF RAM
- LOW SPEED RETRACT
- DWELL/DECOMPRESSION

STANDARD FEATURES
- Y1-Y2 AXES
+/- 0.004 RAM REPEATABILITY - RAM AND TILTING
+/- 0.750 TAPERED BENDS (CONES)
- (2) 24" T-SLOT SUPPORT ARMS WITH IMBEDDED SCALE
- T-SLOT ACROSS FRONT EDGE OF BRAKE BED
- 10" DEEP GAPS IN SIDE FRAMES
FOR BENDING LONGER LENGTHS WITH LARGER FLANGES
- 2 PRECISION PROPORTIONAL VALVES
FOR PARALLELISM OF UPPER LOWER BEAMS
CONTROLLED BY THE CNC CONTROL (Y1 AND Y2 AXES)
- COMPLETE HYDRAULIC SYSTEM
- EMERGENCY STOP PALM BUTTON
- COMPONENTS AVAILABLE FROM LOCAL SUPPLIERS
- TYPICAL 20-30 YEAR LIFETIME
- MANUAL RAM CLAMPS FOR AMERICAN STYLE TOOLING
- HEAVY-DUTY WELDED FRAME
- EXTREMELY RIGID MOVABLE BEAM
- FLUSH FLOOR MOUNTED (NO PIT REQUIRED)
- BUILT-IN OVERLOAD PROTECTION
- 2-DAY ON-SITE TRAINING IN CONTIGUOUS US

WARRANTY
- 5 YEAR PARTS
- 5 YEAR LIMITED LABOR
- 1 YEAR CNC CONTROL
- UNLIMITED PHONE SUPPORT

OPTIONS AVAILABLE - PRICE ON REQUEST
- CNC CONTROL AND BACKGAUGE OPTIONS
- WILA CROWNING AND CLAMPING SYSTEMS
- TOOLING PACKAGES
- AUTOMATIC LUBRICATION SYSTEM
- LIGHT CURTAIN WITH FOOT SWITCH
- LASER GUARDING SYSTEMS
- ADDITIONAL FOOT SWITCH AND PEDESTAL CONTROL
- SAFETY GUARDING FOR REAR OF PRESS BRAKE
- COMPLIANCE OPTIONS INCLUDING UL, CSA, ZED
- SUPPORT ARMS AND SHEET FOLLOWERS
- PAINT COLOR
- EXTRA OPEN HEIGHT, THROAT DEPTH, AND/OR STROKE
- EXTENDED WARRANTY
Power: 220/440 (3-Phase)
