NEW DURMA AD-EB 2580

Name: NEW DURMA AD-EB 2580
Brand: DURMA
SKU: 353680
Availability: InStock

Safety note

This seller is not an Equipt Pro dealer. Equipt does not inspect items, handle payment or guarantee transactions. Verify the seller and equipment before sending funds.

Overview

Type:

Press Brakes

Manufacturer:

DURMA

Model:

AD-EB 2580

Stock #:

062454

Specifications

Dimensions

146 X 87 X 101

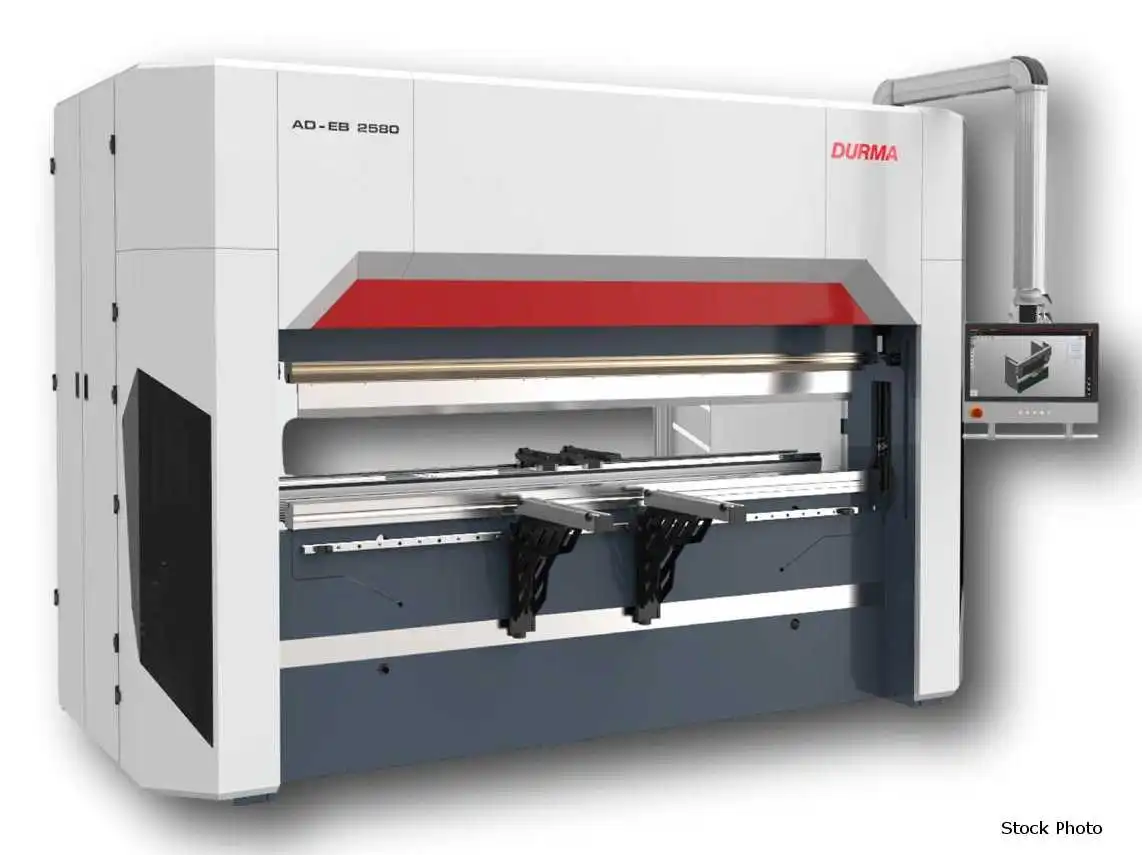

DURMA (NEW) MODEL AD-EB 2580 ELECTRICAL PRESS BRAKE

88 US TONS
8' 4" BENDING LENGTH
9' 3" BETWEEN COLUMNS
12.5" STROKE
23.6" - 25.5" - 27.5" DAYLIGHT
41.9" WORKING HEIGHT
246"/MINUTE APPROACH SPEED
42"/MINUTE BENDING SPEED (23.4"/MIN. - CE NORM)
246"/MINUTE RETURN SPEED
25.5" BACKGAUGE (X-AXIS) WORKING DISTANCE
25 HP SERVO MOTOR

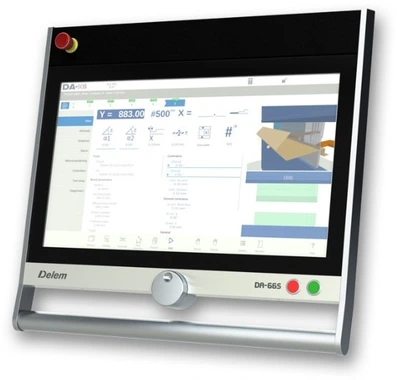

DELEM DA-66S CNC CONTROL
- 2D GRAPHIC TOUCH SCREEN PROGRAMMING MODE
- 3D VISUALIZATION IN SIMULATION PRODUCTION
- 24" HIGH-RESOLUTION COLOR TFT
- DELEM MODUSYS COMPATIBILITY
- USB PERIPHERAL INTERFACING
- USER SPECIFIC APPLICATION SUPPORT
- SENSOR BENDING AND CORRECTION INTERFACE
- PROFILE-S2D OFFLINE SOFTWARE

STANDARD FEATURES
- 4 AXIS CNC Y1, Y2, X, R
- FIESSLER LIGHT CURTAIN SAFETY SYSTEM
- SERVO DRIVEN BACKGAUGE SYSTEM (X-AXIS)
LINEAR GUIDE AND BALLSCREW DESIGN
- UNIVERSAL WEDGE-STYLE PUNCH CLAMP
(FOR AMERICAN OR EUROPEAN STYLE PUNCHES)
- BOTTOM DIE RAIL ADAPTER
(FOR AMERICAN AND EUROPEAN STYLE DIES)
- PRECISION HARDENED GROUND PUNCH/4-WAY DIE
TOP TOOL - ROLLERI P97.75.R08
BOTTOM TOOL - ROLLERI M.460R.85
- 2 BACKGAUGE FINGER BLOCKS
- CNC CONTROLLED MOTORIZED CROWNING
- 2 SLIDING FRONT SUPPORT ARMS WITH T-SLOT,
TILTING STOP AND FULL LENGTH LINEAR GUIDE
- QUICK-RELEASE CLAMPING SYSTEM

OPTIONS AVAILABLE - PRICE ON REQUEST
- DELEM DA-69S CNC CONTROL PROFILE T3D SOFTWARE
- DBEND 3D OFFLINE SOFTWARE PACKAGE
CAD/CAM IMPORTING AND SIMULATION PROGRAM
- FIESSLER LASER FINGER SAFETY-MOTORIZED HEIGHT
ADJUSTMENT
- 4-AXIS BACKGAUGE UPGRADE
X = 25.5" X, R, Z1, Z2
- 4 + 1 AXIS BACKGAUGE UPGRADE
X = 25.5" X, R, Z1, Z2, DELTA X +/- 4.9"
- LASER ANGLE MEASUREMENT SYSTEM
ADJUSTS PARAMETERS THROUGH BEND CYCLE
EXACT BENDING WITHOUT OPERATOR'S INTERVENTION
PROVIDES THE TARGET ANGLE WITH A SINGLE BEND
PREVENTS MATERIAL AND TIME LOSS
- WILA HYDRAULIC AND PNEUMATIC TOOL CLAMPS
- TOOLING FOR HYDRAULIC CLAMPING SYSTEMS
TOP TOOL - ROLLERI TPR200.86.R1
BOTTOM TOOL - ROLLERI TMR100.12.86
- PNEUMATIC SHEET SUPPORT TABLE
- CENTRAL LUBRICATION SYSTEMS (MANUAL/MOTORIZED)
- ADDITIONAL BACKGAUGE FINGERS
- ADDITIONAL SLIDING FRONT SUPPORT ARMS
