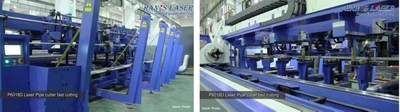

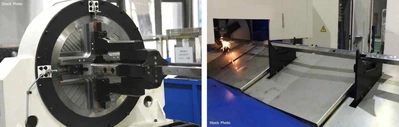

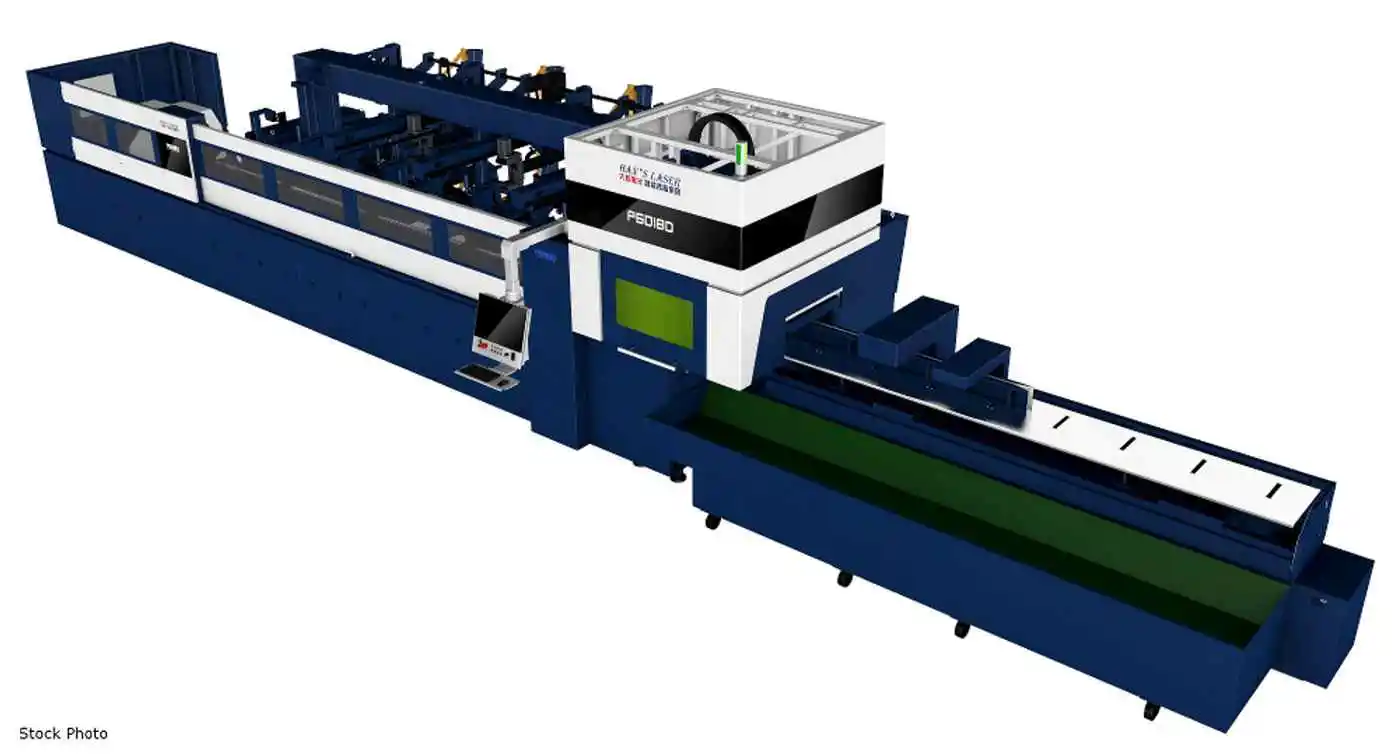

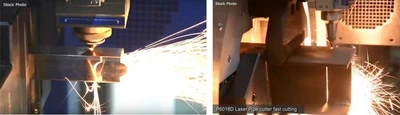

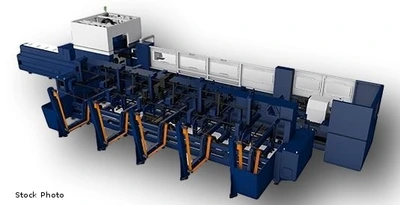

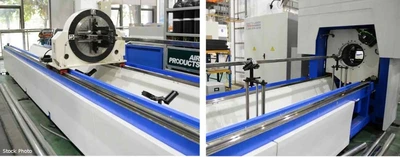

NEW HANS LASER P8018D

HANS LASER (NEW) MODEL P8018D FIBER TUBE LASER 6 KW HANS

322" TUBE
6 KW HANS FIBER RESONATOR WITH WATER CHILLER
0.787" - 7.2" TUBE OD
322.67" X AXIS
7.87" Y AXIS
6.29" Z AXIS
+/- 0.0012 X-Y AXIS POSITION ACCURACY
+/- 0.0012 X-Y AXIS REPEATABILITY
157" UNLOADING LENGTH
440 LB WORKTABLE LOAD
4724 IPM X/Y POSITIONING SPEED
4724 IPM X/Y FEED RATE
1.2 G FORCE ACCELERATION
AUTOMATIC BUNDLE LOADER - 26" X 18" MAX BUNDLE
IP54 POWER PROTECTION
HANS 701P CONTROLLER
17" TOUCHSCREEN
LANTEK OR METALIX ROTARY PROGRAM SOFTWARE - 1 SEAT
SIEMENS OR BOSCH DRIVE AND SERVO SYSTEM
HANS LASER AUTO-FOCUS CUTTING HEAD
AUTO LUBRICATION SYSTEM
STRESS-RELIEVED FRAMES MACHINED AS 1 UNIT
VOLTAGE STABILIZER AND TRANSFORMER AS REQUIRED
DONALDSON DUST COLLECTOR SYSTEM - 4 FILTERS
CLASS 1 FDA CERTIFIED
2 YEARS PARTS AND LABOR WARRANTY

OPTIONS AVAILABLE - PRICE ON REQUEST
- 1, 2 OR 4 KW HANS FIBER RESONATORS
- AIR COMPRESSOR SYSTEM UPGRADE
- SMALL TUBE OPTION
- SEMI-AUTOMATIC LOAD SYSTEM
- ADDITIONAL LANTEK SOFTWARE SEAT
- LANTEK SOFTWARE TRAINING
- UL LISTING CERTIFICATE FOR LASER
Power: 380 (3-Phase)
