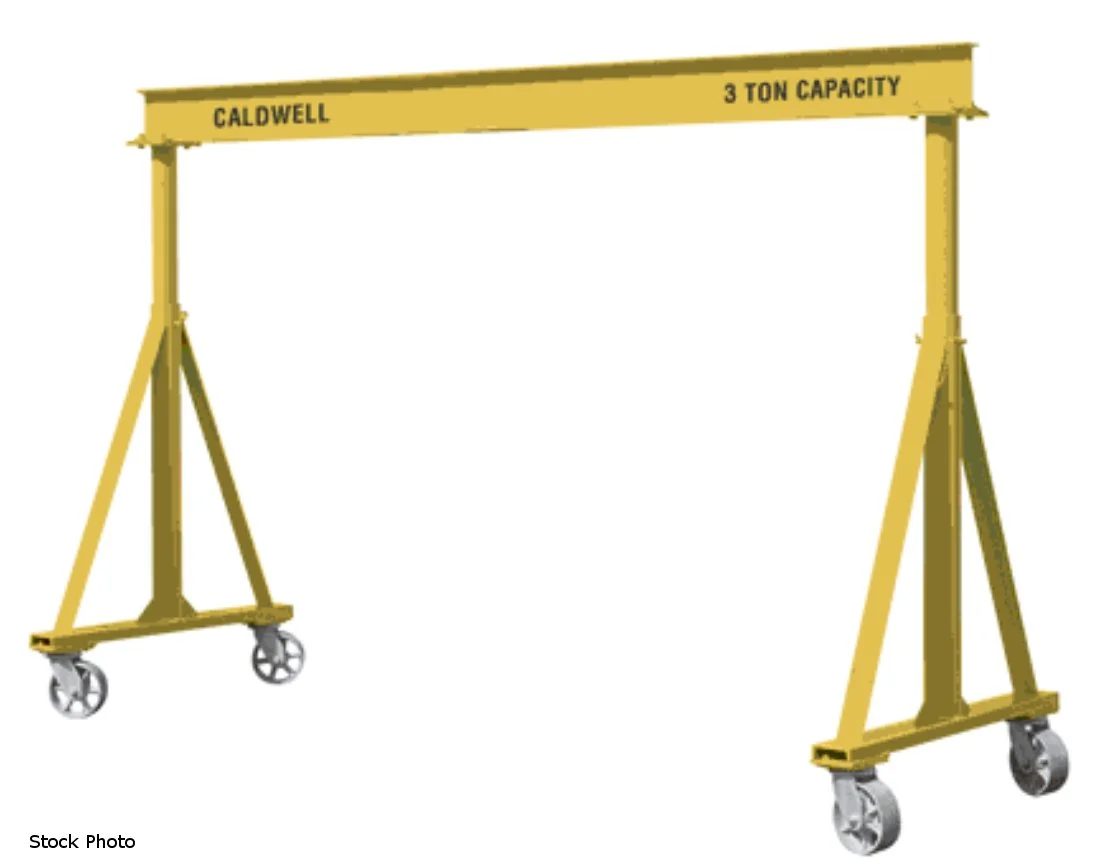

NEW CALDWELL KRANE KING K90-2-12/12

CALDWELL (NEW) KRANE KING K90-2-12/12 ADJUSTABLE
HEIGHT GANTRY CRANE

4000 LBS CAPACITY
12' MAXIMUM HEIGHT UNDER BEAM
8' 2" MINIMUM HEIGHT UNDER BEAM
12' NOMINAL SPAN
12' 5" INSIDE SPAN
13' 6" OVERALL LENGTH
6' 6" SUPPORT WIDTH
8" BEAM HEIGHT
4" FLANGE WIDTH
8" CASTER DIAMETER

ADJUSTABLE SPAN STANDARD ON
- 10' - 16' SPANS THROUGH 5 TONS
HEAVY-DUTY SUPPORTED LEG DESIGN
BALANCED DESIGN FOR EASY ROLLING WITH LOAD
CONFORMS TO AISC, OSHA, AND CMAA SPECIFICATIONS
SIMPLE BOLT-TOGETHER CONSTRUCTION
EASY SET UP AND MAINTENANCE
4 STEEL SWIVEL CASTERS
HEIGHT AND SPAN ADJUSTABILITY
- HEIGHT ADJUSTS DOWN FROM MAX IN 12" INCREMENTS
