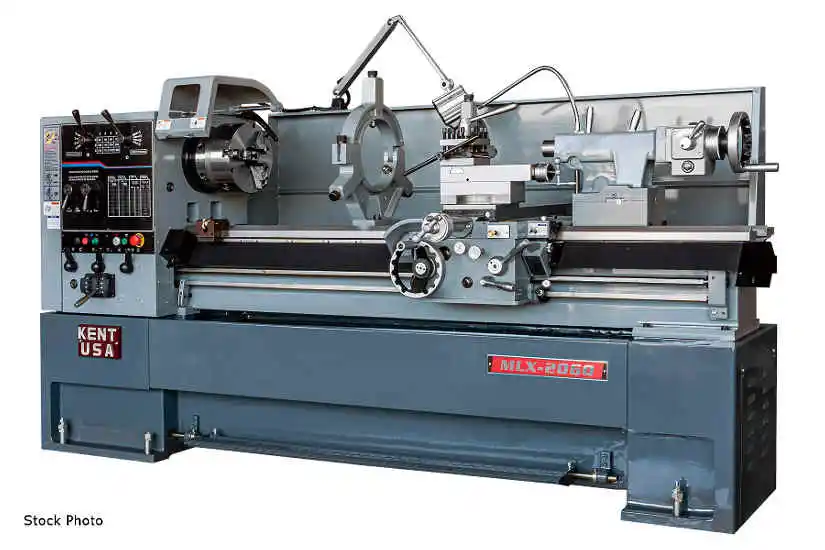

NEW KENT USA MLX-2060T

KENT USA (NEW) MODEL MLX-2060T ENGINE LATHE

CAPACITY
- 20" SWING OVER BED
- 14" SWING OVER CROSS SLIDE
- 27.5" SWING OVER GAP
- 12" BED WIDTH
- 57" BETWEEN CENTERS

HEADSTOCK
- 3.15" SPINDLE BORE
- 3.125" THROUGH HOLE DIAMETER
- D1-8 SPINDLE NOSE
- MT#5 SPINDLE BORE TAPER

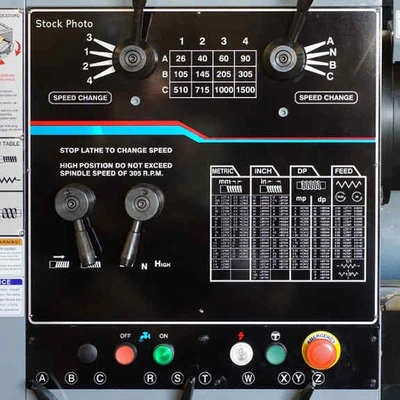

- 12 SPINDLE SPEEDS 26-1500 RPM

CARRIAGE
- 12" CROSS SLIDE TRAVEL
- 4.75" TOP SLIDE TRAVEL

FEED BOX
- 45 TPI INCH THREADS (2-72)
- 39 MM METRIC THREADS (0.2-14)
- 0.0015" - 0.04" IPR LONGITUDINAL FEEDS
- 0.00075" - 0.02 IPR CROSS FEEDS

TAILSTOCK
- 2.3" QUILL DIAMETER
- 5" QUILL TRAVEL
- MT#4 QUILL BORE TAPER

POWER
- 10 HP MAIN MOTOR
- 1/8 HP COOLANT PUMP MOTOR

FEATURES
- SOLID FULL-LENGTH CASTING BASE
- FRONT LOADING CHIP TRAY
- ADJUSTABLE OVER-LOAD FEED CLUTCHES
- QUICK-REVERSAL FEED FROM APRON
- FULL-LENGTH SAFETY FOOT BRAKE
- SPINDLE JOG BUTTON CONTROL
- ONE-SHOT LUBE FOR APRON, CARRIAGE BED WAYS
- MULTI-POSITION ADJUSTABLE FEED POSITION STOPS
- DUAL INCH/METRIC CALIBRATED TAILSTOCK QUILL
WITH KNOCKOUT TANG
- HEAVY-DUTY 2-SPEED TAILSTOCK
- DUAL INCH/METRIC DIALS WITH QUICK-CHANGE SLEEVE

STANDARD EQUIPMENT

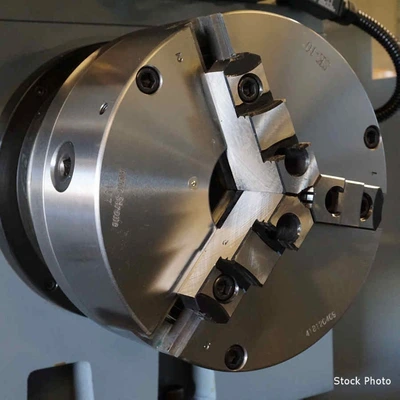

- 3-JAW CHUCK (10")
- CHUCK COVER WITH INTERLOCK
- STEADY REST
- FOLLOW REST

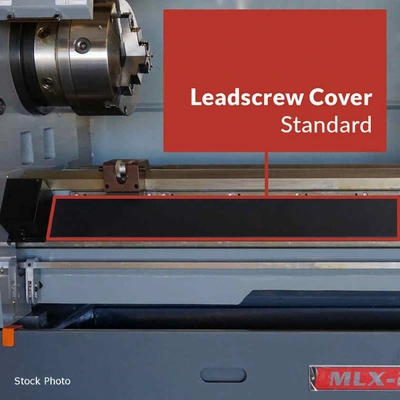

- MAIN LEADSCREW COVER
- 4-POSITION TOOL POST
- COOLANT SYSTEM
- FULL-LENGTH SPLASH GUARD
- HALOGEN WORK LIGHT
- THREAD CHASING DIAL
- 3-POSITION CARRIAGE STOP
- BED MOUNT CARRIAGE STOP

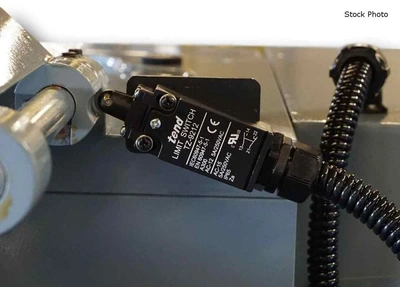

- ELECTRIC CABINET INTERLOCK SWITCH

OPTION AVAILABLE - PRICE ON REQUEST
- 4-JAW CHUCK
- DIGITAL READOUT SYSTEM
- ROYAL SPINDLE-TYPE LIVE CENTER
- BTC 3-JAW CHUCK WITH BACK PLATE (ZERO SET)
- TAPER TURING ATTACHMENT
- RUSTLICK COOLANT
- MICRO CARRIAGE STOP
Power: 230 (3-Phase)
