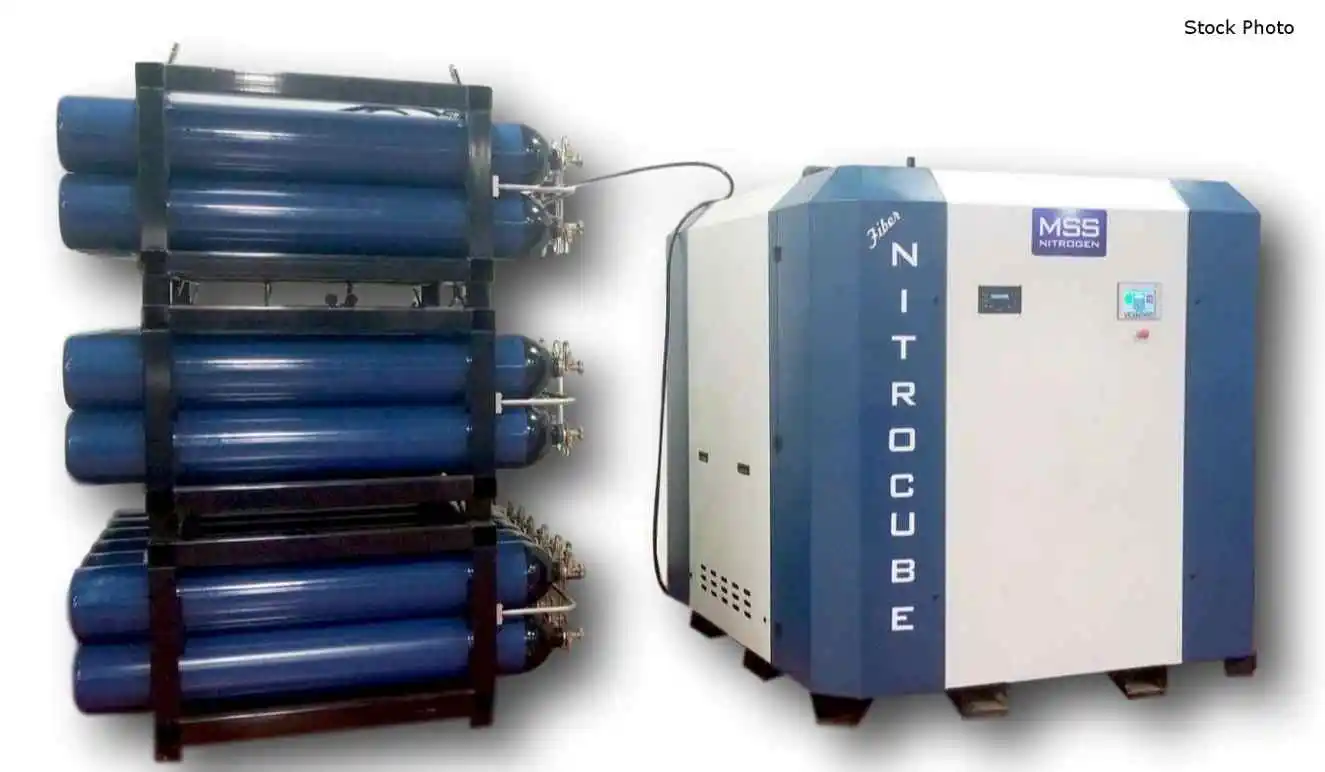

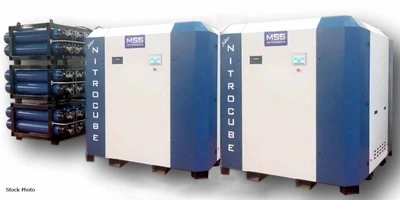

NITROCUBE (NEW) PLUG PLAY NITROGEN GENERATORS

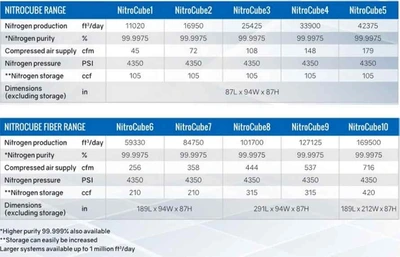

MODEL 1 11,020 CU FT/DAY 45 CFM 105 CCF
MODEL 2 16,950 CU FT/DAY 72 CFM 105 CCF
MODEL 3 25,425 CU FT/DAY 108 CFM 105 CCF
MODEL 4 33,900 CU FT/DAY 148 CFM 105 CCF
MODEL 5 42,375 CU FT/DAY 179 CFM 105 CCF
MODEL 6 59,330 CU FT/DAY 256 CFM 210 CCF
MODEL 7 84,750 CU FT/DAY 358 CFM 210 CCF
MODEL 8 101,700 CU FT/DAY 444 CFM 315 CCF
MODEL 9 127,125 CU FT/DAY 537 CFM 315 CCF
MODEL 10 169,500 CU FT/DAY 716 CFM 420 CCF
99.9975% NITROGEN PURITY
4350 PSI
FEATURES
- PLUG PLAY - QUICK, EASY INSTALLATION
- INDOORS OR OUTDOORS
- COMPACT FOOTPRINT
- DO NOT NEED SPECIAL FOUNDATION
- CONTINUOUS SUPPLY 24/7
- NO GAS WASTE, LIQUID "BOIL OFF," BOTTLES TO
RETURN, RENTAL, CONTRACTS, OR DELIVERY
ADDITIONAL COMPONENTS REQUIRED
- POWER SUPPLY
- PRESSURE TANK
- AIR COMPRESSOR WITH OIL-WATER SEPARATOR,
RECEIVER AND DRAIN
OPTIONS AVAILABLE
- SMALLER UNITS BEGINNING WITH 5930 CU FT/DAY
- LARGER UNITS - UP TO 1 MILLION CU FT/DAY
- 1 OR 2 CUBE UNITS
- 12, 24 OR 36 TANKS
MODEL 1 AND 2 NITROCUBES MAY BE CONFIGURED WITH
TANKS INSIDE THE CUBE
