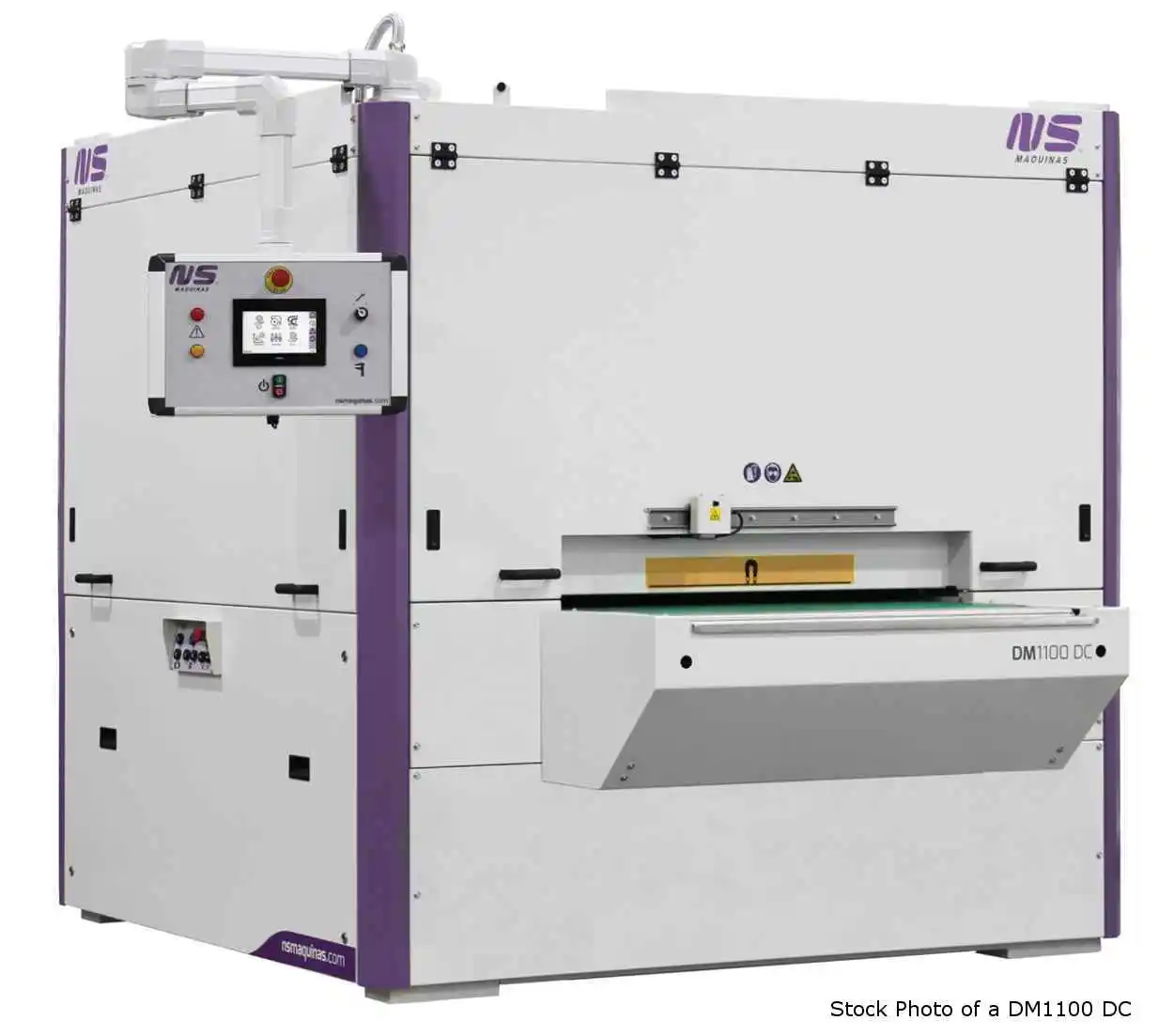

NEW NS MAQUINAS DM1600 DC

NS MAQUINAS (NEW) MODEL DM 1600 DC CROSSBELT
DEBURRING MACHINE

WORKING CAPACITY
- 1.5" - 62.9" WIDE
- 1.9" MINIMUM LENGTH
- 0.04" - 4-3/4" THICKNESS

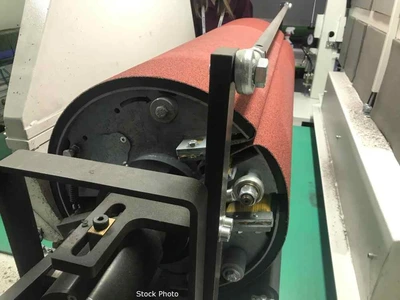

1ST STATION - DEBURRING DRUM
- 64.9" X 59.8" ABRASIVE
- 24 HP MOTOR
- 25" RPM

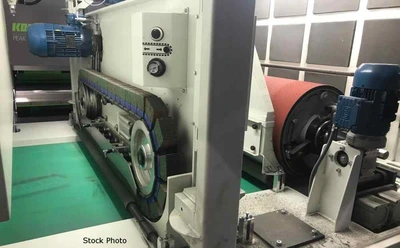

2ND STATION - CROSS BELTS
- 122 DEBURRING BLOCKS (61/CROSS BELT)
- TWO 5 HP MOTORS
- 18"/MINUTE
- PNEUMATIC V-BELT TENSIONING

FEATURES
- 0.02" TO 0.15"/MINUTE CONVEYOR BELT SPEED
- DEBURRS AND EDGE ROUNDS INSIDE AND OUTSIDE
CONTOURS OF THICK STEEL PARTS CUT BY LASER, PLASMA
OR OXYFUEL
- DEBURRING CONTACT DRUM REMOVES SLAG AND DROSS
- CROSS BELT HEAD PERFORMS EDGE ROUNDING
- MAGNETIC TRACK TO HOLD SMALL PARTS DURING
PROCESSING
- CONTROL PANEL WITH TOUCH SCREEN FOR
MATERIAL THICKNESS
CONVEYOR BELT SPEED
CONTACT DRUM GRINDING FORCE
PRESSURE FOR ROUNDING EDGES
- CONVEYOR BELT CLEANING BRUSH SYSTEM

OPTIONS AVAILABLE
- AS400 DUST COLLECTOR W/INTERNAL SPARK ARRESTOR
- TORIT DONALDSON CFO 3-6 3000 CFM DUST COLLECTOR
- 2 REPLACEMENT SANDING BLOCKS (122 BLOCKS)
- 122 REPLACEMENT SANDING BLOCKS (NO BELTS)
Power: 480 (3-Phase)
