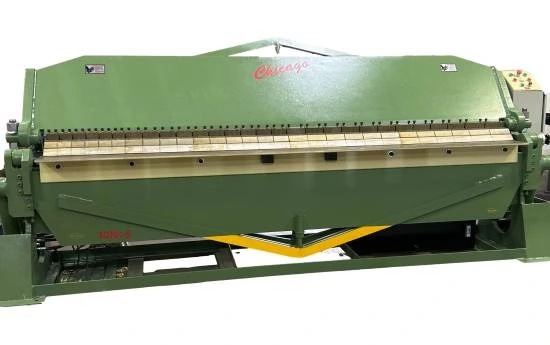

NEW CHICAGO DK HBPU 1010-6

CHICAGO DK (NEW) MODEL HBPU 1010-6 HYDRAULIC
POWERED BOX PAN BENDING BRAKE

120" BENDING LENGTH
10 GA CAPACITY - MILD STEEL*
14 GA CAPACITY - STAINLESS STEEL*
1" MINIMUM REVERSE BEND

* CAPACITY IS ACHIEVED WHEN USING THE ANGLE BAR
IN THE HIGH POSITION FORMING A 1" MINIMUM FLANGE

6" FINGER EXTENSION DEPTH
FINGERS WITH NOSE BAR
- (6) 3"
- (10) 4"
- (10) 5"
- (2) 6"
25.5" BACK GAUGE TRAVEL
- RACK PINION TYPE
- HAND-WHEEL MANUAL ADJUSTMENT
- INCH/CM SCALE
5 HP, 220/440 VOLT, 3 PHASE

STANDARD FEATURES
- REMOVABLE NOSE BARS
- BOLTED BOTTOM BAR
- COMPACT HYDRAULIC POWER UNIT
- ANGLE BAR
- 1" INSERT BAR
- OIL LEVEL SIGHT GAUGE
- CONTROL PANEL WITH
ON/OFF KEY SELECTOR SWITCH
BENDING LEAF UP/DOWN PUSHBUTTONS
CLAMP/UNCLAMP PUSHBUTTONS
MOTOR START PUSHBUTTONS
EMERGENCY STOP PUSHBUTTON
AUTOMATIC CYCLE PUSHBUTTON
- ELECTRIC FOOT SWITCH
- BEND ANGLE DIAL ADJUSTMENT
- MATERIAL THICKNESS DIAL ADJUSTMENT
- INCH CONTROL
- AUTOMATIC CYCLE

OPTIONS AVAILABLE
- POWER BACK GAUGE
Power: 220/440 (3-Phase)
