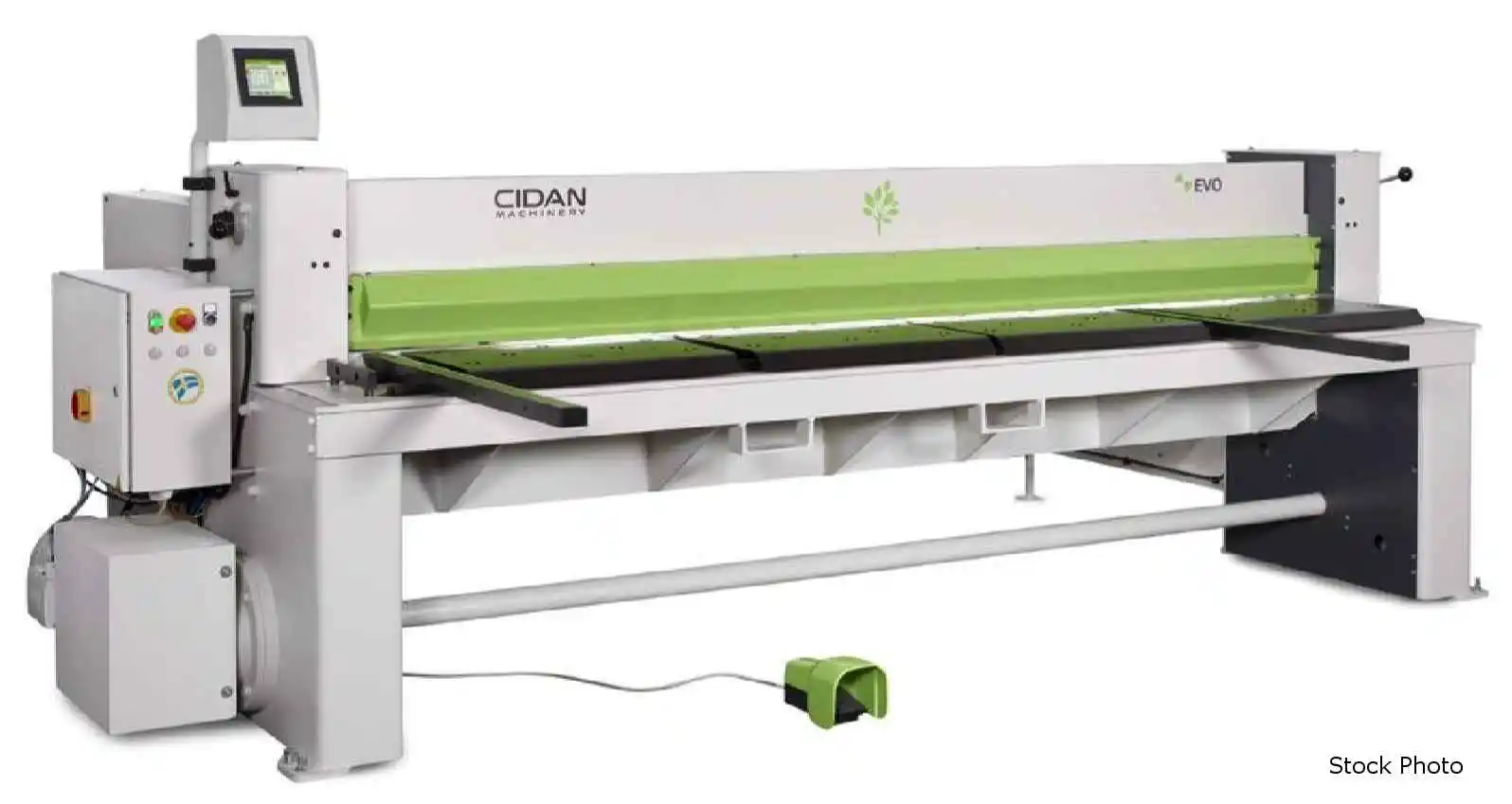

NEW CIDAN EVO 40

CIDAN (NEW) MODEL EVO 40 SQUARING SHEAR

161" CUTTING LENGTH
13 GAUGE MILD STEEL
0.145" ALUMINUM
16 GAUGE STAINLESS STEEL
26 CUTS PER MINUTE
CNC BACKGAUGE WITH CUTLINK TOUCHSCREEN CONTROL
- 0 TO 39.5"
- SAVE UP TO 50 PROGRAMS
- UP TO 99 DIMENSIONS PER PROGRAM
- 999 CUTS PER PROGRAM
59" SQUARING ARM

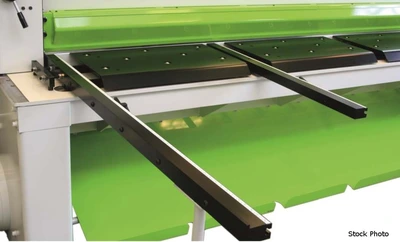

(2) 39.3" SUPPORT ARMS
PNUEMATIC HOLD DOWN
- AVOIDS MARKING ON SOFT MATERIAL
- ALLOWS MATERIAL 1.75" FROM SHEAR EDGE
LED CUTTING LIGHT

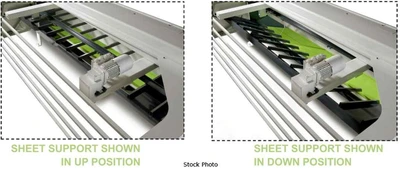

REAR SHEET SUPPORT
- PNEUMATICALLY OPERATED FOR MAXIMUM CONTROL
- CAN ADJUST SPEED BASED ON MATERIAL TYPE
- DROPS MATERIAL TO A RETURN PLATE AT FRONT
SAFETY BARS AT REAR OF SHEAR TO BLOCK CONTACT
MANUAL BLADE GAP ADJUSTMENT
- CLEAN CUT FROM 29 GAUGE TO MAX CAPACITY

OPTIONS AVAILABLE - PRICE ON REQUEST
- INSTALLATION AND TRAINING

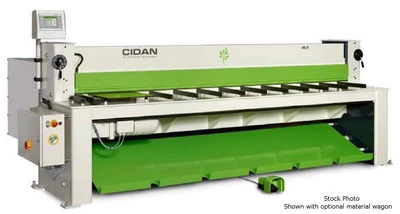

- MATERIAL WAGON
- 29.5" CNC BACK GAUGE WITH CUTLINK CONTROL
IN LIEU OF 39.4"
- PNEUMATIC REAR DROP (IN LIEU OF FRONT RETURN)
- 78.7" SQUARING ARM
- 118.1" SQUARING ARM
- 39.4" SUPPORT ARM
- 59" SUPPORT ARM
- T-GROOVE AND TILTING STOP
- PROTRACTOR SQUARING ARM
- BALLCASTERS ON FRONT TABLE
- EXTRA SET OF SHEAR BLADES
Power: 208/230/460/480 (3-Phase)
