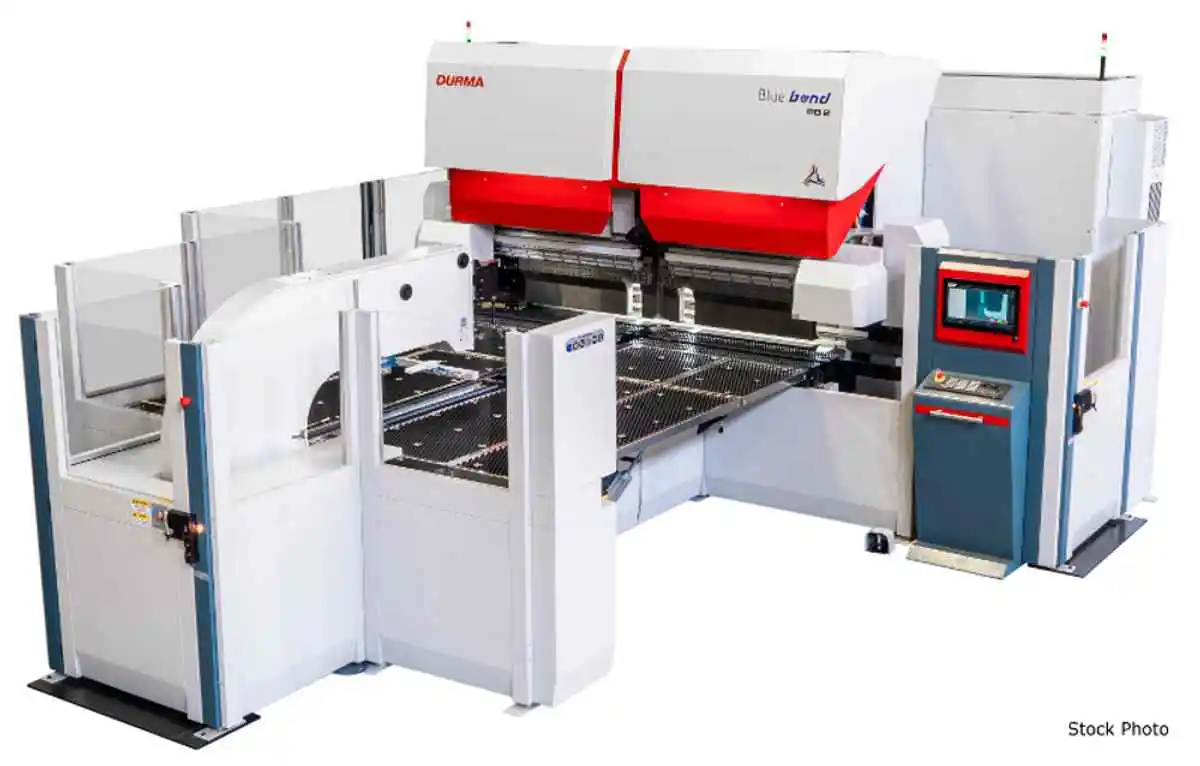

DURMA (NEW) MODEL PB 2 PANEL BENDER
13.8" TO 88.6" BENDING LENGTH
5' X 8.5' SHEET
6" MINIMUM BENDING WIDTH
10" MAXIMUM BENDING HEIGHT
2" MAXIMUM BENDING DEPTH
130 DEGREE MAXIMUM DIAGONAL
320 KN BENDING FORCE
520 KN HOLDING FORCE
MAXIMUM SHEET THICKNESS
- 0.1" FOR Fe 410 N/mm2 MATERIAL
- 0.07" FOR INOX 600 N/mm2 MATERIAL
- 0.14" FOR ALUMINUM 260 N/mm2 MATERIAL
0.02" MINIMUM SHEET THICKNESS
+/- 135 DEGREE MAXIMUM 1 STEP BENDING ANGLE
FEATURES
- UNIVERSAL BENDING/HOLDING TOOLS
- CAD-CAM SOFTWARE ACTIVATOR (DONGLE)
- SIEMENS SINUMERIK 840 D SL WINDOWS 7 OP SYSTEM
- REMOTE DIAGNOSTIC FUNCTION
- NETWORK, ETHERNET COMMUNICATION
- PROGRAMMING ON THE CONTROL PANEL
- AUTOMATIC TOOL SETUP (ATS)
- STANDARD CLAMP FOR MANIPULATOR
- CROWNING BENDING DEVICE
- CROWNING HOLDER DEVICE
- BRUSH TABLE
- USB DRIVER
- AIR CONDITIONED ELECTRICAL CABINET
- WARNING LAMP
- BARRIERS FOR CE
- WORLD STANDARD ELECTRICAL EQUIPMENT
OPTIONS AVAILABLE - PRICE ON REQUEST
- AUXILIARY BENDING DEVICE
- AUXILIARY BENDING TOOLS AND BRACKETS
- AUXILIARY HOLDING DEVICE
- AUXILIARY HOLDING TOOLS
- OVER CLAMP
- NARROW PART FEEDER
- ENGRAVER
- WORKING TABLE (BRUSH BALLS)
- LOADING / UNLOADING SYSTEM
- TRANSFORMER
- UPS FOR MACHINE (30 KvA 10 min)
Power: 400
