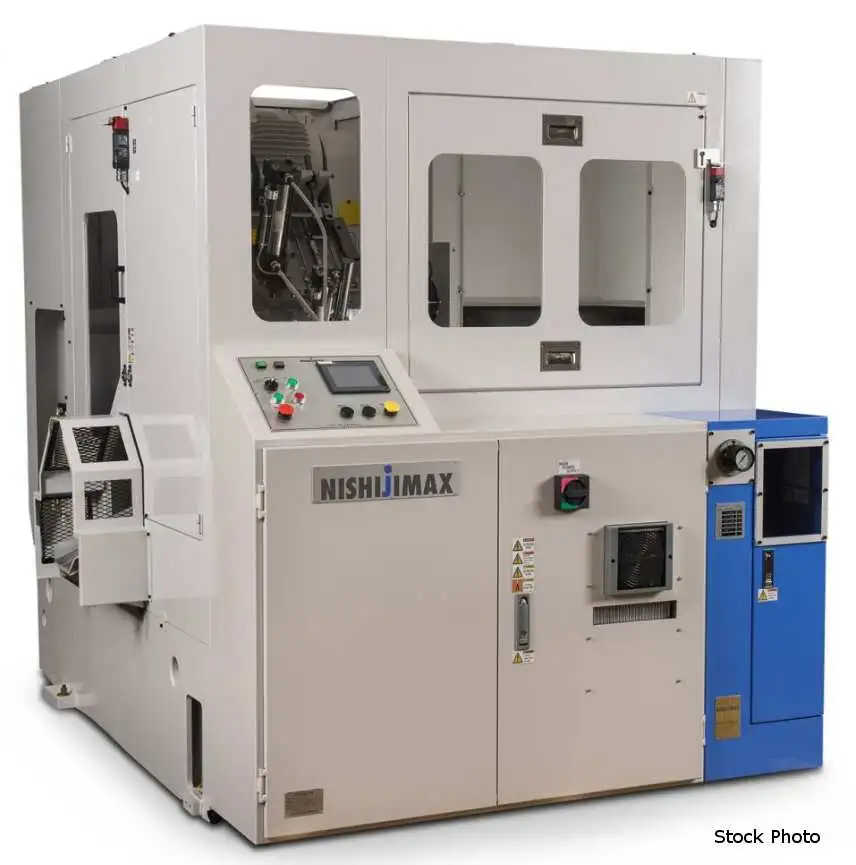

NEW PAT MOONEY NISHIJIMAX NHC-160

NISHIJIMAX (NEW) MODEL NHC-160 CNC CARBIDE
COLD SAW

CUTTING RANGE
- 1.38" TO 6.3" DIAMETER
- 19/32" TO 118" LENGTH
- 19/32" TO 3-3/4" TRIM CUT LENGTH
- 20' TO 24' SUPPLY BAR LENGTH
21 HP MOTOR
30-115 RPM BLADE SPEEDS
FREQROL INVERTER DRIVE
PRECISION TORQUE CONTROL
0.098" KERF
POWDER METAL SAW BLADE BRAKE
NC SAW SPINDLE FEED AXIS
- MITSUBISHI SERVO DRIVE AC SERVO MOTOR
- PRECISION BALL SCREW
- CHIP LOAD ENTRY W/AUTO CALCULATION OF FEED RATE

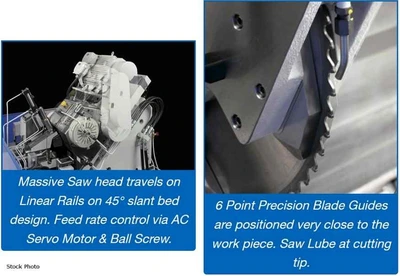

SAW BLADE HOUSING WITH 6 POINT CONTACT
PRECISION-DROP SAW BLADE LUBRICATION

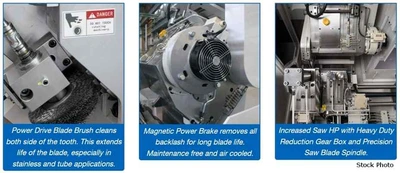

BLADE BRUSH DRIVEN FROM THE GEARBOX

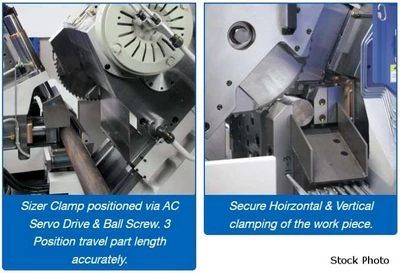

4-POINT MATERIAL CLAMPING SYSTEM
NC MATERIAL INDEX AXIS
- 3 HP AC SERVO MOTOR
- ENCODER
- MITSUBISHI SERVO DRIVE
- PRECISION BALL SCREW
- GRIPPER VISE
HYDRAULIC SYSTEM
- 3 HP MOTOR
- 2.6 GALLON TANK

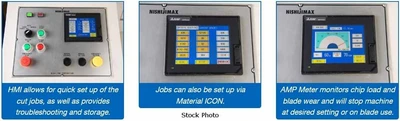

TOUCH SCREEN PANEL
- LESS THAN 5 MINUTES TO SET UP NEW JOB
- (NO MECHANICAL CHANGES)
- EASY-TO-USE OPERATOR SCREEN
- PERFORMANCE DATA
- TECHNICAL SUPPORT AND SELF-DIAGNOSTICS
- DISPLAYS PART COUNTS, BIN COUNTS AND BLADE LIFE
INTEGRATED INCLINED LOADING MAGAZINE BUNDLE RACK

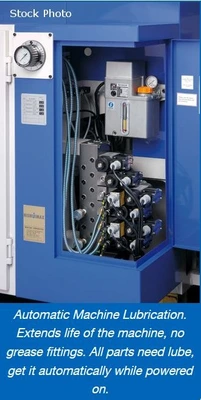

AUTOMATIC LUBRICATION OF MOVING PARTS
- MACHINE SHUTS DOWN IF OIL RESERVE IS EMPTY
AUTOMATIC SEPARATION OF TRIM CUT AND REMNANT END
21 HP, 200 VOLTS, 3 PHASE

OPTIONS AVAILABLE - PRICE ON REQUEST
- AUTOMATIC CHIP CONVEYOR
Power: 200 (3-Phase)
