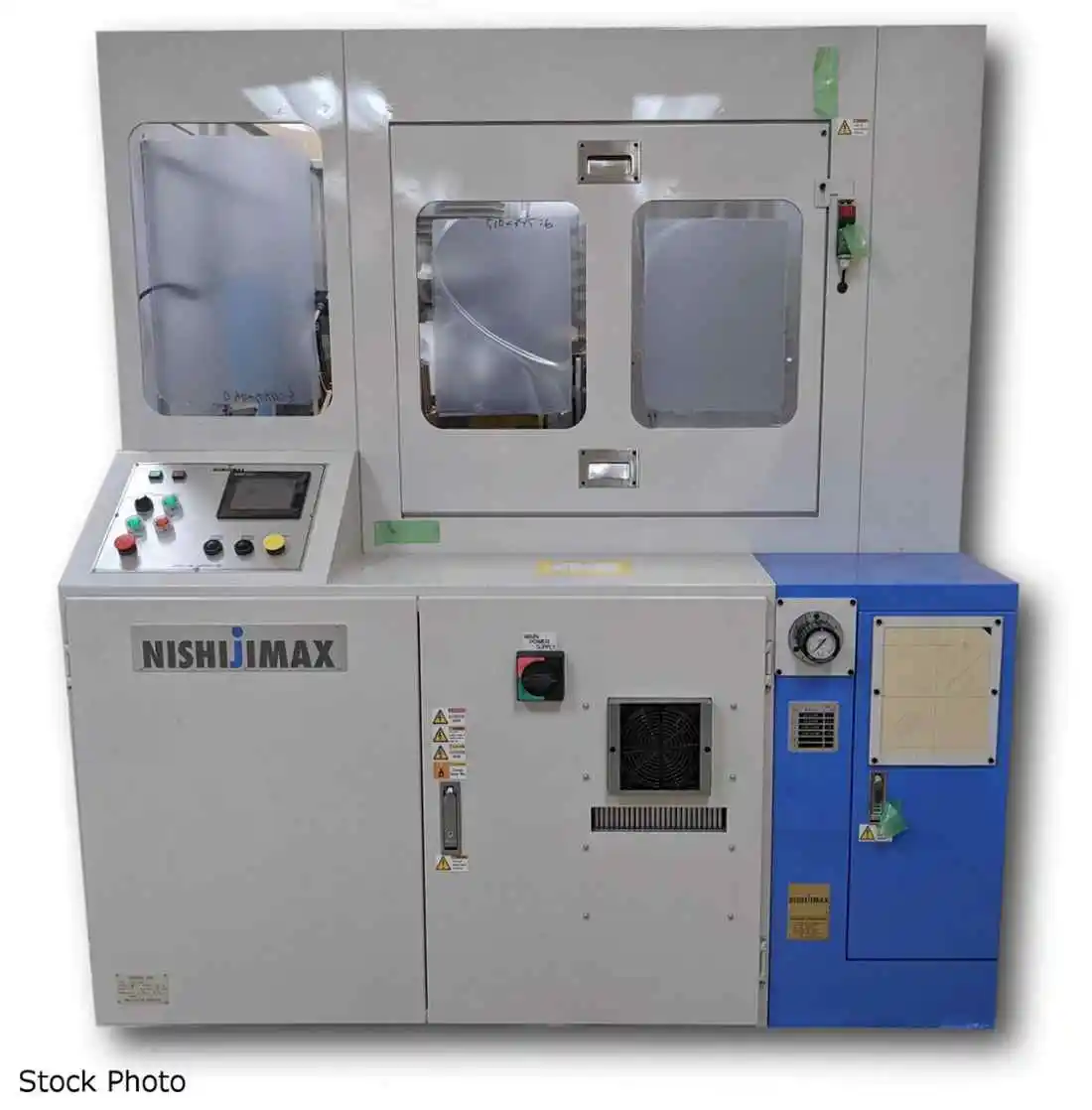

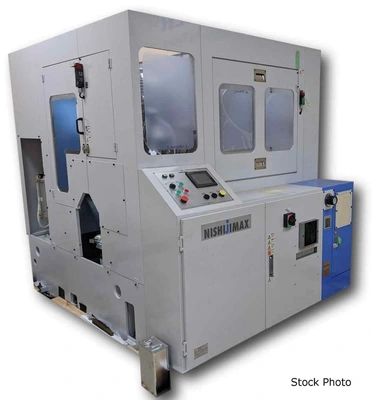

NEW PAT MOONEY NISHIJIMAX NHC-110
Overview
Specifications
| Dimensions | 109 X 75 X 68 | 109 X 75 X 68 |
|---|---|---|
| Weight | 11,000 | 11,000 |
NISHIJIMAX (NEW) MODEL NHC-110 CNC CARBIDE
COLD SAW
SAW BLADE
- 14" DIAMETER
- 1.9" BORE
- 0.1" KERF
- 60, 80 100 TEETH
CUTTING RANGE
- 0.625" TO 4.33" DIAMETER
- 19/32" TO 118" LENGTH
- 19/32" TO 3-3/4" TRIM CUT LENGTH
- 20' TO 24' SUPPLY BAR LENGTH
- SIGNAL EXIT RAMP FOR TRIM/REMNANT SEPARATION
SAW SPINDLE DRIVE
- 21 HP MOTOR
- 50-130 RPM BLADE SPEEDS
- FREQROL INVERTER DRIVE
- PRECISION TORQUE CONTROL
POWDER METAL SAW BLADE BRAKE
- ELIMINATES VIBRATION AS BLADE ENTERS THE CUT

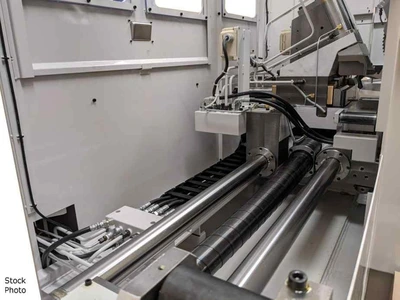

NC SAW SPINDLE FEED AXIS
- MITSUBISHI SERVO DRIVE AC SERVO MOTOR
- PRECISION BALL SCREW
- CHIP LOAD ENTRY W/AUTO CALCULATION OF FEED RATE
SAW BLADE HOUSING
- 6 POINT CONTACT TO ELIMINATE WOBBLE/DEFLECTION

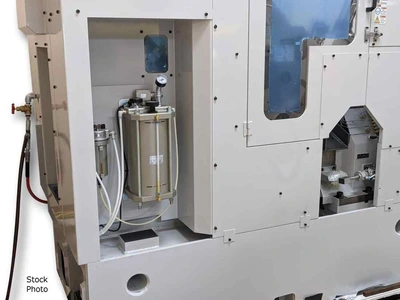

PRECISION-DROP SAW BLADE LUBRICATION
- USED DURING THE SAWING OF MATERIAL
BLADE BRUSH DRIVEN FROM THE GEARBOX
- RPM IS MATCHED TO BLADE RPM
4-POINT MATERIAL CLAMPING SYSTEM
- HORIZONTAL AND VERTICAL CLAMPS
NC MATERIAL INDEX AXIS
- 2 HP AC SERVO MOTOR
- ENCODER
- MITSUBISHI SERVO DRIVE
- PRECISION BALL SCREW
- GRIPPER VISE
HYDRAULIC SYSTEM
- 3 HP MOTOR
- 2.6 GALLON TANK

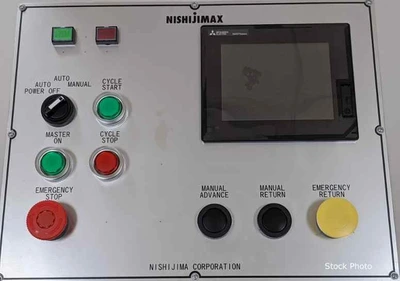

TOUCH SCREEN PANEL
- LESS THAN 5 MINUTES TO SET UP NEW JOB
NO MECHANICAL CHANGES
- EASY-TO-USE OPERATOR SCREEN
- PERFORMANCE DATA
- TECHNICAL SUPPORT AND SELF-DIAGNOSTICS
- DISPLAYS PART COUNTS, BIN COUNTS AND BLADE LIFE
INTEGRATED INCLINED LOADING TABLE AND BUNDLE RACK
- FULLY AUTOMATIC CYCLE FOR MATERIAL UP TO 24'
AUTOMATIC LUBRICATION OF MOVING PARTS
- MACHINE SHUTS DOWN IF OIL RESERVE IS EMPTY
21 HP, 200 VOLTS, 3 PHASE
OPTIONS AVAILABLE - PRICE ON REQUEST
- TRIM CUT ZERO SOFTWARE
- BACKGAUGE SOFTWARE
- MIST COLLECTOR
- WEIGHT CHECK SYSTEM
- NHC-PLUS1 FOR REMNANT REDUCTION
- LOAD TABLE FOR MATERIAL GREATER THAN 24'
- BUNDLE RACK
- BUNDLE RACK WITH HOLDERS
- 2 POWER ROLLERS FOR LOAD TABLE
- ETHERNET MODULE FOR REMOTE LOG IN
- SOFTWARE/APP FOR DATA COLLECTION
- PRODUCTION REPORTING
- MIST COLLECTION WITH TOP MACHINE COVER
- REMNANT REDUCTION CLAMPS (AT 2")
- EXIT TRANSFER PLATE
- PART EXIT CONVEYOR
- AUTOMATIC CHIP CONVEYOR
Power: 200 (3-Phase)
