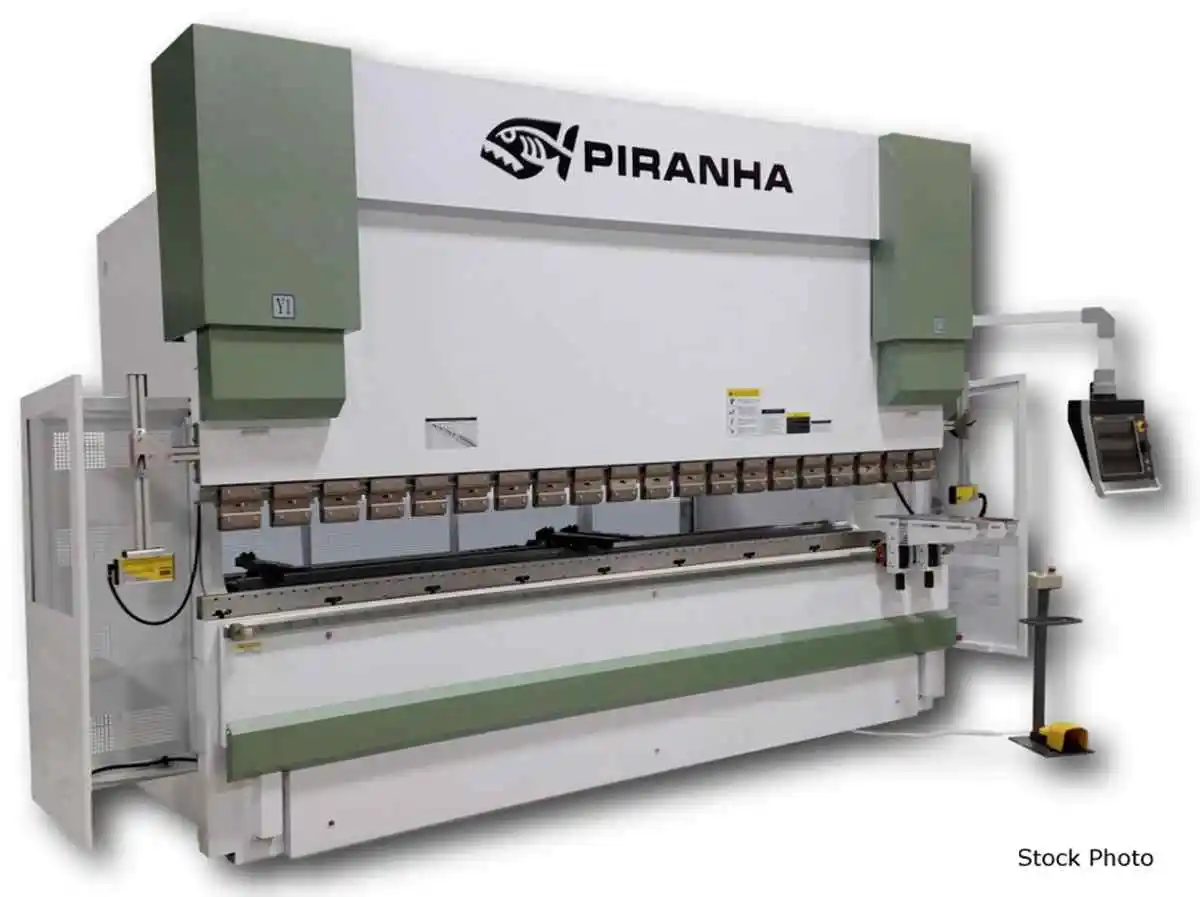

NEW PIRANHA 135-10

PIRANHA (NEW) MODEL 135-10 PRECISION CNC PRESS
BRAKE

135 TON CAPACITY
126" LENGTH
2.36" DIE RAIL HEIGHT
106.3" BETWEEN UPRIGHTS
7.9" RAM
18.5" OPEN HEIGHT (WITH DIE RAIL WITHOUT CLAMPS)
16.9" THROAT
UP TO 6+1 CNC AXIS WITH DELEM CONTROL
425 IPM RAM APPROACH SPEED
31 IPM RAM WORK SPEED
354 IPM RAM RETURN SPEED
0.0004" REPEATABILITY
BACK GAUGE X
- 19.7" STROKE
- 0-38.5" WORK PIECE
- 708 IPM RUNNING SPEED
- 0.001" REPOSITION
100 GALLON OIL CAPACITY
20 HP

Y1 AND Y2 CONTROL RAM MOVEMENT
X (OR X1 AND X2) CONTROL BG FRONT REAR MOVEMENT
X1 PRIME CONTROLS X1 ONLY 3.94" +/-
R (OR R1 AND R2) CONTROL BACK GAUGE BAR UP DOWN
Z1 AND Z1 CONTROL BACK GAUGE FINGERS LEFT RIGHT
S CONTROLS COMPENSATION CROWNING SYSTEM
