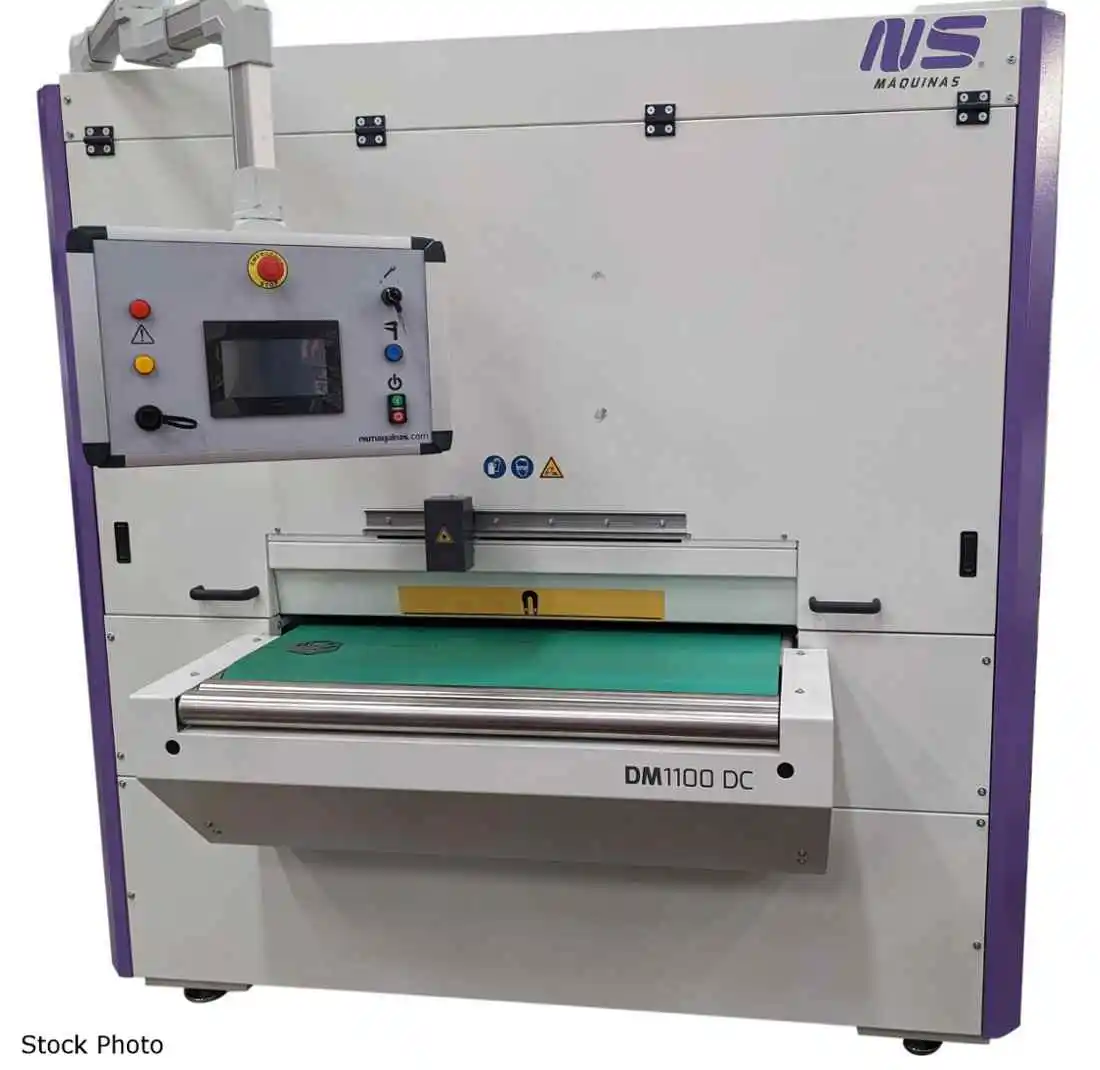

NEW NS MAQUINAS DM1100 DC

NS MAQUINAS (NEW) MODEL DM 1100 DC CROSSBELT
DEBURRING MACHINE

WORKING CAPACITY
- 1.57" - 43.3" WIDE
- 1.97" MINIMUM LENGTH (NO MAXIMUM LENGTH)
- 0.04" - 4-3/4" THICKNESS

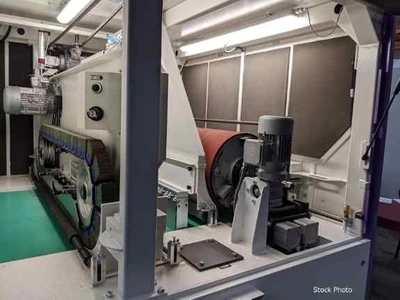

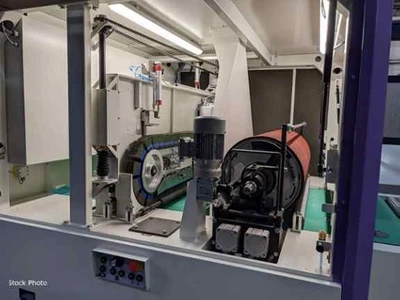

1ST STATION - DEBURRING DRUM
- 45.28" X 59.84" ABRASIVE DIMENSIONS
- 17" DIAMETER X 20 SH HARDNESS
- 0.0787" DRUM OSCILLATION
- 15 HP MOTOR

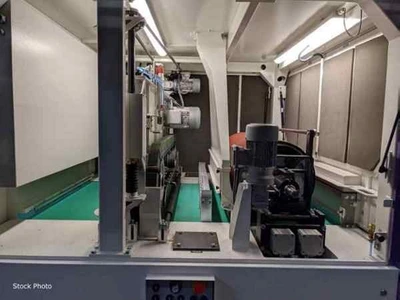

2ND STATION - CROSS BELTS
- 2 V-BELTS WITH ABRASIVE BLOCKS RUNNING IN
OPPOSITE DIRECTIONS
- 84 DEBURRING BLOCKS (42 PER CROSS BELT)
- PNEUMATIC V-BELT TENSIONING
- (2) 4 HP CROSS SANDING BELT MOTORS

19 TO 157"/MINUTE CONVEYOR BELT SPEED

DEBURRS AND EDGE ROUNDS INSIDE OUTSIDE CONTOURS
OF THICK STEEL PARTS CUT BY LASER, PLASMA OR
OXYFUEL

DEBURRING CONTACT DRUM REMOVES SLAG AND DROSS
CROSS BELT HEAD PERFORMS EDGE ROUNDING

MAGNETIC TRACK TO HOLD SMALL PARTS DURING
PROCESSING

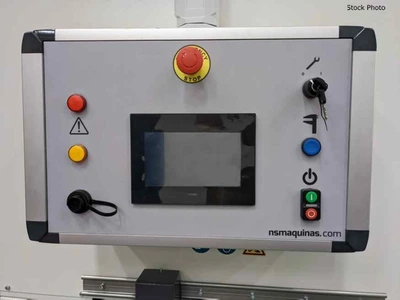

CONTROL PANEL WITH TOUCH SCREEN FOR
- MATERIAL THICKNESS
- CONVEYOR BELT SPEED
- CONTACT DRUM GRINDING FORCE
- PRESSURE FOR ROUNDING EDGES

CONVEYOR BELT CLEANING BRUSH SYSTEM

OPTIONS AVAILABLE
- AS400 DUST EXTRACTOR W/INTERNAL SPARK ARRESTOR
- TORIT DONALDSON CFO 3-6 3000 CFM DUST COLLECTOR
- 2 REPLACEMENT SANDING BELTS (WITH 84 BLOCKS)
- 84 REPLACEMENT SANDING BLOCKS (NO BELTS)
