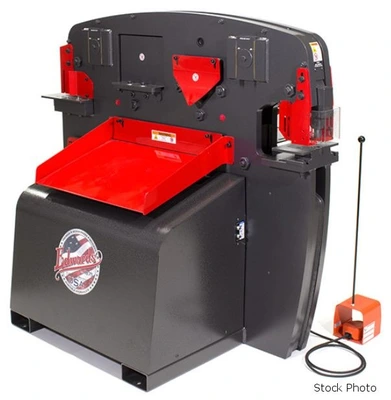

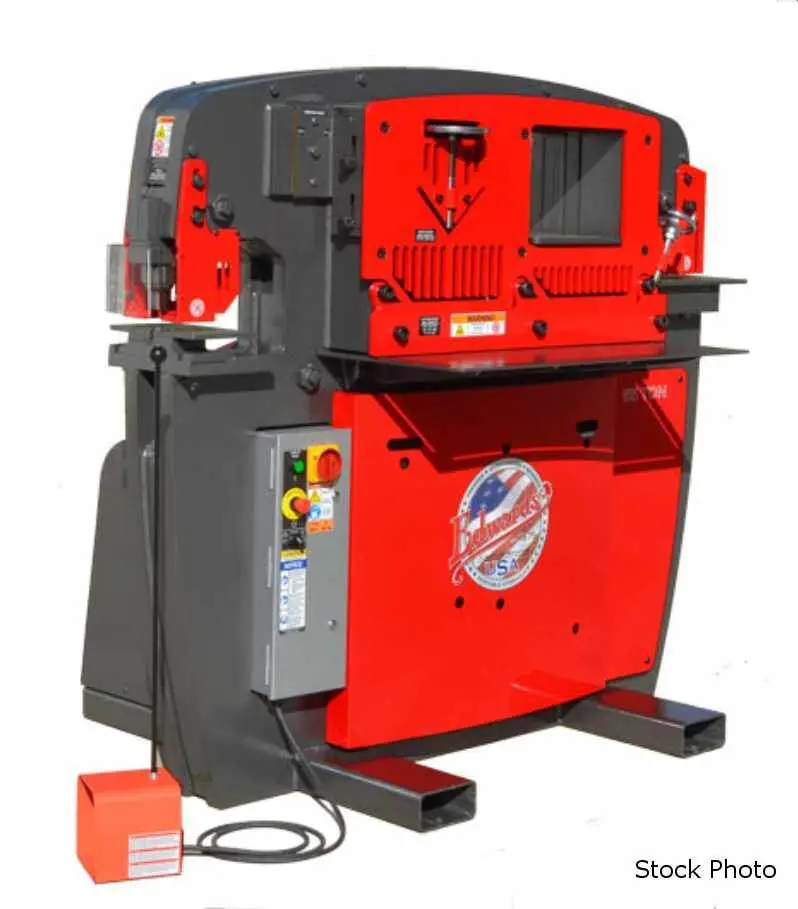

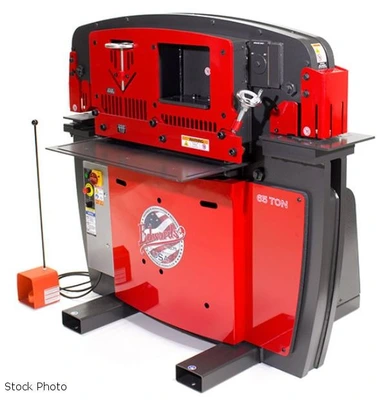

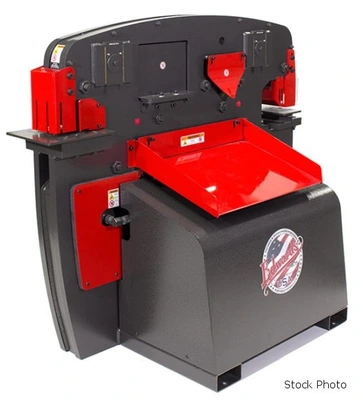

NEW EDWARDS IW65-3P230 65-TON

EDWARDS (NEW) MODEL IW65-3P230 65-TON IRONWORKER
WITH POWERLINK SYSTEM AND 5 STATIONS

PUNCH
- MAX CAPACITY-3/4" PLATE . 1-1/16" DIA.
- 36-9/16" WORK HEIGHT

FLAT BAR SHEAR
- 3/8" X 24" MAXIMUM WIDTH
- 1/2" X 14" OR 1" X 4" MAXIMUM THICKNESS
- 1" MAXIMUM ROUND
- 1" MAXIMUM SQUARE
- 34-1/2" WORK HEIGHT

ANGLE SHEAR
- 5" X 5" X 3/8" MAXIMUM SIZE
OR 4" X 4" X 3/8"
- 39-1/2" WORK HEIGHT

COPER/NOTCHER
- 2-1/2" X 5" X 3/8" MAXIMUM CAPACITY
- 39-1/2" WORK HEIGHT

OPEN CAVITY
- 12" X 8-3/4" SPECS (WIDTH X HEIGHT)
- 43" WORK HEIGHT

GENERAL SPECIFICATONS
- 65 TON RATED CAPACITY
- 9-3/4" THROAT DEPTH
- 8-3/4" OPEN HEIGHT
- 6-15/16" SHUT HEIGHT
- 1-13/16" STROKE
- 2 SECONDS CYCLE TIME
- 7.5 HP, 230 VOLT, 3 PHASE ELECTRIC MOTOR
- 1765 RPM
- 22 AMP
- 10-1/2 GPM-2 STAGE HYDRAULIC PUMP
- 3500 PSI VALVE PRESSURE
- 17 GALLONS RESERVOIR
- 3-1/2" RAM CYLINDER

STANDARD FEATURES
- COPER/NOTCHER
- ELECTRIC STROKE CONTROL
- ELECTRIC FOOT PEDAL
- PEDESTAL DIE TABLE

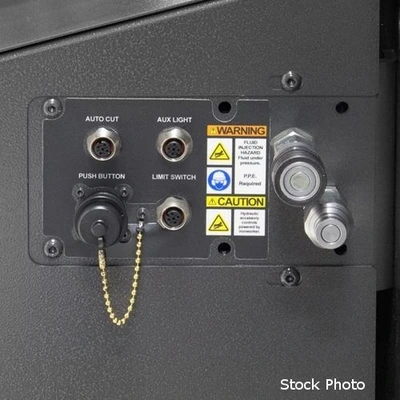

- AUXILIARY M12 POWER PORT

OPTION INCLUDED
- POWERLINK SYSTEM

ELECTRIC MOTOR OPTIONS -PRICE ON REQUEST
- 7.5 HP, 3 PHASE, 460 VOLT, 1765 RPM, 11 AMP
- 7.5 HP, 3 PHASE, 575 VOLT, 1770 RPM, 8 AMP
- 5 HP, 1PHASE, 230 VOLT, 1725 RPM, 23 AMP
- 7.5 HP, 1 PHASE, 230 VOLT, 1765 RPM, 36 AMP
REQUIRED FOR 1 PH HYDRAULIC ACCESSORY PACK

OPTIONS AVAILABLE - PRICE ON REQUEST
- HYDRAULIC ACCESSORY PACKAGE
- ACCESSORY LIGHT
- AUTO CUT
- ANGLE NOTCHER 3" X 3" X 1/4"
- BRAKE WITH 4-WAY DIE 1/16" 1/8" 3/16" 1/4"
- MULTI SHEAR
- PIPE NOTCHER HOUSING
- QUICK CHANGE PUNCH COUPLING
- ROD SHEAR AND HOUSING
1/4", 3/8", 1/2", 5/8", 3/4", 1"
Power: 230 (3-Phase)
