| Dimensions | 175 X 101 X 113 | 175 X 101 X 113 |
| Weight | 15,400 | 15,400 |

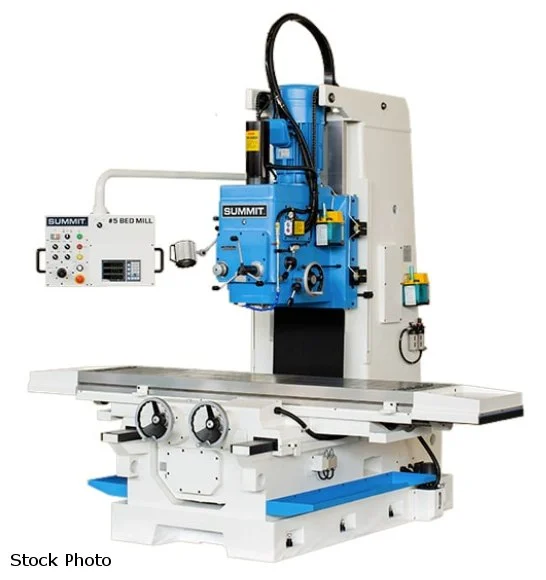

SUMMIT (NEW) MODEL 5 VERTICAL BED MILL

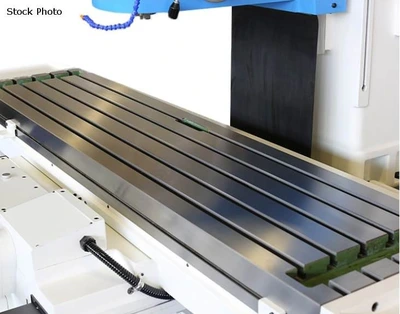

TABLE
- 19.6" X 86.6" WORKING SURFACE
- 59" LONGITUDINAL (X AXIS) TRAVEL
- 23.6" CROSS (Y AXIS) TRAVEL
- 33.9" FROM TABLE TOP TO FLOOR
- 5 T-SLOTS
- INFINITELY VARIABLE FEEDS
- 1.1 - 39.4 IPM LONGITUDINAL CROSS FEEDS
- 130 IPM RAPID TRAVERSE
- 2,640 LB MAXIMUM TABLE LOAD
- 2 HP FEED MOTOR

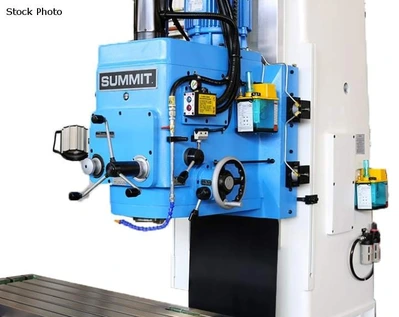

VERTICAL SPINDLE HEAD
- 12 SPINDLE SPEEDS
- 45 - 1,500 SPINDLE SPEEDS
- INFINITELY VARIABLE SPINDLE FEEDS
- 0.002 - 0.008 IPR SPINDLE FEEDS
- 27.5" VERTICAL HEAD (Z AXIS) TRAVEL
- 3.9" - 31.5" SPINDLE NOSE TO TABLE
- 21.6" SPINDLE CENTER TO COLUMN
- #50 SPINDLE TAPER
- 20 HP MOTOR
STANDARD FEATURES
- AUTOMATIC LUBRICATION
- CONVENIENTLY LOCATED OPERATOR'S PANEL
- RAPID TRAVERSE
- BALL SCREWS ON X AND Y
ACCESSORIES INCLUDED
- AIR POWER DRAWBAR
- COOLANT
- WORK LIGHT
- SPANNERS AND WRENCHES
- 3 AXIS DRO
OPTIONS AVAILABLE - PRICE ON REQUEST
- HORIZONTAL SPINDLE HEAD WITH AIR POWER DRAW BAR
- EXTENDED TRAVEL TABLE (106")
- TRANSFORMER FOR VOLTAGE OTHER THAN 220
Power: 220 (3-Phase)
