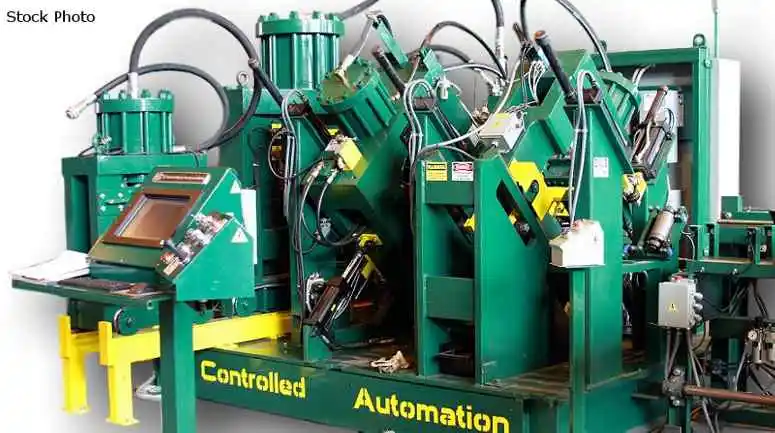

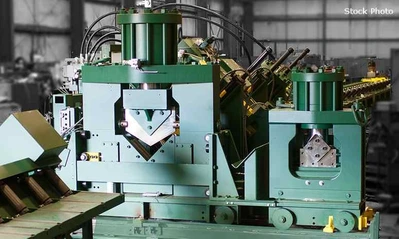

NEW CONTROLLED AUTOMATION ABL-100HS

CONTROLLED AUTOMATION (NEW) MODEL ABL-100HS
SIGNATURE EDITION ANGLE AND FLAT BAR LINE

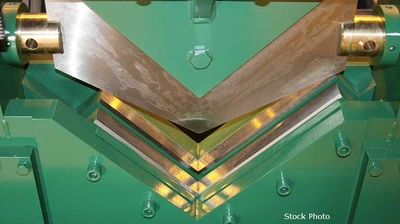

SINGLE-CUT AND/OR DOUBLE-CUT SHEAR

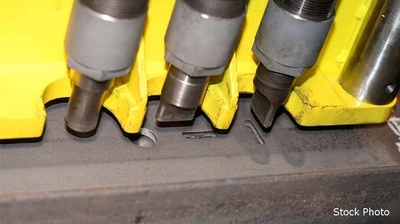

HOLE PUNCHING ON BOTH LEGS
- SINGLE, DOUBLE OR TRIPLE GAG
POWERED X-PROBE OR WHEEL-MEASURE MEASURING SYSTEM
0 TO 250 FPM
+/- 1/32" POSITIONING ACCURACY
8" X 8" X 1" MAXIMUM ANGLE
1" X 1" X 1/8" MINIMUM ANGLE (WITH PINCH-WHEEL)
1-1/2" X 1-1/2" X 1/4" MINIMUM ANGLE (WITH PROBE)
12" X 1" MAXIMUM FLAT BAR
1/4" X 2-1/4" MINIMUM FLAT BAR (WITH PROBE)
1/4" X 2" MINIMUM FLAT BAR (WITH PINCH-WHEEL)
12" MAXIMUM CHANNEL (WEB PUNCHING MARKING ONLY)
3" MINIMUM CHANNEL (WEB PUNCHING MARKING ONLY)
143 TON PUNCH CAPACITY
1-9/16" MAXIMUM HOLE SIZE
SICAM SOFTWARE

FEATURES
- HIGH-SPEED SERVO MOTOR
- CONTINUOUS PROBING
- CONTINUOUS CLAMPING
- VALVE POSITIONING SOFTWARE
- RACK AND PINION MEASUREMENT SYSTEM

OPTIONS AVAILABLE - PRICE ON REQUEST
- 143 TON SINGLE, DOUBLE OR TRIPLE PUNCHES
- SINGLE OR DOUBLE-CUT SHEAR 215-425 TONS
- DUAL SHEAR MACHINE MODELS
- LENGTH MEASUREMENT OPTIONS
- PART MAKING
- STENCILING
