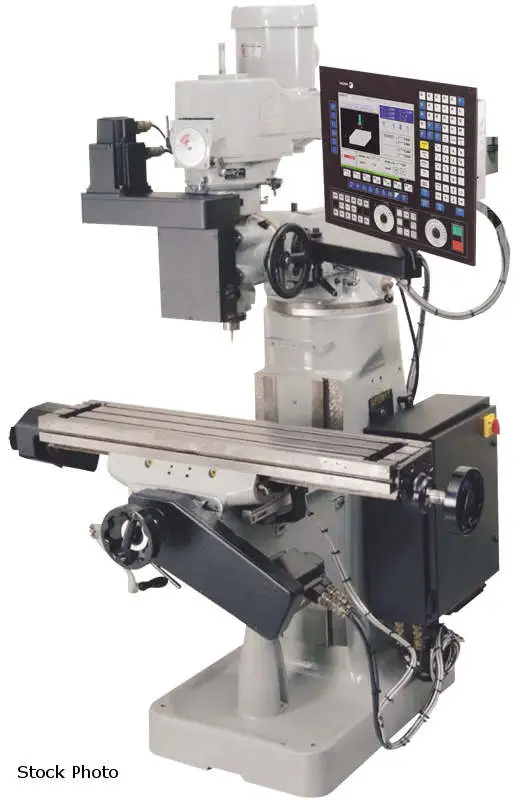

NEW SHARP LMV-FC-3

SHARP (NEW) MODEL LMV-FC-3 VERTICAL MILL
WITH 3-AXES TEACH-IN FAGOR TURNKEY CNC CONTROL

CAPACITY
- TRAVELS 25" X, 11" Y, 12" RAM, 5" Z, 16" KNEE
- 6-3/4" TO 18-1/2" SPINDLE TO COLUMN
- 2-1/8" TO 18" SPINDLE NOSE TO TABLE
TABLE
- 9" X 42" WORKING SURFACE
- (3) 5/8" T-SLOTS WITH 2.5" PITCH
SPINDLE
- 3 HP, 220 VOLTS, 3 PHASE
- R-8 NOSE TAPER
- 65-4500 RPM VARIABLE SPEED DRIVE
- 0.0015, 0.003, 0.006 IPM QUILL FEED
- 45 DEGREE HEAD TILT (LEFT TO RIGHT)
- 45 DEGREE HEAD TILT (UP AND DOWN)

FEATURES

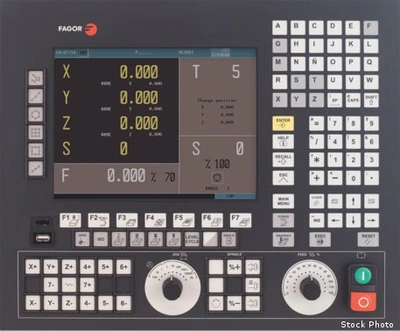

- FAGOR TURNKEY CNC SYSTEM
- SERVO DRIVE SYSTEM (3 AXES)
- PRECISION GROUND BALLSCREWS
- 3-AXES DRO (TABLE, SADDLE, QUILL)
- SELF-LUBRICATING MOTOR SHAFT
- PRECISION GROUND GIBS
- ABEC-7 SUPER PRECISION SPINDLE BEARING
- ROLLER BEARING SUPPORTS
- HARD-CHROMED VARIABLE DRIVE PULLEY
- 1-PIECE MEEHANITE CASTING
- CROSS WAY COVER
- DUAL COOLING FANS
- HARD-CHROMED WAYS
- MANUAL DRAWBAR
- AUTOMATIC LUBE SYSTEM
- FRONT AND REAR WAY COVERS
- DVS HEAD
- TOOL KIT

OPTIONS AVAILABLE - PRICE ON REQUEST
- 6" KURT VISE WITH SWIVEL BASE
- DRILL CHUCK
- POWER KNEEL
- COOLANT SYSTEM WITH CHIP PAN AT BASE
- MAXI-TORQUE RITE POWER DRAWBAR
- R-8 COLLECT (SET OF 11) 1/8" - 3/4" BY 1/16"
- CLAMPING KIT (52 PIECE/STEEL RACK)
- 6" RISER BLOCK
- HALOGEN WORK LIGHT
- 440 VOLT TRANSFORMER
- 4TH AXIS DRO FEEDBACK (FOR INDEX TABLE OR KNEE)

OPTIONS FOR FAGOR CNC CONTROL
- SPINDLE INTERFACE
- COOLANT INTERFACE
- 110 VOLT TRANSFORMER
- REMOTE HAND WHEEL
- ETHERNET PORT
- MEMORY
Power: 220/440 (3-Phase)
