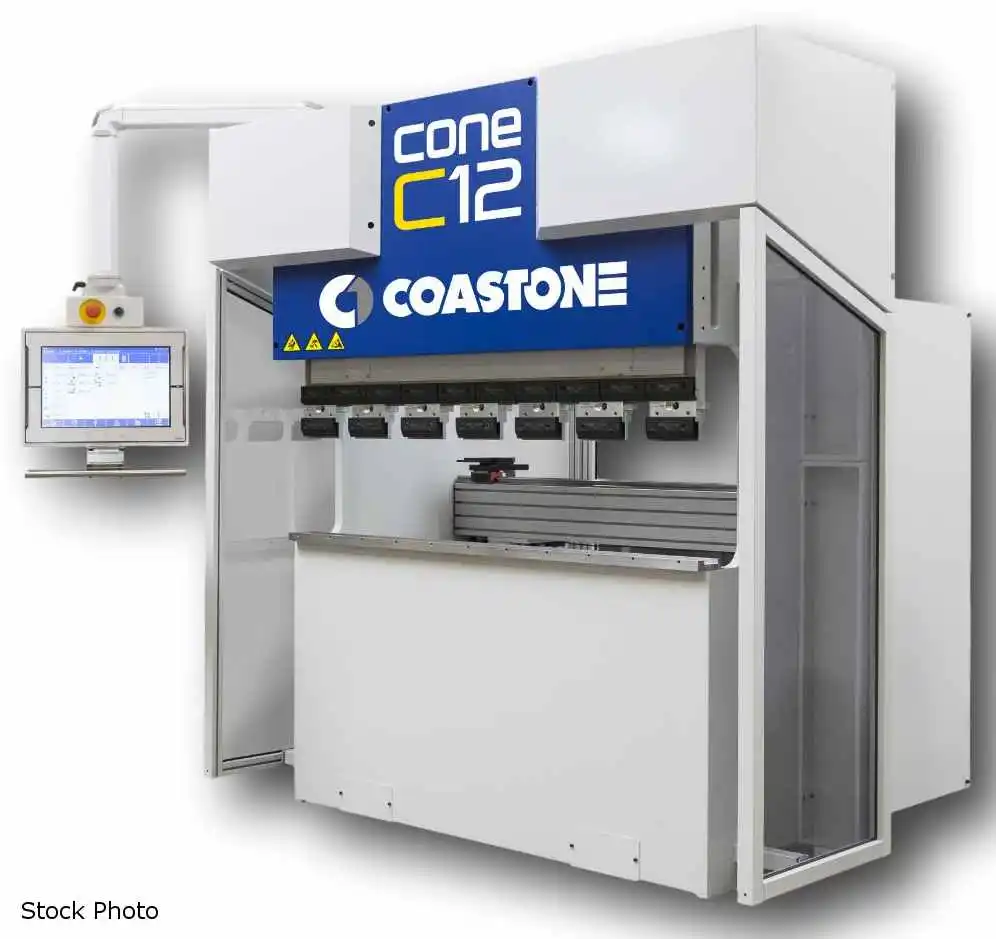

NEW COASTONE C-12

COASTONE (NEW) MODEL C-12 SERVO-ELECTRIC PRESS
BRAKE

48 TON CAPACITY
51" BENDING LENGTH
48" BETWEEN FRAMES
5.9" THROAT
19.68" OPEN HEIGHT

9.84" Y-AXIS STROKE LENGTH
236 IPM Y-AXIS APPROACH/RETURN SPEED
23.6 IPM Y-AXIS FORMING SPEED
+/- 0.0000787" Y-AXIS REPEATING ACCURACY

23.62" X-AXIS MOVEMENT
19.69 IPS X-AXIS SPEED
+/- 0.00197" X-AXIS REPEATING ACCURACY

7.87" R-AXIS MOVEMENT
236 IPM R-AXIS SPEED

OMRON CONTROL
- 250 JOB STORAGE WITH 8 BENDS PER JOB
- 50 UPPER TOOL STORAGE AND 50 LOWER TOOL STORAGE
- ALPHANUMERIC JOB AND TOOL STORAGE

13.4 HP MAIN SERVO MOTORS (YASKAWA/PANASONIC)

OPTIONS AVAILABLE - PRICE ON REQUEST
- Z1, Z2,AXIS -INDEPENDENT FINGER PROGRAMMABILITY
- DELTA X-AXIS (1 FINGER MODES TOWARD DIE +/- 2")
- TILTING, ADJUSTABLE FRONT TABLE WITH LIGHT
