| Dimensions | 58 X 68 X 143 | 58 X 68 X 143 |
| Weight | 7,150 | 7,150 |

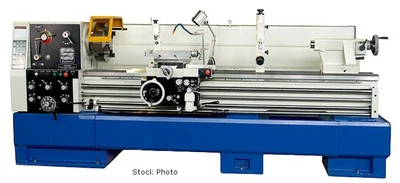

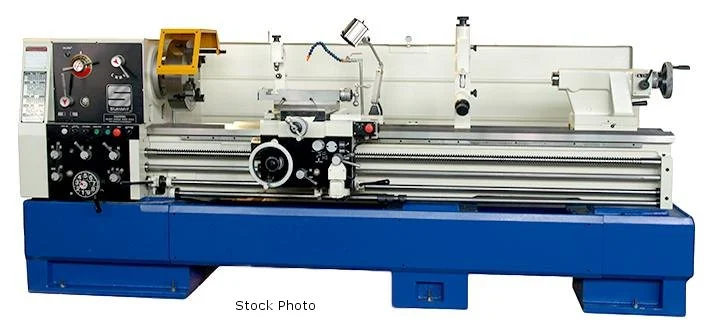

SUMMIT (NEW) MODEL 22-4-80 ENGINE LATHE
CAPACITY
- 22" SWING OVER BED
- 12-1/2" SWING OVER CROSS SLIDE
- 32" SWING OVER GAP
- 16" GAP
- 8" GAP IN FRONT OF JAW CHUCK
WORKPIECE WEIGHTS
- 550 LBS AT THE HEADSTOCK
- 1,320 LBS BETWEEN CENTERS
- 4,400 LBS BETWEEN CENTERS WITH STEADY REST

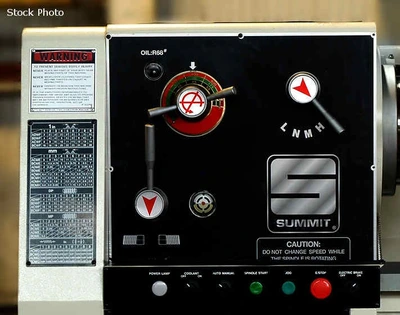

HEADSTOCK
- 12 SPINDLE SPEEDS 35-1250 RPM
- 4 1/8" HOLE THROUGH SPINDLE
- D1-8 CAMLOCK SPINDLE NOSE
- MT #5 HEADSTOCK CENTER
QUICK CHANGE GEARBOX
- 36 THREADS PER INCH 2 - 28 TPI
- 65 METRIC THREADS 0.8 - 14
- 22 MODULE THREADS 0.5 - 7
- 36 DIAMETRAL PITCH 4 - 56
- 23 LONGITUDINAL FEEDS 0.001" - 0.027" IPR
- 23 CROSS FEEDS 0.0005" - 0.0135" IPR
- 1-3/4" LEADSCREW DIAMETER 2 TPI
- 1-1/4" FEED ROD DIAMETER
CARRIAGE AND APRON
- 14-3/4" CROSS SLIDE TRAVEL
- 10" COMPOUND REST TRAVEL
- 0.010 APRON HANDWHEEL GRADUATION
- 0.001 CROSS SLIDE HANDWHEEL GRADUATION
TAILSTOCK
- 6-1/2" SPINDLE BARREL TRAVEL
- 3" SPINDLE BARREL DIAMETER
- MT #5 CENTER TAPER
BED
- 16" X 16-1-4"
- 44 - 50 BED HARDNESS (ROCKWELL C)
TAPER ATTACHMENT
- +/- 10 DEGREES OF TAPER
- 16" TURNING LENGTH PER SETTING
15 HP MAIN MOTOR
1/4 HP COOLANT PUMP
1/2" - 8-1/4" STEADY REST
3/8" - 3" FOLLOW REST
STANDARD FEATURES
- BID 4-1/8" THRU HOLE
- INCH-METRIC THREADS WITH SINGLE SWITCH LEVER
- CUTS MOST INCH/METRIC THREADS WITH CHANGE GEARS
- HARDENED AND PRECISION GROUND BEDWAYS
- FORCED LUBE TO HEADSTOCK, CARRIAGE BEDWAYS
- MECHANICAL DISC CLUTCH
- REMOVABLE GAP
- PRECISION 3-BEARING SPINDLE
- FEED REVERSING AT THE APRON
- 4-WAY RAPID TRAVERSE
- SINGLE LEVER CONTROL FOR FEEDS AND RAPIDS
- 2-SPEED TAILSTOCK
- T-SLOTTED COMPOUND
- ALL CAST IRON CONSTRUCTION
- CLUTCHED HEADSTOCK
ACCESSORIES INCLUDED

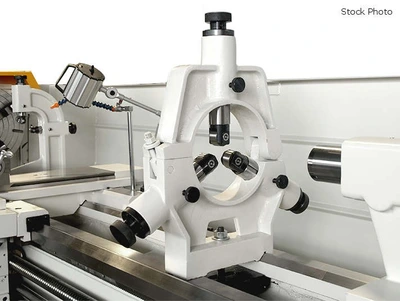

- STANDARD STEADY REST
- FOLLOW REST
- THREAD DIAL
- COOLANT SYSTEM
- TAPER ATTACHMENT
- 12" 3-JAW CHUCK WITH 2-PIECE JAWS

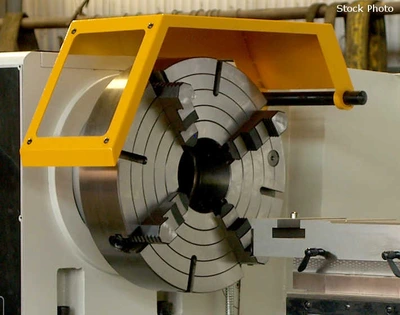

- 15-3/4" 4-JAW CHUCK
- MICROMETER CARRIAGE STOP
- HALOGEN WORK LIGHT
- FULL-LENGTH SPLASH GUARD
OPTIONS AVAILABLE - PRICE ON REQUEST
- 12" STEEL BODY PRECISION CHUCK W/2-PIECE JAWS
- 20" SEMI-STEEL 4-JAW CHUCK
- 20" STEEL 4-JAW CHUCK W/2-PIECE REVERSIBLE JAWS
- ALORIS QUICK-CHANGE TOOL POST WITH HOLDERS
- NEWALL 2-AXIS DIGITAL READOUT - INSTALLED
Power: 220/440 (3-Phase)
