ANVER (NEW) 8-PAD VACUUM SHEET LIFTER AND STAND

ANVER (NEW) 8-PAD VACUUM SHEET LIFTER AND STAND

CAPACITY - STAINLESS STEEL
- 10' LENGTH
- 5' WIDTH
- 20 GAUGE TO 1" THICKNESS

COMPONENTS
- L400M8-110-4/44 LIFTING FRAME

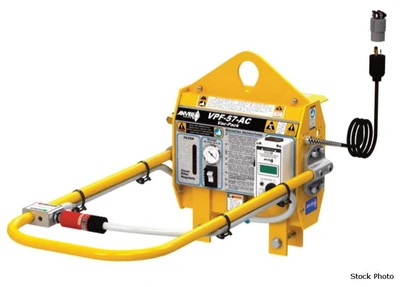

- VPF-57HD-AC-L ELECTRIC VACUUM GENERATOR
- PS-150-3X6 PARKING STAND

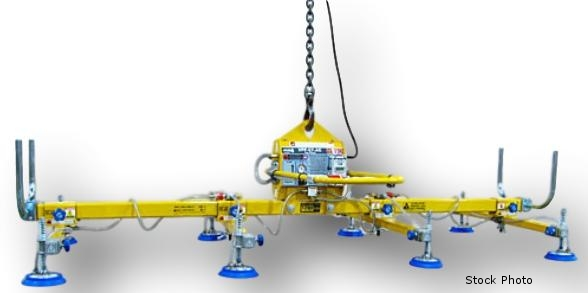

LIFTING FRAME
- 4,000 LB CAPACITY
- 12' X 6' SHEET SIZE

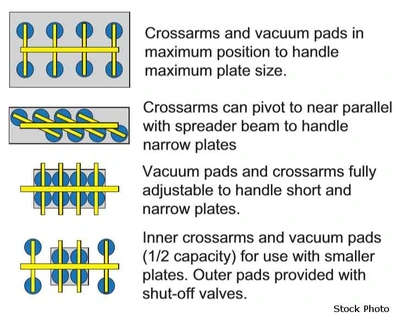

- 8 ADJUSTABLE PADS ON CROSSARMS
- 13" HEADROOM
- 110" SPREADER BEAM
- 44" CROSSARM
- 12.6" PAD DIAMETER
- 72" TO 120" OUTER PAD DISTANCE (LENGTH)
- 29" TO 53" OUTER PAD DISTANCE (WIDTH)
- SSR-126 SEAL
- VACUUM LEAKAGE SENSOR AND WARNING SYSTEM
- ATTACH / RELEASE SLIDE VALVE WITH SAFETY LOCK
- LOCKING HAND KNOBS ON THE ADJUSTABLE VACUUM PAD
SLIDE ASSEMBLIES
- HANDLES CARBON AND STAINLESS STEEL SHEETS AND
PLATES
- MEETS US ANSI ASME STANDARD B30.20
- MEETS OSHA REQUIREMENTS

PARKING STAND ASSEMBLY
- 3,000 LB CAPACITY
- FOR 3" X 6" BEAMS (PAIR) UP TO 190" LONG
- BOLT-ON MOUNTING
- DOWN (PARKED) POSITION KEEPS SEALS OFF GROUND
- OUT, UP AND FOLDED-IN POSITIONS
(WHEN OVER LOAD)
- ISO 9001 CERTIFIED

WEIGHTS
- 380 LB FRAME
- 66 LB VACUUM GENERATOR
- 15 LB PARKING STAND ASSEMBLY

**OPTIONS - PRICING ON REQUEST**
MECHANICAL VACUUM GENERATOR ASSEMBLY
- 4,400 LB CAPACITY
- 1/2 HP VACUUM PUMP
- REQUIRES 115 VOLT, 1 PHASE INCOMING POWER
- 3" X 6" TUBE
- FRONT-MOUNTED CONTROLS AND GAUGES
- ERGONOMIC ADJUSTABLE FRONT HANDLBAR
- SLIDE CONTROL VALVE W/PUSH-BUTTON SAFETY LOCK
- VACUUM CHECK VALVE AND RESERVOIR
- TWISTLOCK POWER CORD PLUG AND RECEPTICAL
- VACUUM LEAKAGE SENSING SYSTEM
