| Dimensions | 70 X 75 X 92 | 70 X 75 X 92 |
| Weight | 3,300 | 3,300 |

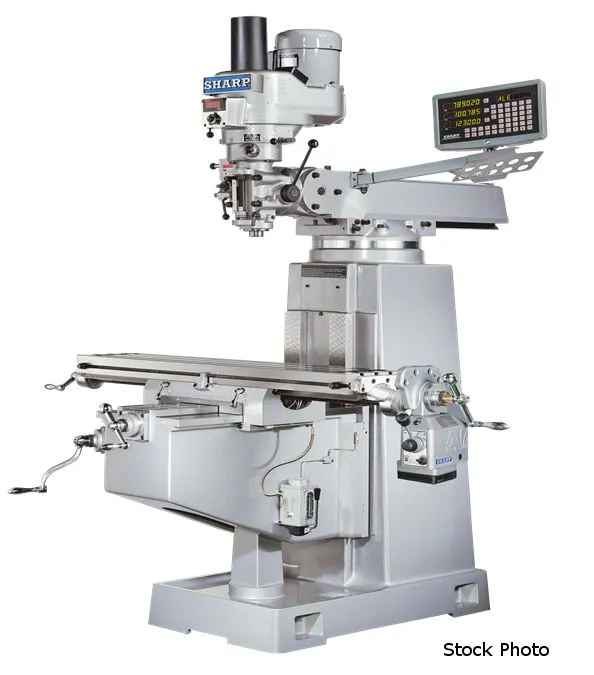

SHARP (NEW) MODEL TMV-KN VERTICAL KNEE MILL
TABLE
- 10" X 54" WORKING SURFACE
- (3) 5/8" T-SLOTS
- 26" SADDLE
CAPACITY
- 37" X 16.3" TRAVELS (X Y)
- 5" QUILL TRAVEL
- 18.5" RAM TRAVEL
- 15.3" KNEE TRAVEL
- 9.8" TO 28.3" THROAT
- 5.375" - 16.9" SPINDLE GAGELINE TO TABLE TOP
SPINDLE
- R-8 NOSE TAPER
- 60 - 4,500 RPM VARIABLE SPEED DRIVE
- 0.0015, 0.003 AND 0.005 IPR QUILL FEED SPEEDS
- 0.0002" TIR ACCURACY
- 90 DEGREE HEAD TILT (RIGHT TO LEFT)
- 45 DEGREE HEAD TILT (UP AND DOWN)
- 3 HP, 220 OR 440 VOLTS, 3 PHASE
STANDARD EQUIPMENT
- POWER DRAWBAR
- NEWALL NMS-300 DRO (QUILL, SADDLE, TABLE)
- X-AXIS POWERFEED
- FRONT REAR RUBBER WAY COVERS
- ONE SHOT LUBRICATION SYSTEM
- DIGITAL VARIABLE SPEED DRIVE
- TOOL KIT
FEATURES
- HARDENED, GROUND, CHROMED BOXWAYS ON
COLUMN AND KNEE FOR MAXIMUM RIGIDITY
- DOUBLE-NUT BACKLASH ELIMINATOR
- INTERNAL LUBRICATED VARI-DISC DESIGN
- MOTOR SHAFT END SUPPORTED BY BEARING CAP
- KNUCKLE JOINT, USING BOLTS CIRCULAR T-SLOT
DESIGN, ALLOWS HEAD TO SWIVEL LEFT AND RIGHT,
UP AND DOWN
OPTIONS AVAILABLE - PRICE ON REQUEST
- AUTO-LUBE PUMP WITH 2 ADJUSTMENTS (INSTALLED)
- POWER CROSS FEED W/SAFETY HANDLE (INSTALLED)
- POWER KNEE FEED W/SAFETY HANDLE (INSTALLED)
- 6" KURT VISE WITH SWIVEL BASE D688
- RIGHT ANGLE MILLING ATTACHMENT WITH ARBOR
- DRILL CHUCK AND ARBOR
- 6" RISER BLOCKS (INSTALLED)
- COOLANT SYSTEM WITH CHIP PAN AT BASE
(PUMP INCLUDED)
- R-8 COLLET SET OF 11 (1/8" -3/4" BY 1/16")
- CLAMPING KIT (52 PIECES/STEEL RACK)
- HALOGEN WORK LIGHT
- NT-30 SPINDLE IN LIEU OF R-8
- TRANSFORMER FOR 380, 440 OR 575 VOLTS
Power: 220/440 (3-Phase)
