| Dimensions | 70 X 75 X 92 | 70 X 75 X 92 |
| Weight | 3,000 | 3,000 |

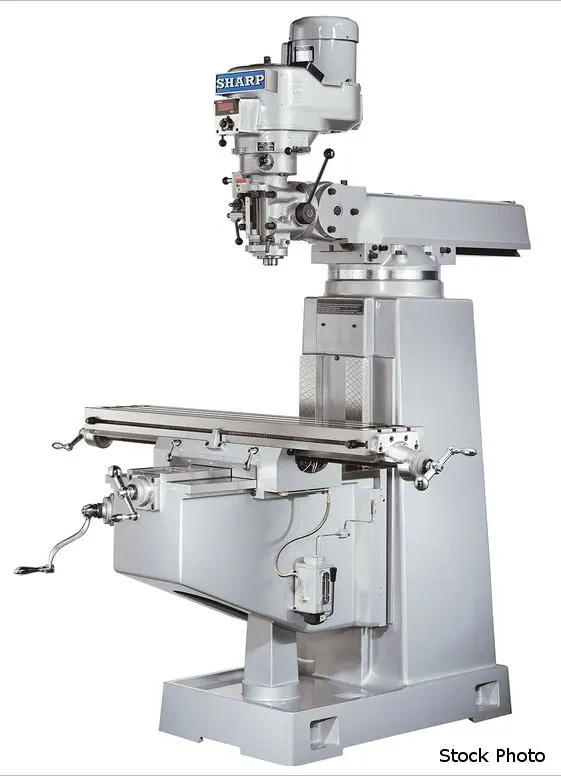

SHARP (NEW) MODEL TMV-DVS VERTICAL KNEE MILL
TABLE
- 10" X 54" WORKING SURFACE
- (3) T-SLOTS - 5/8"
- 26" SADDLE
- 39" X 16.3" TRAVELS (X Y)
- 5" QUILL TRAVEL
- 3-3/8" QUILL DIAMETER
- 18.5" RAM TRAVEL
- 15.3" KNEE TRAVEL
- 9.8" TO 28.3" THROAT
- 5.375" - 16.9" SPINDLE GAGELINE TO TABLE TOP
SPINDLE
- R-8 NOSE TAPER
- 60 - 4,500 RPM VARIABLE SPEED DRIVE
- 0.0015, 0.003 AND 0.005 IPR QUILL FEED SPEEDS
- 0.0002" TIR ACCURACY
- 90 DEGREE HEAD TILT (RIGHT TO LEFT)
- 45 DEGREE HEAD TILT (UP AND DOWN)
- 3 HP, 220 OR 440 VOLTS, 3 PHASE
STANDARD EQUIPMENT
- MANUAL DRAWBAR
- HARDENED AND GROUND WAYS
- FRONT AND REAR RUBBER WAY COVERS
- ONE-SHOT LUBRICATION SYSTEM

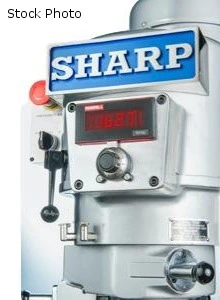

- DIGITAL VARIABLE SPEED
- TOOL KIT
FEATURES
- HARDENED GROUND BOXWAYS ON SADDLE/COLUMN FOR MAXIMUM RIGIDITY
- 3HP MOTOR, DVS DIGITAL VARIABLE SPEED HEAD
- R-8 SPINDLE
- DOUBLE-NUT BACKLASH ELIMINATOR
- INTERNAL LUBRICATED VARI-DISC DESIGN
- MOTOR SHAFT END SUPPORTED BY BEARING
- KNUCKLE JOINT, USING BOLTS CIRCULAR T-SLOT
DESIGN, ALLOWS HEAD TO SWIVEL LEFT AND RIGHT,
UP AND DOWN
OPTIONS AVAILABLE - PRICE ON REQUEST
- 6" "KURT" VISE WITH SWIVEL BASE
- AUTO-LUBE PUMP (INSTALLED)
- RIGHT ANGLE MILLING ATTACHMENT WITH ARBOR
- POWER TABLE FEED W/SAFETY HANDLE (INSTALLED)
X-AXIS
Y-AXIS
Z-AXIS
- DRILL CHUCK AND ARBOR
- 6" RISER BLOCKS (INSTALLED)
- MAXI TORQUE RITE POWER DRAW BAR (INSTALLED)
- COOLANT SYSTEM WITH CHIP PAN AT BASE
(PUMP INCLUDED)
- R-8 COLLET SET OF 11 (1/8" -3/4" BY 1/16")
- CLAMPING KIT (52 PIECES/STEEL RACK)
- HALOGEN WORK LIGHT
- CE MARK
- FAGOR, ACU-RITE, AND NEWALL DRO SYSTEMS
- SINGLE PHASE
- TRANSFORMER FOR 440/380/575 VOLTS
Power: 220/440 (3-Phase)
