NEW DURMA PBF 30200

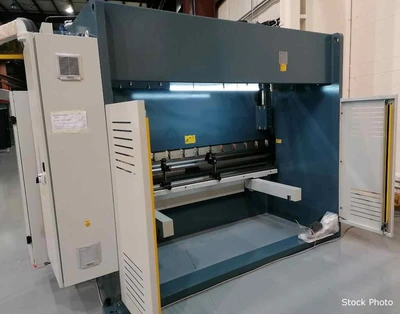

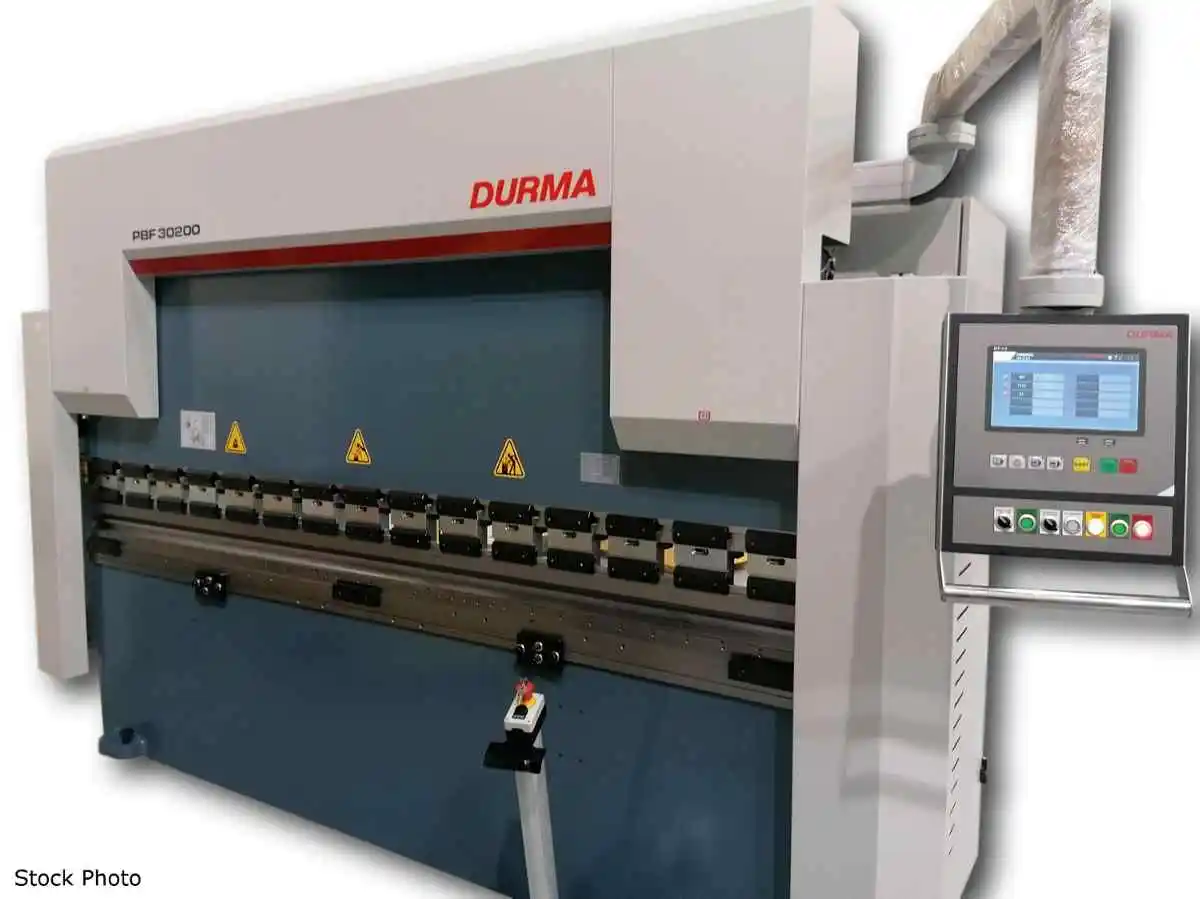

DURMA (NEW) MODEL PBF 30200 CNC PRESS BRAKE

220 US TONS BENDING FORCE
10' BENDING LENGTH
8' 4" BETWEEN HOUSINGS
33.8" TABLE HEIGHT
4.1" TABLE WIDTH
8.25" STROKE
17.52" DAYLIGHT
9.84" THROAT DEPTH
236"/MINUTE Y-AXIS RAPID SPEED
16.5"/MINUTE Y-AXIS WORKING SPEED
172"/MINUTE Y-AXIS RETURN SPEED
.0004" Y-AXIS PRECISION
600"/MINUTE BACKGAUGE (X-AXIS) WORKING SPEED
24.4" BACKGAUGE (X-AXIS) WORKING DISTANCE
20 HP MOTOR

DT-15 CONTROL
- 2D GRAPHICAL TOUCH SCREEN PROGRAMMING MODE
- USB PERIPHERAL INTERFACING
- SENSOR BENDING AND CORRECTION INTERFACE

STANDARD FEATURES
- Y1, Y2 X-AXIS (MANUAL R-AXIS)
- FIESSLER LASER FINGER SAFETY - MANUAL HT ADJUST
- MOTORIZED BALLSCREW BACKGAUGE SYSTEM SUPPORTED
WITH LINEAR GUIDES (POWERED X-AXIS)

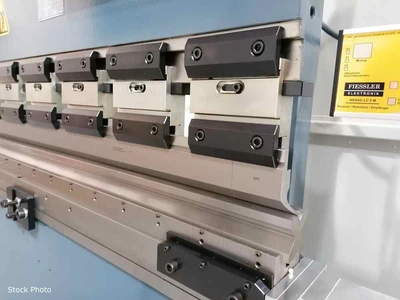

- UNIVERSAL WEDGE-STYLE PUNCH CLAMP
(ACCEPTS AMERICAN EUROPEAN STYLE PUNCHES)
- PRECISION GROUND PUNCH/4-WAY DIE (EURO)
TOP TOOL - ROLLERI P97.75.R08
BOTTOM TOOL - ROLLERI M.460R.85
- BACKGAUGE FINGER BLOCKS - QTY 2
- SUPPORT ARMS WITH T-SLOT - QTY 2
- MANUAL WEDGE-TYPE CROWNING

OPTIONS AVAILABLE - PRICE ON REQUEST
- 2-AXIS BACKGAUGE UPGRADE- X;R - X=25.59" R=9.84"
- CNC CONTROLLED MOTORIZED CROWNING
- TOP TOOL - ROLLERI P135.75.R08 (EURO)
- BOTTOM TOOL - SINGLE V= 3.93" (EURO/DURMA BRAND)
- BOTTOM TOOL - MULTI V DIE (EURO/DURMA BRAND)
- QUICK-RELEASE UPPER TOOL CLAMPING
- ADDITIONAL BACKGAUGE FINGER BLOCKS
- ADDITIONAL SUPPORT ARMS WITH T-SLOT
- OIL COOLANT SYSTEM

HYDRAULIC OIL REQUIRED
Power: 208/220/440 (3-Phase)
