| Dimensions | 136X 48 X 62 | 136X 48 X 62 |
| Weight | 7,600 | 7,600 |

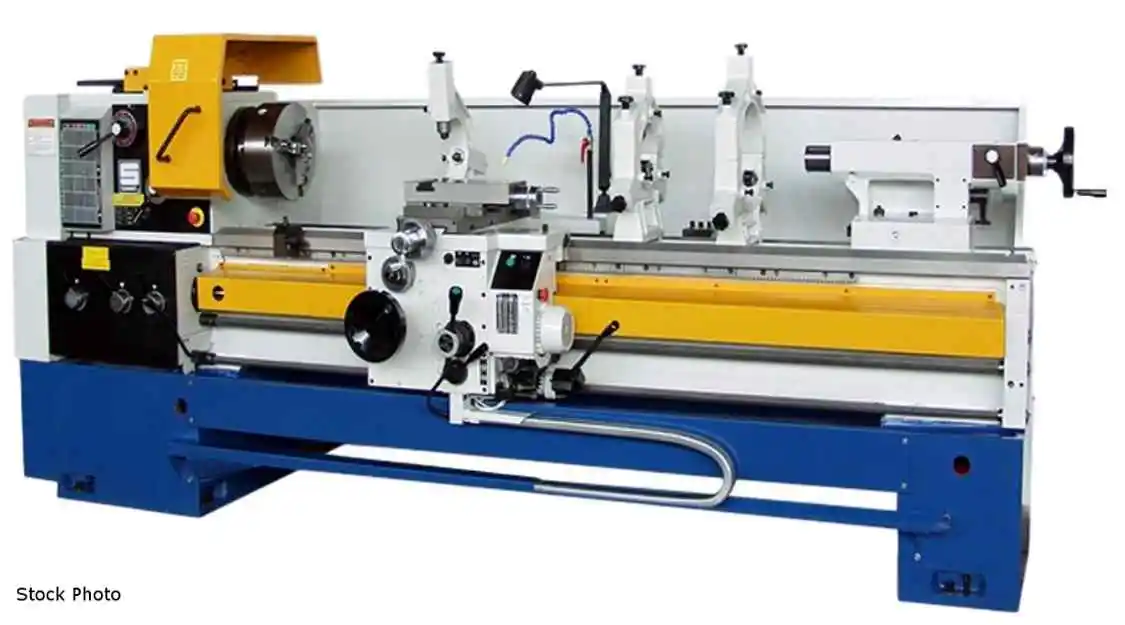

SUMMIT (NEW) MODEL 24-4-60 ENGINE LATHE
CAPACITY
- 25" SWING OVER BED
- 17" SWING OVER CROSS SLIDE
- 33" SWING OVER GAP
- 15" GAP
- 8-3/8" GAP IN FRONT OF FACE PLATE

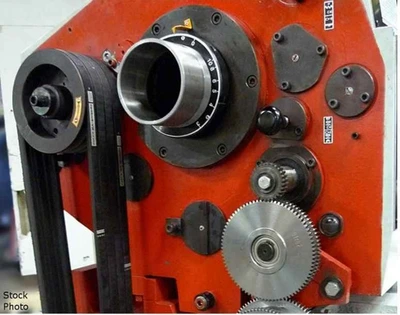

HEADSTOCK
- 21 SPINDLE SPEEDS 20-1250 RPM
- 4-1/8" HOLE THROUGH SPINDLE

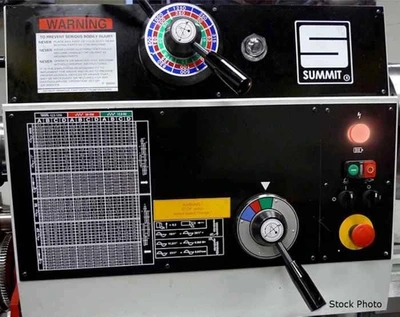

QUICK CHANGE GEARBOX
- 64 THREADS PER INCH .25 - 60 TPI
- 64 METRIC THREADS .50 - 120 IRP
- 124 LONGITUDINAL FEEDS .00145 -.44474
- 124 CROSS FEEDS .0007 -.22237
15 HP MAIN MOTOR
1/4 HP COOLANT PUMP
STANDARD EQUIPMENT
- HEAVY RIBBED CAST BED AND BASE
- HARDENED PRECISION GROUND EXTRA WIDE BEDWAYS
- FORCED LUBRICATION TO THE HEADSTOCK, CARRIAGE
AND BEDWAYS
- D1-8 CAMLOCK SPINDLE NOSE
- PULLOUT-TYPE CHIP PAN
- CROSSFEED AND THREADING SAFETY INTERLOCK
- DIAMETRAL AND MODULE THREAD CAPABILTIY
- INCH-METRIC THREADING
- REMOVABLE GAP

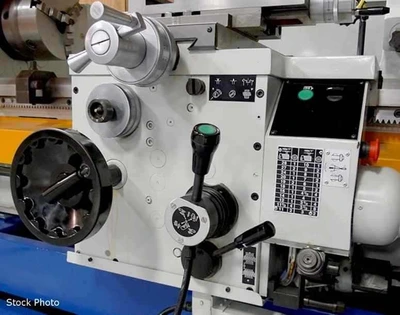

- FEED REVERSING AT THE APRON
- SINGLE LEVER "JOYSTICK" CONTROL FOR FEEDS AND
4-WAY RAPID TRAVERSE
- DUAL HEADSTOCK AND APRON SPINDLE CONTROL LEVERS
- FULL-LENGTH SPLASH GUARD
- TWO-SPEED TAILSTOCK
ACCESSORIES INCLUDED
- THREAD DIAL
- STANDARD STEADY REST WITH ROLLERS
- EXTRA CAPACITY REST WITH ROLLERS
- FOLLOW REST
- COOLANT SYSTEM
- CARRIAGE STOP
- TAPER ATTACHMENT
- RAPID TRAVERSE ON CARRIAGE (4-WAY JOYSTICK)
- HALOGEN WORK LIGHT
- 12" 3-JAW CHUCK WITH 2 PIECE JAWS
- WRENCHES AND SPANNERS
- REDUCING SLEEVE AND DEAD CENTERS
OPTIONS AVAILABLE - PRICE ON REQUEST
- 12" STEEL BODY
- 3-JAW CHUCK WITH TOP 2 PIECE REVERSIBLE JAWS
- QUICK-CHANGE TOOL POST WITH HOLDERS
- DIGITAL READOUT
Power: 220/440 (3-Phase)
