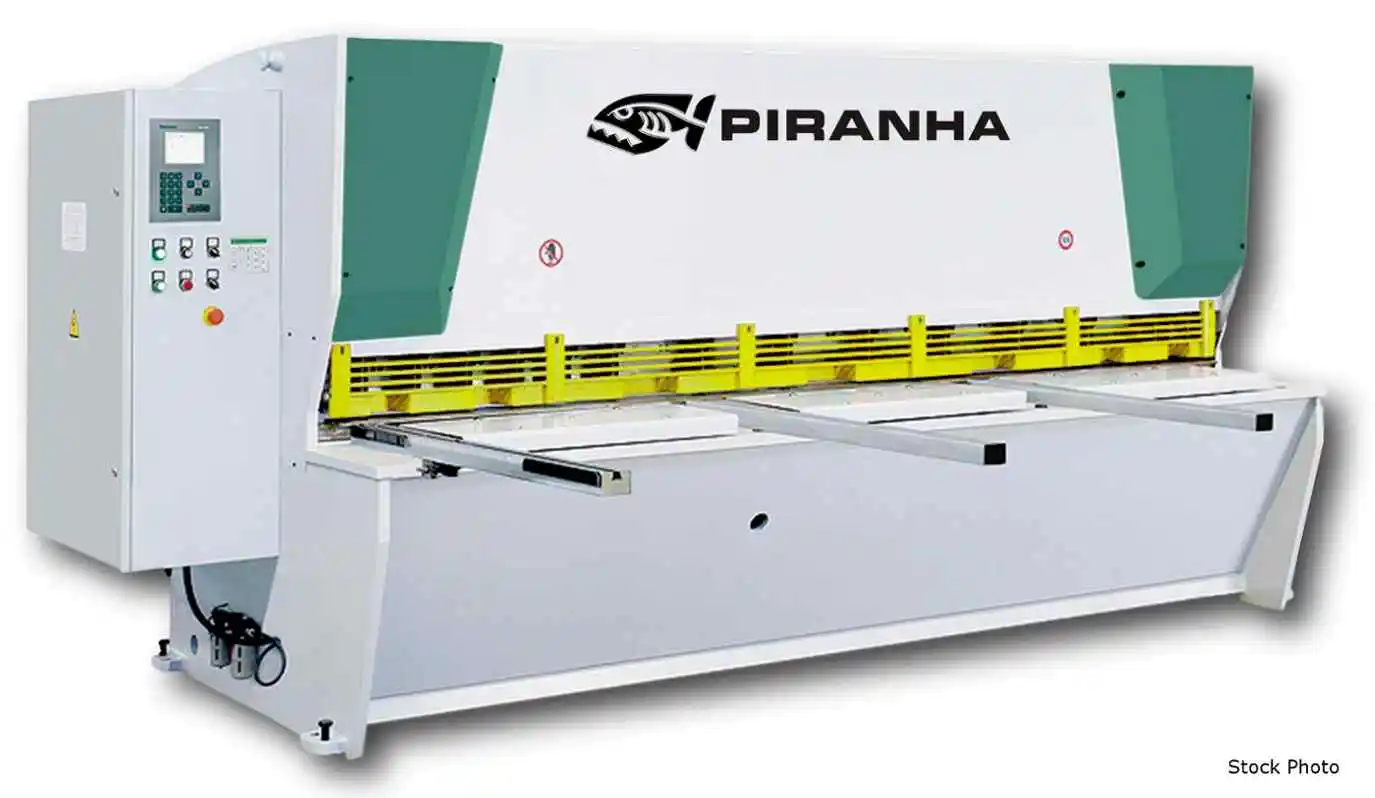

NEW PIRANHA 3/8 X 10

PIRANHA (NEW) MODEL 3/8" X 10' GUILLOTINE
HYDRAULIC STEEL

3/8" CAPACITY - MILD STEEL
3/16" CAPACITY - STAINLESS STEEL
10' CUTTING LENGTH
0.5-2 DEGREE RAKE ANGLE
8 STROKES PER MINUTE - NO LOAD
39" BACKGAUGE
15 HOLD-DOWN CYLINDERS
20 HP
97 GALLON OIL TANK

FEATURES
- EUROPEAN DESIGN
- GUILLOTINE STYLE
- STRESS RELIEVED
- MACHINED IN ONE SET UP TO ASSURE PARALLELISM
AND VERTICALITY OF ALL MOUNTING SURFACES
- 3 FRONT SHEET SUPPORTS
- RAM HAS 3-POINT ROLLER GUIDE SYSTEM
- BOSCH/REXROTH HYDRAULIC SYSTEM
OVERLOAD PROTECTION
SIGHT GLASS ON TANK FOR EASY OIL LEVEL CHECKS
- BACK GAUGE SYSTEM
AC DRIVE WITH BALL SCREW LINEAR ROD GUIDES
- ELECTRICAL SYSTEM
COMMON, RELIABLE, OFF-THE-SHELF COMPONENTS
STANDARD FOOT PEDESTAL
- DELEM DAC 360 CONTROLLER
- CNC BLADE GAP ADJUSTMENT
- CNC RAKE ANGLE ADJUSTMENT
- LEUZE LIGHT CURTAIN / PHOTOCELL SWITCH

OPTIONS AVAILABLE - PRICE ON REQUEST
- PNEUMATIC REAR SHEET SUPPORTS FOR 5/16" PLATE
- 48" BACKGAUGE TRAVEL
- 10' SQUARING ARM
- 6.5' SQUARING ARM
