NEW ERIEZ RPL-15

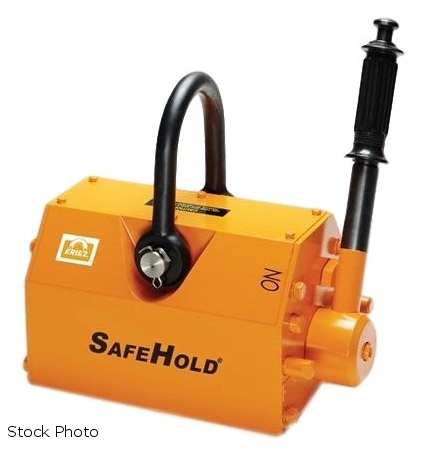

ERIEZ (NEW) MODEL RPL-15 LIFT MAGNET

1,500 LB MAXIMUM CAPACITY - FLAT
- 1-3/4" MINIMUM THICKNESS FOR MAXIMUM CAPACITY
750 LB MAXIMUM CAPACITY - ROUND
6-1/2" MINIMUM OUTSIDE DIAMETER FOR MAX CAPACITY

MATERIAL THICKNESS CAPACITY
100 LBS AT 11 GAUGE
260 LBS AT 1/4"
670 LBS AT 3/8"
1,050 LBS AT 1/2"
1,350 LBS AT 3/4"
1,430 LBS AT 1"
1,460 LBS AT 1-1/4"
1,460 LBS AT 1-1/2"
1,500 LBS AT 1-3/4"
1,500 LBS AT 2"

NOTE: LIFTING CAPACITY RATINGS ARE BASED ON FLAT,
CLEAN, POLISHED STEEL PLATE MAGNET FACE IN FULL
CONTACT WITH LOAD
CAPACITY IS LOWER ON THINNER MATERIAL

FEATURES
- LIFT FLAT AND ROUND MATERIAL
- MANUAL ON AND OFF
- DOES NOT REQUIRE POWER SUPPLY
- POWERFUL RARE EARTH MAGNETS
- LOCKING MECHANISM BUILT INTO HANDLE FOR
ONE-HAND OPERATION
