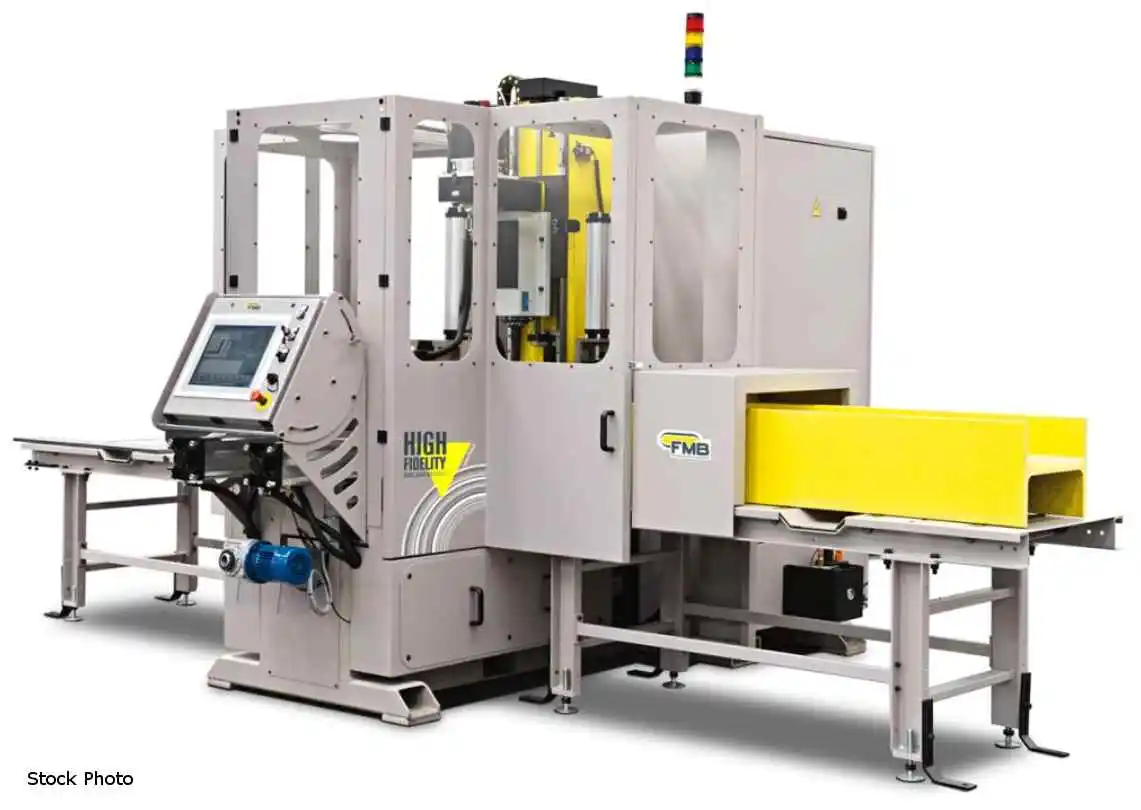

NEW PAT MOONEY EXPLORER 1

PAT MOONEY (NEW) MODEL FMB EXPLORER 1 3-AXIS CNC
VERTICAL DRILLING CENTER

98' INCOMING PART LENGTH (X-AXIS)
16-1/2" Y-AXIS TRAVEL
25-1/2" Z-AXIS TRAVEL
1-1/2" TO 17-3/4" PART WIDTH
3/8" TO 11-7/8" PART HEIGHT
1/5" TO 1-1/4" DRILLING DIAMETER
30 FPM X-AXIS POSITIONING SPEED
30 FPM Y-AXIS POSITIONING SPEED
18 FPM X-AXIS MATERIAL INDEXING SPEED
3,000 RPM SPINDLE SPEED
8.25 HP SPINDLE
ISO 40 TOOL HOLDER

STANDARD FEATURES AND EQUIPMENT

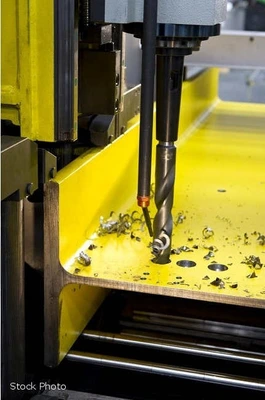

- CAPABLE OF DRILLING, SLOTTING, MILLING, TAPPING
- Y-AXIS AND Z-AXIS POSITIONING
SERVO CONTROLLED WITH A BALL SCREW
- X-AXIS POSITIONING
SERVO CONTROLLED W/ROTARY AUTO MATERIAL INDEX SYS
98' PIECES INDEXED IN A SINGLE MOVEMENT
WORK 98' PIECES FROM END TO END

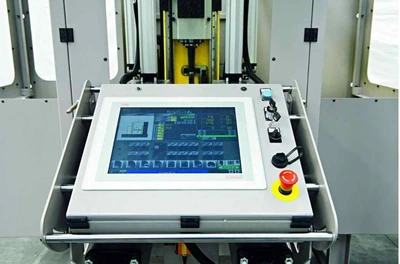

- 15" COLOR TOUCHSCREEN CONTROL
- MATERIAL TABLE
EASY SELECTION OF PART DIMENSIONS
- TOOL TABLE
CREATE AND SAVE TOOLS
- PART MEASUREMENT SYSTEM
LASER FINDS INCOMING EDGE OF PART
INCOMING PART IS MEASURED SIZE IS CONFIRMED
- MIST LUBRICATION SYSTEM W/THROUGH TOOL COOLANT

OPTIONS AVAILABLE - PRICE ON REQUEST
- REMOTE/OFFLINE PROGRAMMING
