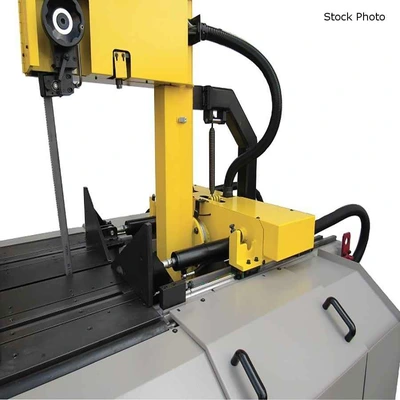

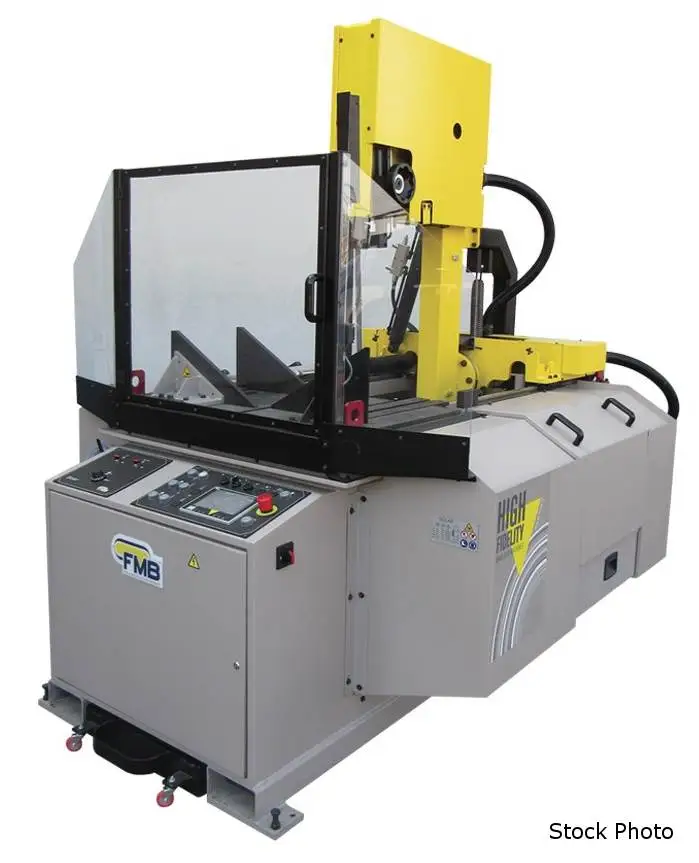

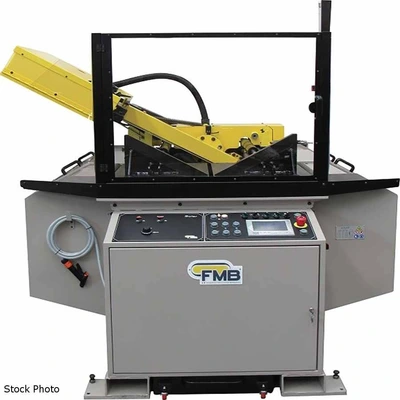

NEW PAT MOONEY FMB SOLAR

PAT MOONEY (NEW) MODEL FMB SOLAR SEMI-AUTOMATIC
VERTICAL TILT-FRAME BANDSAW

16' 3" X 1-1/4" X 0.042" BLADE
52-394 FPM VARIABLE BLADE SPEED
42" WORKING HEIGHT
5.5 HP, 220 OR 440 VOLT, 3 PHASE SAW MOTOR

CAPACITY AT 0 DEGREES
- 18" ROUND
- 18" X 18" SQUARE
- 18" X 22" RECTANGLE

CAPACITY AT 45 DEGREES RIGHT
- 14" ROUND
- 14" X 14" SQUARE
- 18" X 14" RECTANGLE

CAPACITY AT 60 DEGREES RIGHT
- 8-2/3" ROUND
- 8-2/3" X 8-2/3 SQUARE
- 18" X 8-2/3" RECTANGLE

CAPACITY AT 45 DEGREES LEFT
- 15" ROUND
- 15" X 15" SQUARE
- 18" X 15" RECTANGLE

CAPACITY AT 60 DEGREES LEFT
- 10" ROUND
- 10" X 10" SQUARE
- 18" X 10" RECTANGLE

STANDARD FEATURES AND EQUIPMENT
- HYDRAULIC SAW HEAD AND CLAMPING
- 4.5 DEGREE CANT SAW HEAD
- SAW HEAD ROTATION DRIVEN W/HYDRAULIC CYLINDER

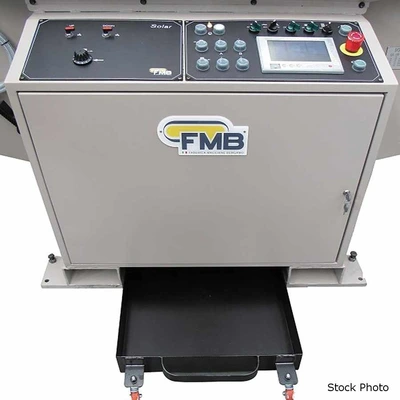

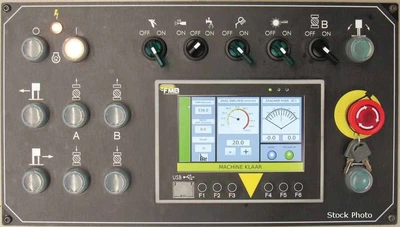

- TOUCHSCREEN CONTROL WITH DISPLAY OF
CUTTING ANGLE
FEED RATE
- INVERTER CONTROLLED INFINITELY VARIABLE SPEED
- LASER LIGHT FOR CUT LINE
- LEFT AND RIGHT HAND HYDRAUIC VISE CLAMPS
- HEAVY-DUTY WELDED-STEEL BASE

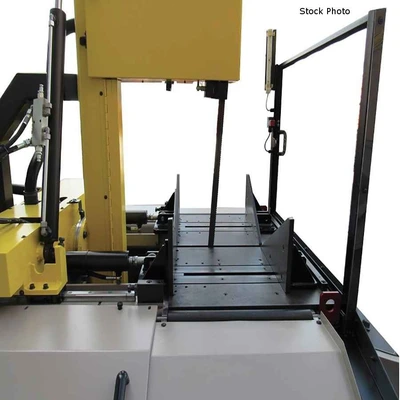

- LARGE STEEL TABLE WITH CLAMPING SYSTEM
- CLAMPING VISES ARE CONTROLLED HYDRAULICALLY
- HIGH-EFFICIENCY PLANETARY REDUCTION GEAR BOX
- VERTICAL SAW HEAD WITH LASER LIGHT FOR CUT LINE
- PRECISION CARBIDE BLADE GUIDES W/ROLLER GUIDES
- BLADE LUBRICATION SYSTEM

OPTIONS AVAILABLE - PRICE ON REQUEST
- VISE PRESSURE REGULATION (ADJUSTABLE CLAMPING)
- SPRAY MIST SAW BLADE LUBRICATION
- HYDRAULIC SAW BLADE TENSIONING
- BUNDLE CUTTING JAWS (ONLY CUT AT 0 DEGREES)
- CONVEYORS AND LENGTH STOPS
Power: 220/440 (3-Phase)
