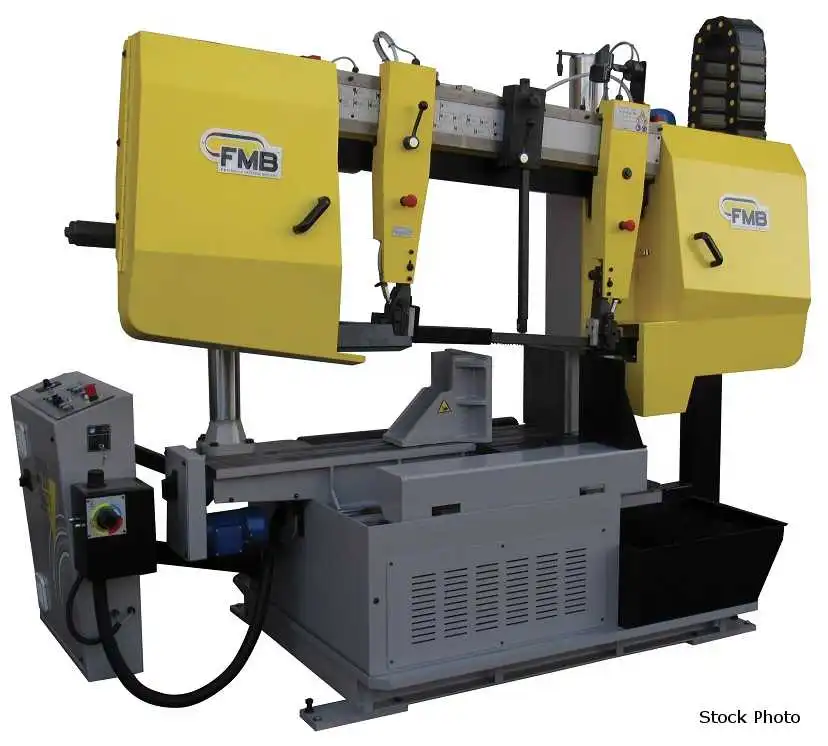

NEW PAT MOONEY FMB OLIMPUS 1

PAT MOONEY (NEW) FMB OLIMPUS 1 LARGE CAPACITY
SEMI-AUTOMATIC BANDSAW

LARGE CAPACITY
- SAW HEAD TRAVELS ON 2 LARGE COLUMNS
- SAW BLADE TRAVELS AT A 10 DEGREE CANT
- CAN BE COMBINED WITH MATERIAL HANDLING EQUIP.

CUTTING CAPACITY AT 0 DEGREES
- 20" ROUND
- 17-3/4" X 29-1/2" RECTANGLE
- 18" X 18" SQUARE

BUNDLE CAPACITY
- 17" X 26-1/2" RECTANGLE

17' 11" X 1-1/2" X 0.050" BLADE
52-394 FPM VARIABLE BLADE SPEED
5.5 HP, 220 OR 440 VOLT, 3 PHASE MOTOR

STANDARD FEATURES EQUIPMENT
- STRAIGHT CUTS ONLY
- HYDRAULIC SAW HEAD AND CLAMPING
- INVERTER CONTROLLED INFINITELY VARIABLE SPEED
- SAW HEAD SUPPORTED BY 2 ROUND COLUMNS
6" MAIN COLUMN
4" SUPPORT COLUMN
COLUMNS ARE CHROME PLATED AND LUBRICATED
- HEAVY DUTY MACHINE BASE
- MECHANICAL BLADE TENSION WITH INDICATOR

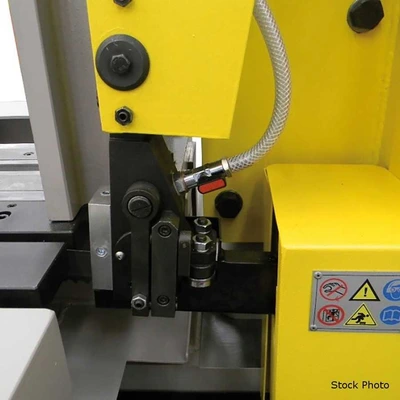

- PRECISION CARBIDE BLADE GUIDES W/ROLLER GUIDES
- HYDRAULIC SYSTEM DOWNFEED CONTROL OF BLADE
- FAST APPROACH OF BOW TO MATERIAL
- BLADE VIBRATION DAMPER
- AUTO RETURN WITH HEIGHT ADJUSTMENT OF SAW HEAD

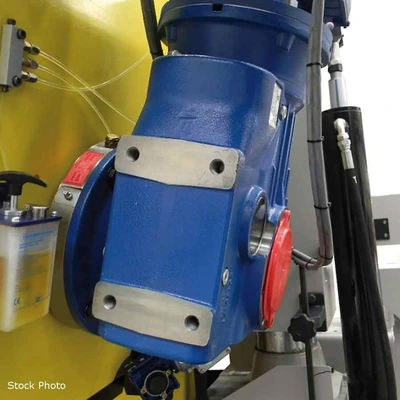

- SAW DRIVE VIA GEAR REDUCTOR
- CASE HARDENED AND GROUND HELICAL GEARS
- ILLUMINATION OF THE CUTTING LINE
- INDUCTION HARDENED AND REPLACEABLE VISE PLATES

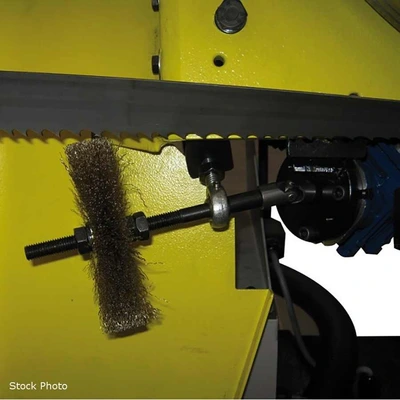

- ELECTRICALLY DRIVEN CHIP BRUSH
- RECIRCULATING FLOOD COOLANT SYSTEM
- 24 VOLT CONTROL VOLTAGE
- SAW BLADE
- OPERATING MANUAL

OPTIONS AVAILABLE - PRICE ON REQUEST
- LASER LIGHT FOR THE CUT LINE
- SPRAY MIST SAW BLADE LUBRICATION
- HYDRAULIC SAW BLADE TENSIONING
- TOP HYDRAULIC CLAMP FOR BUNDLE CUTTING
- LIFTING ROLLER TO ASSIST MATERIAL TO CUT LINE
- SAME AS RTR WITH A REDUCTION GEAR BOX
- STRESS DETECTOR
- DIGITAL DISPLAY OF THE FEED RATE
- MECHANICAL FAST APPROACH
- CONVEYORS
Power: 220/440 (3-Phase)
