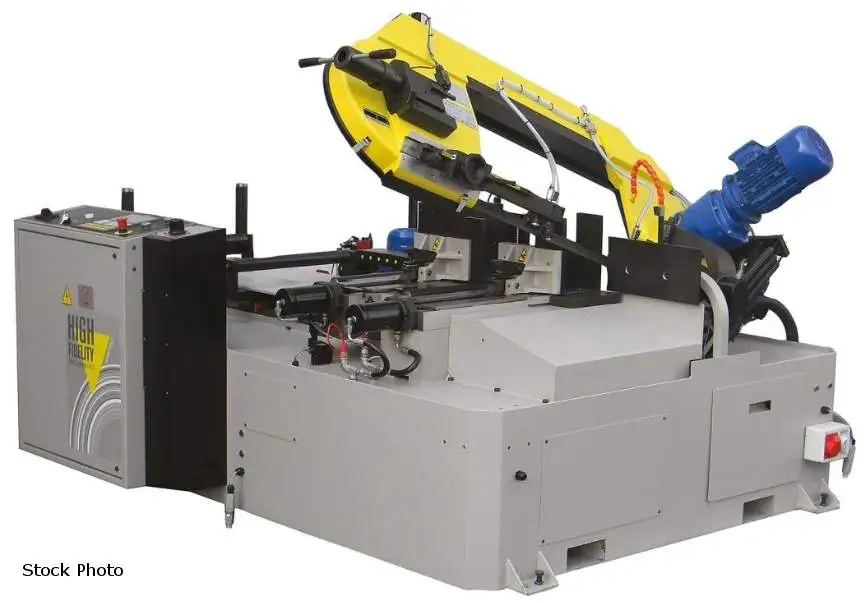

NEW PAT MOONEY FMB PEGASUS CNC

PAT MOONEY (NEW) MODEL FMB PEGASUS CNC FULLY
AUTOMATIC BANDSAW

CNC CUTTING CONTROL PANEL
- ENTER CUT LENGTH, ANGLE, # OF PIECES SPEED
- MACHINE WILL MONITOR JOBS FOR ACCURACY
- STORES UP TO 99 CUTTING PROGRAMS
- EACH PROGRAM CAN HAVE 100 STEPS
- LENGTH AND CUTTING ANGLE FOR EACH STEP

CUTTING CAPACITY AT 0 DEGREES
- 13" ROUND
- 13" X 20" RECTANGULAR
- 13" X 13" SQUARE

CUTTING CAPACITY AT 45 DEGREES
- 12-1/2" ROUND
- 10-1/4" X 13-1/2" RECTANGULAR
- 10-1/4" X 10-1/4" SQUARE

CUTTING CAPACITY AT 60 DEGREES
- 9" ROUND
- 6-1/4" X 9" RECTANGULAR
- 6-1/4" X 6-1/4" SQUARE

BUNDLE CAPACITY
- 8" X 16-1/8" RECTANGLE

13' 6" X 1-1/4" X 0.042" BLADE
52-394 FPM VARIABLE BLADE SPEED
39.37" STROKE
4 HP SAW MOTOR, 220 OR 440 VOLTS, 3 PHASE
24 VOLT CONTROL VOLTAGE

STANDARD FEATURES AND EQUIPMENT
- SCRAP OPTIMIZATION SOFTWARE
- INVERTER CONTROLLED INFINITELY VARIABLE SPEED

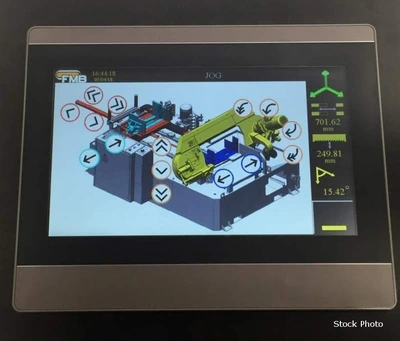

- EASY-TO-USE TOUCH-SCREEN CONTROL FOR JOB SETUP
- HEAVY-DUTY, TORSION-FREE SAW HEAD
- ROTATION OF SAW HEAD IS FULLY PROGRAMMABLE
- BLADE BREAKAGE SWITCH
- BLADE ROTATION SENSOR
- DIRECT DRIVE REDUCTION GEAR BOX
- HYD BLADE FEED SYSTEM CONTROLS PRESSURE RATE
- BLADE GUIDE SYSTEM W/ROLLER AND CARBIDE GUIDES
- MATERIAL INDEXED TO LENGTH BY HYD GRIPPER VISE

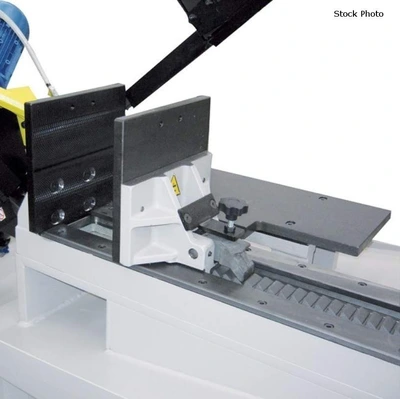

- SELF-CENTERING VISES
- +/- 0.004" INDEX SYSTEM ACCURACY
- CLAMPING VISES ON A RACK SYSTEM W/HYD CYLINDER

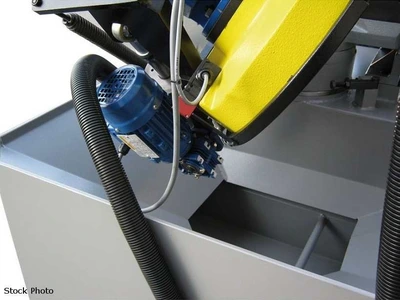

- LARGE CHIP COLLECTION PAN
- BLADE BRUSH
- CNC CONTROL WITH SELF-DIAGNOSTIC FEATURES

OPTIONS AVAILABLE - PRICE ON REQUEST
- SPRAY MIST SAW BLADE LUBRICATION
- DIGITAL DISPLAY OF THE CUTTING ANGLE
- VISE PRESSURE REGULATION (ADJUSTABLE CLAMPING)
- VERTICAL BUNDLE CLAMP
- CHIP CONVEYOR
- CONVEYORS
Power: 220/440 (3-Phase)
