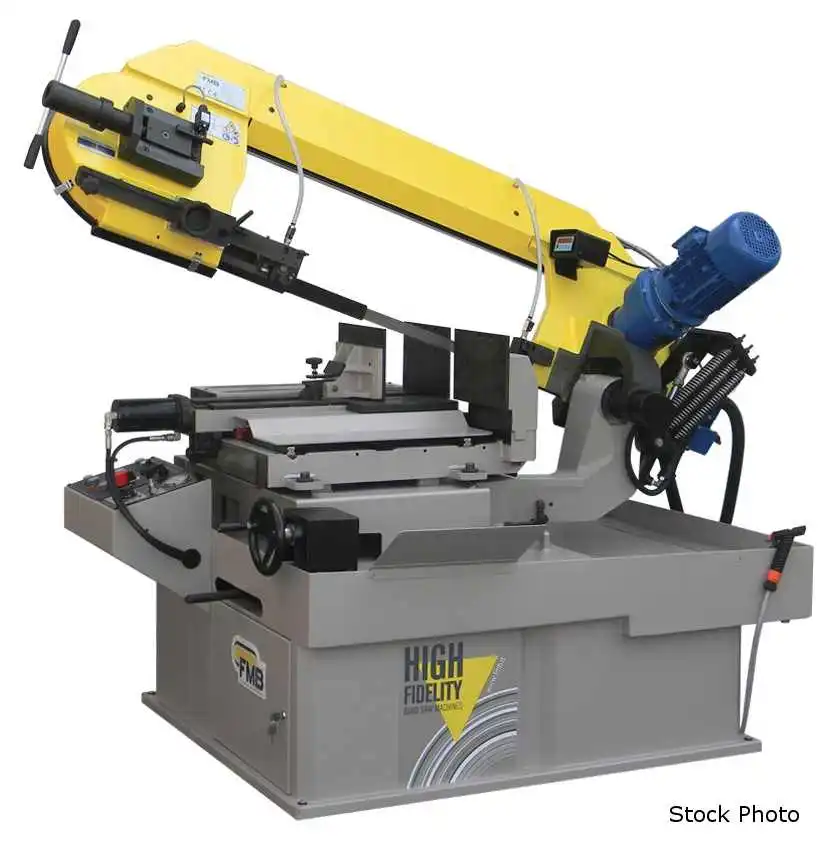

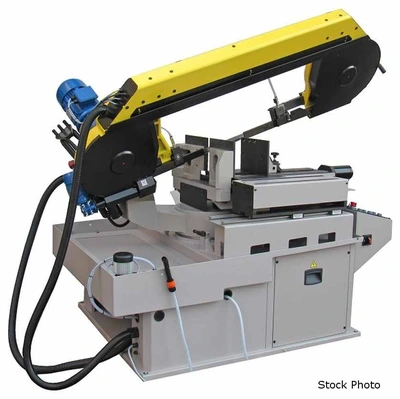

NEW PAT MOONEY FMB PEGASUS DS

PAT MOONEY (NEW) MODEL FMB PEGASUS DS
SEMI-AUTOMATIC BANDSAW

14' 8" X 1-1/4" X 0.042" BLADE
52-394 FPM VARIABLE BLADE SPEED
4 HP, 220 OR 440 VOLT, 3 PHASE SAW MOTOR
24 VOLT CONTROL VOLTAGE

CAPACITY AT 0 DEGREES
- 13" ROUND
- 13" X 20" RECTANGLE
- 13" X 13" SQUARE

CAPACITY AT 45 DEGREES RIGHT
- 13" ROUND
- 10" X 14-1/2" RECTANGLE
- 13" X 13" SQUARE

CAPACITY AT 60 DEGREES RIGHT
- 8-3/4" ROUND
- 5" X 9" RECTANGLE
- 8-3/4" X 8-3/4" SQUARE

CAPACITY AT 45 DEGREES LEFT
- 13" ROUND
- 12-1/2" X 10-5/8" RECTANGLE
- 10-5/8" X 10-5/8" SQUARE

CAPACITY AT 60 DEGREES LEFT
- 7" ROUND
- 7" X 6" RECTANGLE
- 6-1/4" X 6-1/4" SQUARE

BUNDLE CAPACITY
- 8" X 19" RECTANGLE

STANDARD FEATURES AND EQUIPMENT
- SEMI-AUTO OPERATION W/HYD SAW HEAD CLAMPING
- INVERTER CONTROLLED INFINITELY VARIABLE SPEED
- DIGITAL ANGLE DISPLAY
- ANGLE POSITION EASY ADJUSTED BY HAND WHEEL
- POSITIVE HYDRAULIC CUTTING PRESSURE
- AUTO RETURN AFTER THE CUTTING CYCLE
- SWIVEL HEAD WITH DIGITAL DISPLAY OF CUT ANGLE
- SAW HEAD ROTATES ON RACK AND PINION
- HEAVY-DUTY MACHINE BASE WITH LOCKING CABINET

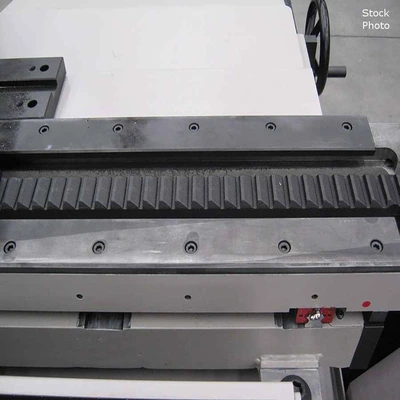

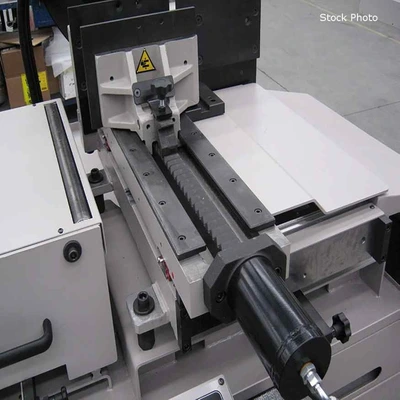

- VISE IS POSITIONED VIA LINEAR GUIDE AND RAIL
- INFEED TABLE SUPPORT
- MECHANICAL BLADE TENSION WITH INDICATOR
- PRECISION CARBIDE BLADE GUIDES W/ROLLER GUIDES
- SAW DRIVE VIA GEAR REDUCTOR
- CASE HARDENED AND GROUND HELICAL GEARS
- FLOOD COOLANT SYSTEM
- FAST APPROACH
- COBALT BANDSAW BLADE
- OPERATING MANUAL

OPTIONS AVAILABLE - PRICE ON REQUEST
- LASER LIGHT FOR THE CUT LINE
- SPRAY MIST SAW BLADE LUBRICATION
- DIGITAL DISPLAY OF THE CUTTING ANGLE
- VISE PRESSURE REGULATION (ADJUSTABLE CLAMPING)
- VERTICAL BUNDLE CLAMPING (MODELS W/HYD CLAMP)
- CONVEYORS AND LENGTH STOPS
Power: 220/440 (3-Phase)
