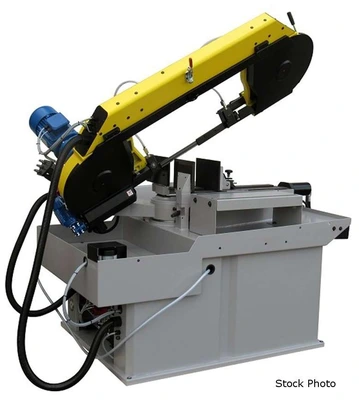

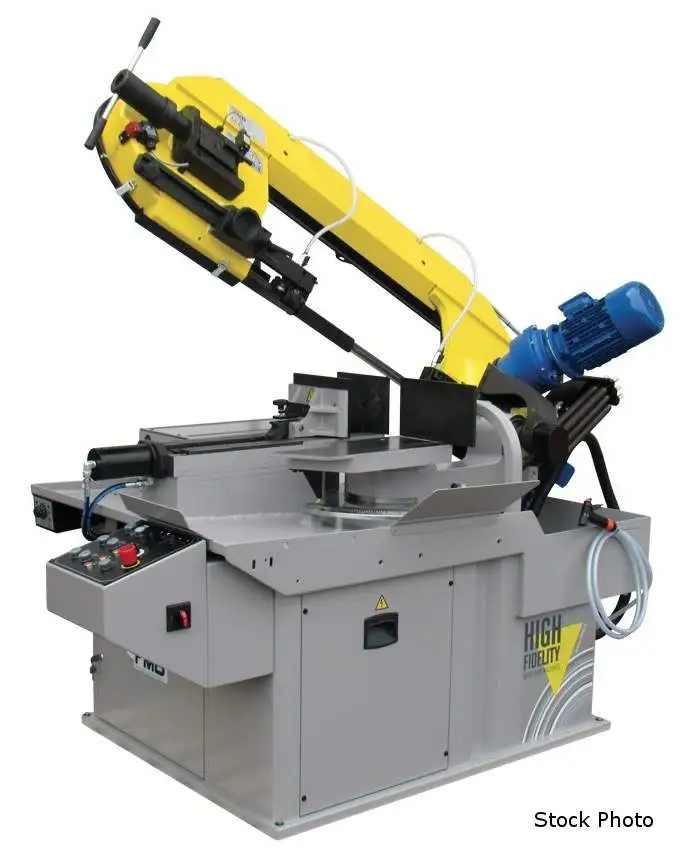

NEW PAT MOONEY FMB PEGASUS

PAT MOONEY (NEW) MODEL FMB PEGASUS SEMI-AUTOMATIC
BANDSAW

13' 6" X 1-1/4" X 0.042" BLADE
52-394 FPM VARIABLE BLADE SPEED
4 HP SAW MOTOR
220 VOLT/3 PHASE, 440 VOLT/3 PHASE, 220 V/1 PHASE
24 VOLT CONTROL VOLTAGE

CAPACITY AT 0 DEGREES
- 13" ROUND
- 13" X 20" RECTANGLE
- 13" X 13" SQUARE

CAPACITY AT 45 DEGREES
- 13" ROUND
- 10" X 14-1/2" RECTANGLE
- 13" X 13" SQUARE

CAPACITY AT 60 DEGREES
- 9-1/2" ROUND
- 6-1/4" X 9" RECTANGLE
- 6-1/4" X 6-1/4" SQUARE

BUNDLE CAPACITY
- 8" X 19" RECTANGLE

STANDARD FEATURES AND EQUIPMENT
- HYDRAULIC SAW HEAD AND CLAMPING
- INVERTER-CONTROLLED INFINITELY VARIABLE SPEED

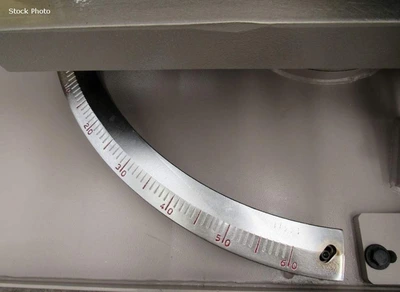

- SWIVEL SAW HEAD WITH PRECISION PROTRACTOR
- HEAVY-DUTY MACHINE BASE WITH LOCKING CABINET

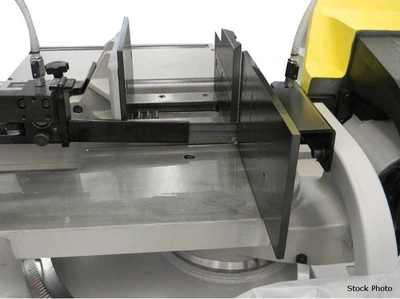

- HYDRAULIC VISE
- POSITIVE HYDRAULIC DOWNFEED OF BLADE
- AUTO RETURN HEIGHT ADJUSTMENT OF SAW HEAD
- MECHANICAL BLADE TENSION WITH INDICATOR
- PRECISION CARBIDE BLADE GUIDES W/ROLLER GUIDES
- SAW DRIVE VIA GEAR REDUCTOR
- CASE HARDENED AND GROUND HELICAL GEARS
- FLOOD COOLANT SYSTEM
- FAST APPROACH
- FMB COBALT BANDSAW BLADE

OPTIONS AVAILABLE - PRICE ON REQUEST
- 220 VOLTS, 1 PHASE, VARIABLE SPEED
- LASER LIGHT FOR THE CUT LINE
- SPRAY MIST SAW BLADE LUBRICATION
- DIGITAL DISPLAY OF THE CUTTING ANGLE
- VISE PRESSURE REGULATION (ADJUSTABLE CLAMPING)
- VERTICAL BUNDLE CLAMPING (MODELS W/HYD CLAMP)
- CONVEYORS AND LENGTH STOPS
Power: 220/440 (3-Phase)
