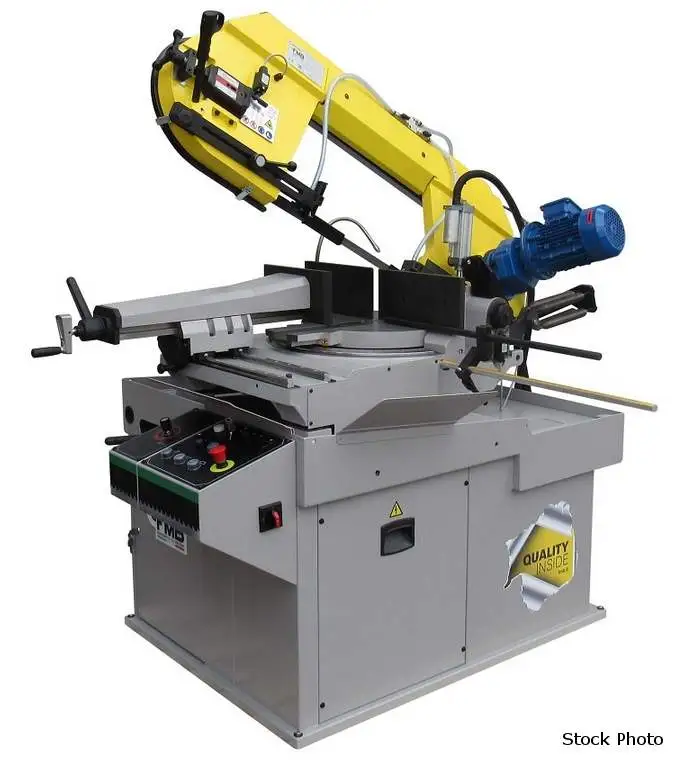

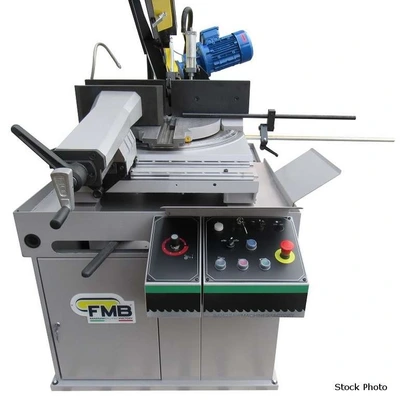

NEW PAT MOONEY FMB SATURN GV

PAT MOONEY (NEW) MODEL FMB SATURN GV DOUBLE MITER
BANDSAW

FMB BAND SAWS COMBINE THE ADVANTAGES OF
- CIRCULAR COLD SAW
- SPEED OF AN ABRASIVE SAW
- CAPACITY OF A TRADITIONAL BAND SAW

11' 3" X 1" X 0.035" BLADE
52-328 FPM VARIABLE BLADE SPEEDS
23" LENGTH STOP
2 HP SAW MOTOR WITH
- 220 OR 440 VOLTS, 3 PHASE
- 24 VOLT CONTROL VOLTAGE

CAPACITY AT 0 DEGREES
- 12" ROUND
- 12" X 14-3/4" RECTANGLE
- 12" X 12" SQUARE

CAPACITY AT 45 DEGREES RIGHT
- 10-1/4" ROUND
- 6" X 10-1/4" RECTANGLE
- 8-3/4" X 12" RECTANGLE
- 9-1/2" X 9-1/2" SQUARE

CAPACITY AT 60 DEGREES RIGHT
- 6-3/4" ROUND
- 6-1/4" X 6-3/4" RECTANGLE
- 10-1/2" X 6" RECTANGLE
- 6-1/4" X 6-1/4" SQUARE

CAPACITY AT 45 DEGREES LEFT
- 11" ROUND
- 7" X 11" RECTANGLE
- 12" X 9-5/8" RECTANGLE
- 10" X 10" SQUARE

STANDARD FEATURES AND EQUIPMENT
- GRAVITY FEED
- INVERTER CONTROLLED INFINITELY VARIABLE SPEED
- VISE POSITIONS ON PRECISION LINEAR GUIDEWAYS
- REMOVABLE VISE
- SWIVEL SAW HEAD WITH PRECISION PROTRACTOR
- HEAVY-DUTY MACHINE BASE WITH LOCKING CABINET
- QUICK-ACTING CLAMP

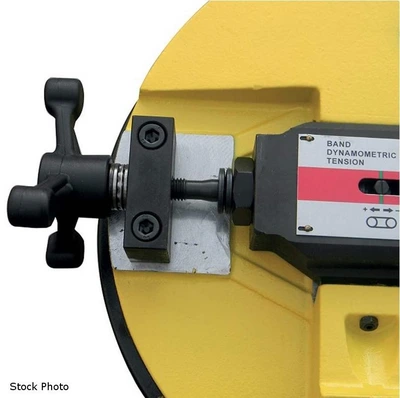

- MECHANICAL BLADE TENSION WITH INDICATOR
- PRECISION CARBIDE BLADE GUIDES W/ROLLER GUIDES
- SAW DRIVE VIA GEAR REDUCTOR
- CASE HARDENED AND GROUND HELICAL GEARS

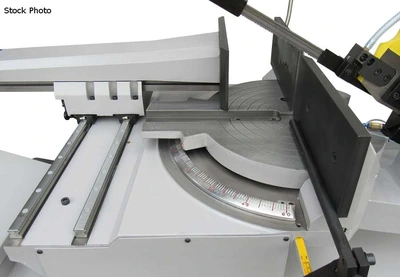

- VISE SLIDES ON LINEAR GUIDE RAILS
- FLOOD COOLANT SYSTEM
- COBALT BANDSAW BLADE
- OPERATING MANUAL

OPTIONS AVAILABLE - PRICE ON REQUEST
- 220 VOLTS, 1 PHASE, VARIABLE SPEED
- LASER LIGHT FOR THE CUT LINE
- SPRAY MIST SAW BLADE LUBRICATION
- DIGITAL DISPLAY OF THE CUTTING ANGLE
- CONVEYORS AND LENGTH STOPS
Power: 220/440 (3-Phase)
