NEW PAT MOONEY FMB ORION G

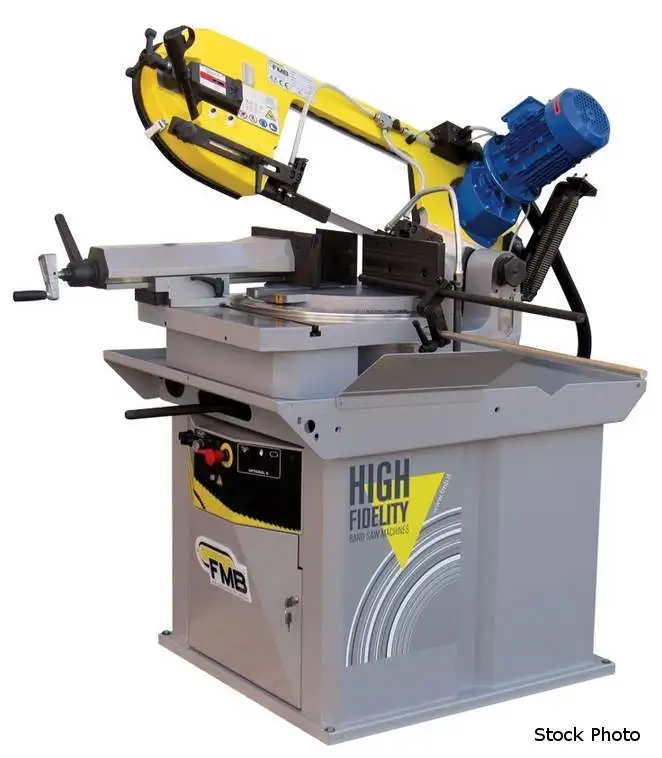

PAT MOONEY (NEW) MODEL FMB ORION G MITER BAND SAW

FMB BAND SAWS COMBINE THE ADVANTAGES OF
- CIRCULAR COLD SAW
- SPEED OF AN ABRASIVE SAW
- CAPACITY OF A TRADITIONAL BAND SAW

G MODEL WITH HYDRAULIC CUTTING CONTROL ALLOWS
- PULL DOWN FOR FAST SAWING AND OPERATION ON
LIGHT JOBS
- HYD DOWNFEED FOR HEAVY TUBES, PROFILES SOLIDS
- WALKING AWAY WHILE THE MACHINE CUTS SHUT OFF

8' 10" X 1" X 0.035" BLADE SIZE
115 AND 230 FPM BLADE SPEEDS
23" LENGTH STOP
1.75 HP SAW MOTOR WITH
- 220 OR 440 VOLTS, 3 PHASE

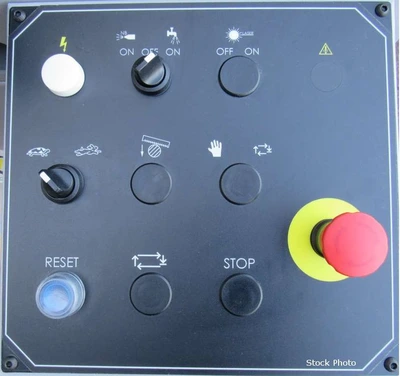

- 24 VOLT CONTROL VOLTAGE

CAPACITY @ 90 DEGREES
- 9-1/2" ROUND
- 8" X 12" RECTANGLE
- 9-1/2" X 10-5/8" RECTANGLE
- 9-1/2" X 9-1/2" SQUARE

CAPACITY @ 45 DEGREES RIGHT
- 6-7/8" ROUND
- 9-3/8" X 6" RECTANGLE
- 6-5/8" X 6-5/8" SQUARE

CAPACITY @ 60 DEGREES RIGHT
- 4-1/3" ROUND
- 5-1/2" X 4" RECTANGLE
- 4" X 4" SQUARE

CAPACITY @ 45 DEGREES LEFT
- 6" ROUND
- 5" X 5-5/8" RECTANGLE
- 9-3/8" X 2-1/2" RECTANGLE
- 5-1/3" X 5-1/3" SQUARE

STANDARD FEATURES AND EQUIPMENT
- STANDARD WITH GRAVITY FEED
- PRECISION T-SLOT FOR VISE POSITIONING

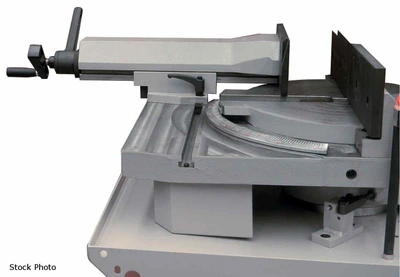

- REMOVABLE VISE

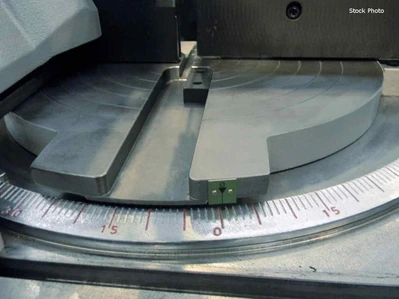

- SWIVEL SAW HEAD WITH PRECISION PROTRACTOR
- HEAVY-DUTY MACHINE BASE WITH LOCKING CABINET
- QUICK-ACTING CLAMP

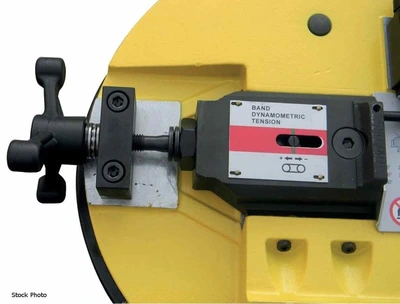

- MECHANICAL BLADE TENSION WITH INDICATOR

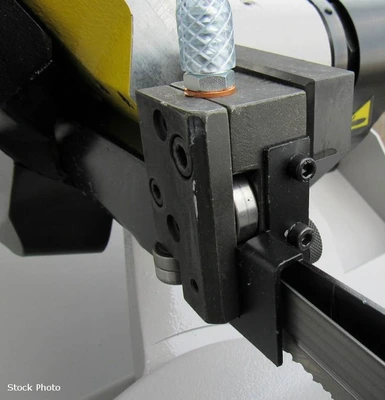

- PRECISION CARBIDE BLADE GUIDES W/ROLLER GUIDES
- SAW DRIVE VIA GEAR REDUCTOR
- CASE HARDENED AND GROUND HELICAL GEARS
- FLOOD COOLANT SYSTEM
- 2-SPEED MOTOR
- FMB COBALT BANDSAW BLADE
- OPERATING MANUAL

OPTIONS AVAILABLE - PRICE ON REQUEST
- 110 VOLT, 1 PHASE, 1 SPEED (230 FPM)
- LASER LIGHT FOR THE CUT LINE
- SPRAY MIST SAW BLADE LUBRICATION
- DIGITAL DISPLAY OF THE CUTTING ANGLE
- CONVEYORS AND LENGTH STOPS
Power: 220/440 (3-Phase)
