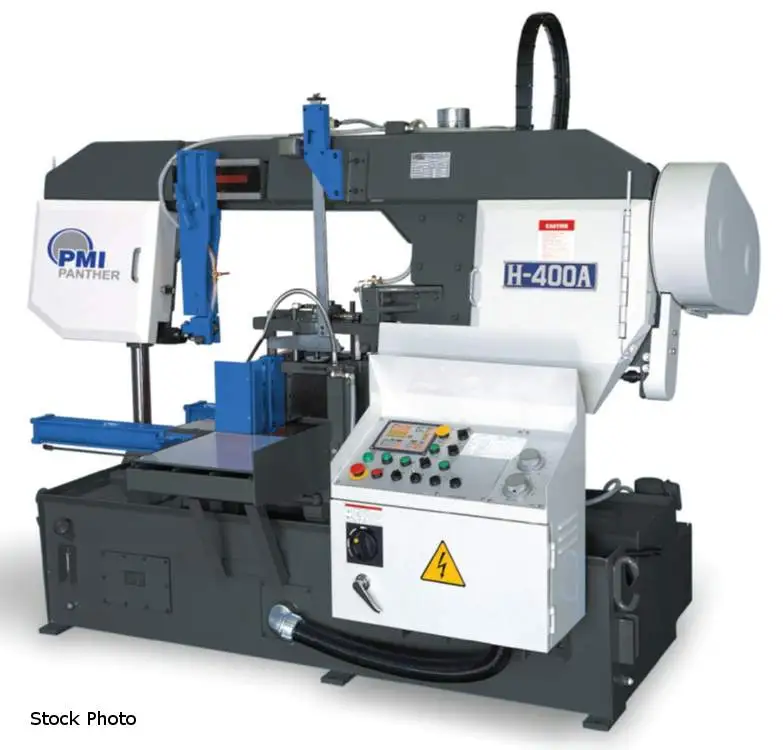

NEW PAT MOONEY PMI PANTHER H-400A

PAT MOONEY (NEW) MODEL PMI PANTHER H-400A NC
CONTROLLED FULLY AUTOMATIC HORIZONTAL DOUBLE
COLUMN BANDSAW

CUTTING CAPACITY
- 16" ROUND
- 16" X 16" SQUARE
- 9" X 12-5/8" BUNDLE
15' X 1-1/4" X 0.042" SAW BLADE
65 TO 260 FPM VARIABLE SPEED
7.5 HP SAW BLADE MOTOR
1 HP HYDRAULIC MOTOR
1/8 HP COOLANT MOTOR

EQUIPPED WITH
- 7' ROLLER TABLE
- BI-METAL BLADE

STANDARD EQUIPMENT
- NC TOUCHSCREEN CONTROL FOR SETTING
CUT LENGTH
NUMBER OF CUTS ON MULTIPLE JOBS
PROGRAM STORAGE
- HYDRAULIC SPLIT FRONT VISE
- INVERTER CONTROLLED INFINITELY VARIABLE SPEED
- HYDRAULIC FEED RATE FEED PRESSURE ADJUSTMENT
- AMPLIFYING VALVE FOR AUTO-ADJUSTING FEED RATE
- AUTOMATIC CHIP CONVEYOR
- POWER-DRIVEN CHIP BRUSH
- MULTIPLE SHUTTLE STROKES
- IDLER WHEEL MOTION DETECTOR
- FLOATING SHUTTLE VISE SYSTEM
- OUT-OF-MATERIAL ALARM
- UNIQUE 2-WAY CARRIAGE VISE JAW
- WORK LIGHT AND SPRAY HOSE FOR CLEANING MACHINE
- AUTO HEAD-ELEVATION AND RAPID APPROACH
- FULL STROKE CYLINDER FOR FRONT AND REAR VISE
- AUTO KERF LOSS COMPENSATION

OPTIONS AVAILABLE - PRICE ON REQUEST
- VARIABLE VISE PRESSURE REGULATOR
- NESTING FIXTURE FOR BUNDLE CUTTING
- CUT DEVIATION DETECTION SYSTEM
- CUT DEPTH CONTROL
- INSTALLATION AND TRAINING
